Vanco EVRXDSC video extender receiver, 1920 x 1080

Visit AV Distribution & Extenders
Free Delivery
£ 257 59
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

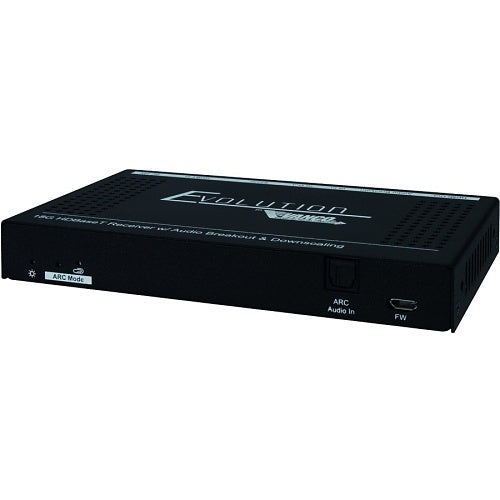

Vanco EVRXDSC is a video extender receiver.

Th Evolution by Vanco EVRXDSC 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232, allows extension of 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable. PoC (Power over Cable) allows the EVRXDSC to be powered over Cat6 from the matrix unit. For control, features IR pass-through to be able to control either sources and/or displays, as well as RS-232 pass-through for 3rd party integration.

Audio Return Channel (ARC) capable when utilizing with the PRO matrix units, passing audio from the connected displays via HDMI or via the optical input, and broken out at the matrix unit, with an additional optical audio port for audio extraction on the EVRXDSC itself. Able to downscale from 4K to 1080p, a perfect solution for multiple resolution displays, without downgrading the resolution on all outputs. The EVRXDSC is compatible with the Evolution EVMX4X3, EVMX8X6, EVMX44PRO, and EVMX88PRO matrix units.

The EVRXDSC is a step up from the EVRXHD2, with all the same features plus more, including RS-232 pass-through, ARC, audio extraction, and downscaling. Both receivers can be mixed and matched with compatible Evolution matrix units, resulting in a flexible and modular matrix switching system for any application! 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232

Supports HDMI resolutions up to 4K@60Hz, 4:4:4 chroma sampling and HDR

Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable

Ability to downscale 4K to 1080p

Audio extraction with digital optical audio breakout

Supports ARC with Evolution EVMX44PRO and EVMX88PRO matrix units via HDMI or digital optical audio input

18Gbps high bandwidth

Features Power over cable (POC) Technology, which provides power for the receivers resulting in easy installation

Bi-directional IR and RS-232 pass-through for control

Dimensions: 5.5" W x 0.8" H x 3.3" D

Key features

  • Supports HDMI resolutions up to 4Kat 60Hz, 4:4:4 chroma sampling and HDR
  • Extends 4Kat 60Hz 4:4:4, and HDR10 up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable
  • Ability to downscale 4K to 1080p
  • Audio extraction with digital optical audio breakout
  • Supports ARC with Evolution EVMX44PRO and EVMX88PRO matrix units via HDMI or digital optical audio input
  • 18Gbps high bandwidth
  • Features Power over cable (POC) Technology, which provides power for the receivers resulting in easy installation
  • Bi-directional IR and RS-232 pass-through for control

If you are matching this to an existing installation, work from the EVRXDSC part number rather than the description.

£ 257 59
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£257.59 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Vanco
Manufacturer Part Number
EVRXDSC
Product Type
Video Extender Receiver
Technical information
Cable Type
Category 6
Connectivity Technology
Wired
Maximum Operating Distance
70m
Media Type Supported
Twisted Pair
Number of Output Devices Supported
1
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Display & graphics
Maximum video resolution
1920 x 1080
Interfaces/ports
Network (RJ-45)
Yes
Number of HDMI Outputs
1
Number of Network (RJ-45) Ports
1
Number of USB Ports
1
Physical characteristics
Depth
83.82mm
Form Factor
Desktop
Height
20.32mm
Width
139.70mm
Video
Graphics Mode
Full HD
Miscellaneous
Package Contents
EVRXDSC Receiver 2 x Mounting Ears With Hardware 4 x Plastic Feet 1 x 3-pin Terminal Block For RS-232 Connection Product Manual
Attributes
Package Contents
EVRXDSC Receiver 2 x Mounting Ears With Hardware 4 x Plastic Feet 1 x 3-pin Terminal Block For RS-232 Connection Product Manual
Product Name
4K HDR HDBaseTTM R E C E I V E R with PoC, Downsacling, ARC, IR and RS-232
Specifications
Technical information
Certifications
Display & graphics
Interfaces/ports
Physical characteristics
Video
Miscellaneous
Attributes

Specifications

Brand Name Vanco
Manufacturer Part Number EVRXDSC
Product Type Video Extender Receiver

Technical information

Cable Type Category 6
Connectivity Technology Wired
Maximum Operating Distance 70m
Media Type Supported Twisted Pair
Number of Output Devices Supported 1

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Display & graphics

Maximum video resolution 1920 x 1080

Interfaces/ports

Network (RJ-45) Yes
Number of HDMI Outputs 1
Number of Network (RJ-45) Ports 1
Number of USB Ports 1

Physical characteristics

Depth 83.82mm
Form Factor Desktop
Height 20.32mm
Width 139.70mm

Video

Graphics Mode Full HD

Miscellaneous

Package Contents EVRXDSC Receiver 2 x Mounting Ears With Hardware 4 x Plastic Feet 1 x 3-pin Terminal Block For RS-232 Connection Product Manual

Attributes

Package Contents EVRXDSC Receiver 2 x Mounting Ears With Hardware 4 x Plastic Feet 1 x 3-pin Terminal Block For RS-232 Connection Product Manual
Product Name 4K HDR HDBaseTTM R E C E I V E R with PoC, Downsacling, ARC, IR and RS-232

Vanco EVRXDSC video extender receiver

Vanco EVRXDSC video extender receiver, 1920 x 1080

Who this is for

For the installer — this is the video extender receiver supplied under Vanco part number EVRXDSC. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a video extender receiver made by Vanco. The part number EVRXDSC is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this video extender receiver is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact video extender receiver I have been quoted? Check the manufacturer part number EVRXDSC against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against EVRXDSC answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Vanco EVRXDSC video extender receiver
Vanco

Vanco EVRXDSC video extender receiver, 1920 x 1080

£257.59

Please note: this is a non-returnable item (excluding faulty goods)

Vanco EVRXDSC is a video extender receiver.

Th Evolution by Vanco EVRXDSC 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232, allows extension of 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable. PoC (Power over Cable) allows the EVRXDSC to be powered over Cat6 from the matrix unit. For control, features IR pass-through to be able to control either sources and/or displays, as well as RS-232 pass-through for 3rd party integration.

Audio Return Channel (ARC) capable when utilizing with the PRO matrix units, passing audio from the connected displays via HDMI or via the optical input, and broken out at the matrix unit, with an additional optical audio port for audio extraction on the EVRXDSC itself. Able to downscale from 4K to 1080p, a perfect solution for multiple resolution displays, without downgrading the resolution on all outputs. The EVRXDSC is compatible with the Evolution EVMX4X3, EVMX8X6, EVMX44PRO, and EVMX88PRO matrix units.

The EVRXDSC is a step up from the EVRXHD2, with all the same features plus more, including RS-232 pass-through, ARC, audio extraction, and downscaling. Both receivers can be mixed and matched with compatible Evolution matrix units, resulting in a flexible and modular matrix switching system for any application! 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232

Supports HDMI resolutions up to 4K@60Hz, 4:4:4 chroma sampling and HDR

Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable

Ability to downscale 4K to 1080p

Audio extraction with digital optical audio breakout

Supports ARC with Evolution EVMX44PRO and EVMX88PRO matrix units via HDMI or digital optical audio input

18Gbps high bandwidth

Features Power over cable (POC) Technology, which provides power for the receivers resulting in easy installation

Bi-directional IR and RS-232 pass-through for control

Dimensions: 5.5" W x 0.8" H x 3.3" D
