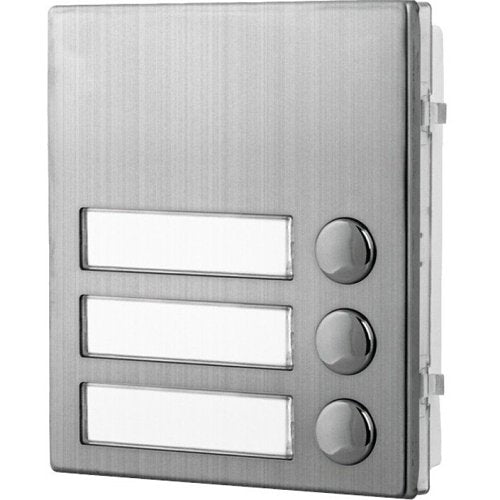

Videx 4843/M door station button module, Blue
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Videx 4843/M is a door station button module from the 4000 range.
4000 Series button expansion modules are used to achieve the required amount of call buttons for audio or audio / video door entry systems. Modules are available with 2, 3, 4 and 5-button.
Key features
- Robust tactile push buttons
- Blue backlit name plate windows
- 2, 3, 4, 5 button modules
If you are matching this to an existing installation, work from the 4843/M part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | 4843/M |
| Product Series | 4000 |
| Product Type | Door Station Button Module |
General information
| Application/Usage | Door |
|---|
Technical information
| Device Supported | Door Station |
|---|---|
| Number of Buttons | 3 |
Physical characteristics
| Colour | Blue |
|---|---|
| Depth | 30.00mm |
| Material | 316 Stainless Steel |
| Width | 103.00mm |
Product information
| Length | 120.00mm |
|---|
Miscellaneous
| Additional Information | No. of Buttons: 3 Button Isolation Jumpers (JP): JP: JP: 2C, 3C System Compatibility: Compatible with all systems except the IP video system Working Voltage: 12Vdc (for name plate illumination) P |
|---|
Attributes
| Compatibility | Compatible with all systems except the IP video system |
|---|---|
| Device Supported | Door Station |
| Additional Information | No. of Buttons: 3 Button Isolation Jumpers (JP): JP: JP: 2C, 3C System Compatibility: Compatible with all systems except the IP video system Working Voltage: 12Vdc (for name plate illumination) P |
