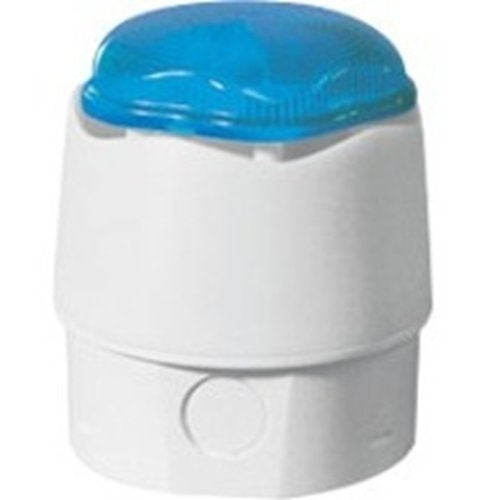

Vimpex 958CHX1800 security alarm, White
About this product
Vimpex 958CHX1800 is a security alarm from the CHX range.
The Banshee Excel Lite combines the aesthetics and performance of the Excel Sounder with either a very bright and efficient Xenon Beacon (CHX model) or a low-current LED Beacon (CHL model). The sounder is fitted with a professional capsule driven horn and comes with 32 user-selectable tones incorporating low frequencies, high frequencies, European, American and Australian norms and all industry-standard frequency patterns. Manufactured in flame retardant polymer, the units are available in a choice of base colours and up to 5 different lens colours, making it suitable for a range of fire and security dual notification applications as well as DDA-compliant installations.
All models use the push and twist bayonet fitting BansheeMT base. Tested and approved to EN 54 Part 3, the Banshee Excel Lite™ boasts leading acoustics, aesthetically pleasing design and low power consumption. The units are designed for ease of installation and are complemented by a wide selection of accessories to suit all applications.
Key features
- Available with either Xenon or LED Beacon with a red or white body
- Choice of lens colours (CHX: Red, Clear, Amber,Blue, Green / CHL: Red, Clear)
- Sounder has 32 user-selectable tones - industry standard compatible
- Very low current consumption
- EN 54-3 tested and fully approved in accordance with CPR
- VdS approved
- Easy to install with side and rear cable entry
- Robust 'two in two out' 2.5 mm2 terminals
- Choice of three volume levels
- Rated to IP66 or IP45
If you are matching this to an existing installation, work from the 958CHX1800 part number rather than the description.
-
Download
- 958CHX1800 — Product Manual
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Vimpex |
|---|---|
| Manufacturer Part Number | 958CHX1800 |
| Product Series | CHX |
| Product Type | Security Alarm |
General information
| Application/Usage | Fire, Industrial, Security |
|---|
Technical information
| Light Colour | Blue |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Flame Retardant |
| Lens Colour | Blue |
Power description
| Input Voltage | 30V DC |
|---|
Product information
| Bulb/Tube Type | Xenon |
|---|
Attributes
| Input Voltage | 30V DC |
|---|
