Yuasa NP7-12 12 V 7 Ah VRLA (AGM) Sealed Lead-Acid Battery NP7-12

Introduction to the Yuasa NP7-12 and its key features

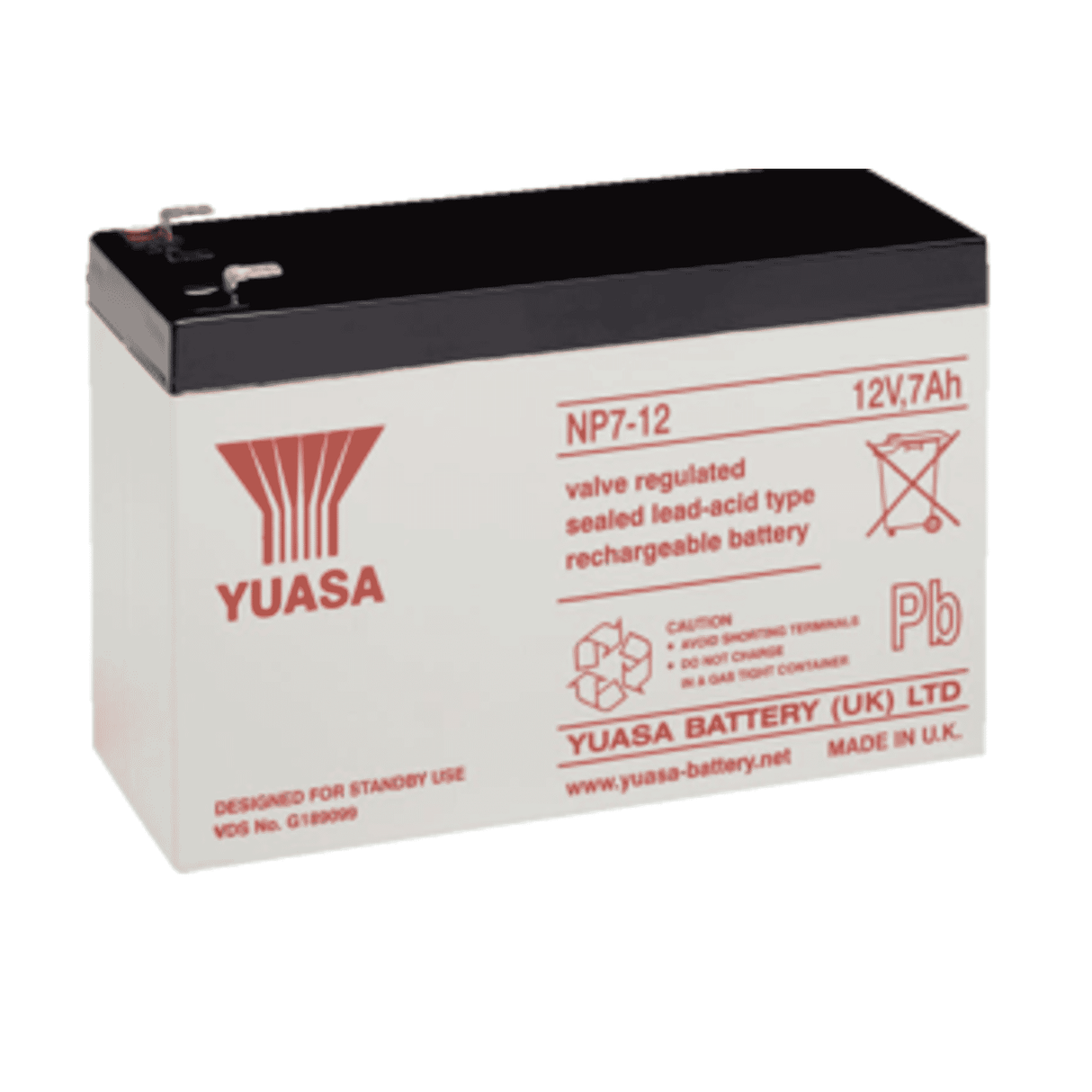

The Yuasa NP7-12 is a compact, maintenance‑free 12 V 7 Ah valve‑regulated lead‑acid (VRLA) battery built with absorbed glass mat (AGM) technology. Designed primarily for standby and light cyclic applications, this battery is a common choice for fire and security alarm panels, small UPS units, emergency lighting and other compact power installations. Its sealed construction, Faston (F1) quick‑connect terminals and a commercial design life rated at up to 3–5 years (EUROBAT) make the NP7‑12 a dependable option where reliable backup power and easy installation are important.

Detailed specifications and benefits

• Nominal voltage:12 V
• Capacity:7.0 Ah (20‑hr rate to 10.5 V @ 20°C); 6.4 Ah (10‑hr)
• Dimensions (L×W×H):151 × 65 × 97.5 mm (over terminals)
• Mass:2.2 kg
• Terminals:Faston F1 quick‑connect 4.75 mm (NP7‑12L variant uses wider 6.35 mm)
• Internal impedance:~23 mΩ (1 kHz)
• Pulse discharge capability:1 s = 210 A; 1 min = 48 A
• Recommended charge:Float 13.65 V ±1% (20°C); cyclic/boost 14.5 V ±3%
• Design life:Up to 5 years (EUROBAT commercial: 3–5 years)
• Case material:ABS (UL94:HB); FR (flame retardant) option available (UL94:V0)

• Sealed AGM construction:The recombination design keeps the battery maintenance‑free and largely leak‑free, making it suitable for in‑panel installation without routine topping up of electrolyte.
• Compact form factor:With modest dimensions and a 2.2 kg mass, the NP7‑12 fits most alarm boxes, small UPS compartments and emergency lighting housings.
• Faston terminals:The F1 quick‑connect tabs allow rapid, reliable connection using common crimp or push‑on connectors found on alarm and UPS wiring harnesses.
• Good pulse discharge:Low internal impedance and strong short‑duration discharge capability mean the battery can handle surge loads from alarm sirens, inverter inrush currents and brief high‑current events without significant voltage collapse.
• Charge flexibility:Clear float and cyclic charge recommendations support both standby (float) and occasional cyclic use cases; following charging guidance preserves capacity and service life.

Use cases and scenarios where the NP7-12 excels

The NP7‑12 is specifically suited to situations where reliable, compact standby power is needed and where maintenance access may be limited. Typical applications include:

• Fire and security panels:Many alarm control panels use 12 V 7 Ah batteries as the standard backup source. The NP7‑12’s size and terminals make field replacement straightforward.
• Small UPS systems:For desktop UPS units or network closet backup that require compact batteries, the NP7‑12 provides several minutes of runtime at modest power draw and can support graceful shutdowns during outages.
• Emergency lighting:Emergency luminaires and exit signs commonly require sealed batteries that can be mounted in small housings — the NP7‑12 fits this niche and provides enough capacity for the required test and emergency durations.
• Light cyclic applications:Where batteries are discharged and recharged moderately (for example, in portable test equipment or small solar/telemetry systems), the NP7‑12’s AGM chemistry and pulse capability are advantageous.
• Retail and telecom gear:Small routers, network switches and point‑of‑sale hardware that call for brief backup windows benefit from a reliable sealed battery that doesn’t need regular maintenance.

Comparisons with similar products on the market

The 12 V 7 Ah class is a common form factor offered by many battery manufacturers. When comparing the Yuasa NP7‑12 to other 12V 7Ah sealed AGM batteries, consider these practical differences:

• Build quality and manufacturer reputation:Yuasa is an established battery maker with a long history in industrial VRLA designs. That reputation can translate to consistent manufacturing tolerances and widely available datasheets and support.
• Terminals and variants:Not all 7 Ah batteries use the same Faston size. The NP7‑12 uses F1 (4.75 mm) which matches many alarm systems; some competitors use F2 (6.35 mm) or screw terminals. Choosing the correct terminal type avoids adaptor issues on installation.
• Design life and ratings:EUROBAT commercial ratings are a useful reference; the NP7‑12’s 3–5 year commercial life is typical for this class. Some competitors may advertise longer or shorter life depending on chemistry tweaks or higher quality grades, which will affect cost.
• Pulse and internal resistance:Low internal impedance and strong short‑term current capability are strengths for the NP7‑12. Competing models vary; applications requiring frequent high inrush handling should compare pulse specs.
• Case and flame retardance:The availability of an FR (UL94:V0) case option can be important for installations subject to strict fire codes; not all rivals offer the same case material options.
• Price and warranty:Price is often a deciding factor — the suggested retail for the NP7‑12 is in the mid‑range for 7 Ah units. Warranty terms vary by supplier; note that this listing indicates no manufacturer warranty included (warranty=0), so check vendor policies when purchasing.

Safety, installation and charging guidance

Key safety considerations for the NP7‑12 follow standard VRLA battery precautions: avoid short circuits, connect with correct polarity, and provide adequate ventilation during charging. The sealed AGM design minimises gas emission under normal use, but correct charging voltages and temperature compensation are important to preserve life. Recommended float voltage at 20°C is 13.65 V (±1%), and cyclic/boost charging is typically 14.5 V (±3%). Observe manufacturer datasheet limits for cyclic charge current (boost/cyclic limit 1.75 A) and installation orientation guidance (not intended for permanent inverted mounting).

Conclusion — why choose the Yuasa NP7-12?

The Yuasa NP7‑12 is a practical, well‑engineered choice for anyone needing compact standby or light cyclic power. Its sealed AGM construction, reliable pulse discharge capability, and common Faston terminals make it an easy fit for alarm panels, small UPS units and emergency lighting. Backed by Yuasa’s industrial expertise and clear charging specifications, it gives installers and end users predictable performance and straightforward serviceability. While many competitors exist in the 12 V 7 Ah market, the NP7‑12 strikes a balance of proven build quality, suitable electrical characteristics and compact dimensions that make it a go‑to option for routine backup power requirements.

If you’re specifying a battery for alarms, small UPS systems or emergency luminaires and you need a maintenance‑free, compact sealed battery with solid short‑term current capability, the Yuasa NP7‑12 is worth considering. Be sure to review the official Yuasa NP7‑12 datasheet for detailed charging, temperature and installation guidance and to confirm compatibility with your equipment and warranty expectations.
