CDVI SELW-R433 wiegand wireless receiver, 1

£ 115 95
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

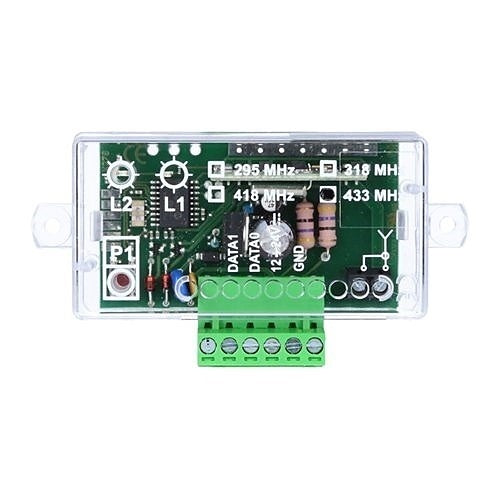

CDVI SELW-R433 is a wiegand wireless receiver from the SELW range.

This receiver is equipped with a 26-bit Wiegand output, making it easy to connect it to online access control systems. With a compact design and compatibility with all TX26 Series transmitters, the SELW-R433 is a handy and versatile addition to many systems. It is ideal for incorporating automatic doors, gates, barriers, or lights into your access control system.

Key features

  • Wiegand 26-bit radio receiver
  • Single channel Wiegand output
  • Up to 100m range in open field
  • Optional tuned antenna for enhancing the sensitivity of the receiver
  • Compatible with all TX26 Series transmitters

If you are matching this to an existing installation, work from the SELW-R433 part number rather than the description.

£ 115 95
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£115.95 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
CDVI
Manufacturer Part Number
SELW-R433
Product Series
SELW
Product Type
Gate Transmitter
General information
Application/Usage
Commercial, Gate, Industrial, Public Building
Packaged Quantity
1
Interfaces/ports
Wiegand
Yes
Miscellaneous
Additional Information
Power requirements: 12 or 24V (AC or DC)
Compatibility
2-Channel Mini Transmitters SETR2641AM2R, SETR2641AM2B, SETR2641AM2C, SETR2641AM2N, 2-Channel Transmitters S2TR2641E2, 2-Channel Ultra-Thin Transmitters S5TR2641E2S, 4-Channel Transmitters S2TR2641E4, 4-Channel Ultra-Thin Transmitters S5TR2641E4S
Features
Aerial avaiable to enhance sensitivity, Transparent polycarbonate enclosure, Wiegand output
Physical characteristics
Colour
Clear
Depth
45.00mm
Height
28.00mm
Material
Polycarbonate
Weight
0.07kg
Width
105.00mm
Power description
Input Voltage
12V AC, 12V DC, 24V AC, 24V DC
Power Source
AC Power, DC Power
Product information
Mount Type
Surface Mount
Operating Frequency
433.92MHz
Technical information
Connectivity Technology
Wireless
Identification Method
Contactless Card (RFID/Proximity)
Maximum Operating Distance
100m
Number of Buttons
1
Number of Channels
1
Wireless Technology
RF
Attributes
Compatibility
2-Channel Mini Transmitters SETR2641AM2R, SETR2641AM2B, SETR2641AM2C, SETR2641AM2N, 2-Channel Transmitters S2TR2641E2, 2-Channel Ultra-Thin Transmitters S5TR2641E2S, 4-Channel Transmitters S2TR2641E4, 4-Channel Ultra-Thin Transmitters S5TR2641E4S
Input Voltage
12V AC, 12V DC, 24V AC, 24V DC
Power Source
AC Power, DC Power
Weight
0.07kg

Specifications

Brand Name CDVI
Manufacturer Part Number SELW-R433
Product Series SELW
Product Type Gate Transmitter

General information

Application/Usage Commercial, Gate, Industrial, Public Building
Packaged Quantity 1

Interfaces/ports

Wiegand Yes

Miscellaneous

Additional Information Power requirements: 12 or 24V (AC or DC)
Compatibility 2-Channel Mini Transmitters SETR2641AM2R, SETR2641AM2B, SETR2641AM2C, SETR2641AM2N, 2-Channel Transmitters S2TR2641E2, 2-Channel Ultra-Thin Transmitters S5TR2641E2S, 4-Channel Transmitters S2TR2641E4, 4-Channel Ultra-Thin Transmitters S5TR2641E4S
Features Aerial avaiable to enhance sensitivity, Transparent polycarbonate enclosure, Wiegand output

Physical characteristics

Colour Clear
Depth 45.00mm
Height 28.00mm
Material Polycarbonate
Weight 0.07kg
Width 105.00mm

Power description

Input Voltage 12V AC, 12V DC, 24V AC, 24V DC
Power Source AC Power, DC Power

Product information

Mount Type Surface Mount
Operating Frequency 433.92MHz

Technical information

Connectivity Technology Wireless
Identification Method Contactless Card (RFID/Proximity)
Maximum Operating Distance 100m
Number of Buttons 1
Number of Channels 1
Wireless Technology RF

Attributes

Compatibility 2-Channel Mini Transmitters SETR2641AM2R, SETR2641AM2B, SETR2641AM2C, SETR2641AM2N, 2-Channel Transmitters S2TR2641E2, 2-Channel Ultra-Thin Transmitters S5TR2641E2S, 4-Channel Transmitters S2TR2641E4, 4-Channel Ultra-Thin Transmitters S5TR2641E4S
Input Voltage 12V AC, 12V DC, 24V AC, 24V DC
Power Source AC Power, DC Power
Weight 0.07kg

CDVI SELW-R433 wiegand wireless receiver

CDVI SELW-R433 wiegand wireless receiver, 1

Who this is for

For the installer — this is the wiegand wireless receiver supplied under CDVI part number SELW-R433. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a wiegand wireless receiver made by CDVI. The part number SELW-R433 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this wiegand wireless receiver is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact wiegand wireless receiver I have been quoted? Check the manufacturer part number SELW-R433 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against SELW-R433 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
