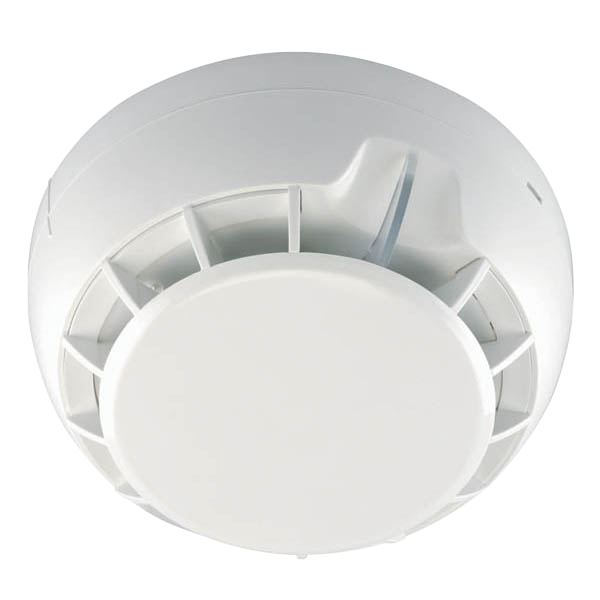

ESP FHD212 Fixed Temperature Heat Detector, 12V
£
13
26
(Incl. VAT)
3 Years Warranty
Fixed Temperature Heat Detector, 12V
About this product
About this product
The ESP FHD212 is a Fixed Temperature Heat Detector, 12V.
Key Features
- Fixed heat detector
- Detects temperatures over 60°C, class A2/S
- Digital processing algorithm
- Low profile design
- Genuine ESP temperature heat detector supplied by WME
-
Download
- FHD212 Tech Sheet
£
13
26
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø102 x 48 (Including Base)
Colour
White
Materials
Housing: ABS
Test Facility
Heat Source
Class
A2/S
Weight (Kg)
0.16 (Including Base)
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Current @ 12V (mA)
29
Cable Size (mm²)
0.4 - 2.0
Standby Current @ 12V (µA)
<50
Wiring Type
12V Conventional
Relay Types
Volt-Free Double Pole Single Throw (DPST)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Dimensions
Dimensions (mm)
ø102 x 48 (Including Base)
Specifications
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Test Facility | Heat Source |
| Class | A2/S |
| Weight (Kg) | 0.16 (Including Base) |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Current @ 12V (mA) | 29 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Standby Current @ 12V (µA) | <50 |
| Wiring Type | 12V Conventional |
| Relay Types | Volt-Free Double Pole Single Throw (DPST) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
Dimensions
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|
Fixed Temperature Heat Detector, 12V features
ESP FHD212 Fixed Temperature Heat Detector, 12V
