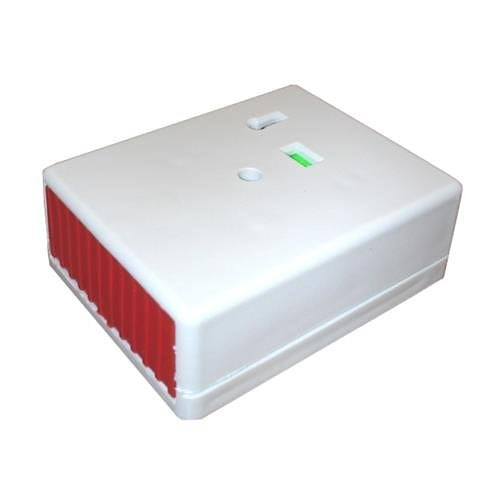

Knight Fire & Security KP1 push panic button, White

£ 4 39
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Knight Fire & Security KP1 is a push panic button from the KP range.

A basic, single end-push panic button. Screw wiring points inside provide alarm/tamper connections as well as 2x spare terminals. EOL resistors can easily be added to this product in situ, providing a supervised circuit where necessary.

This unit is latching and must be reset with the provided key after activation. Spare keys are available as code KEY10. Switching method is by reed/magnet for discreet operation, with a central flag indicator to show the activation state at a glance.

Key features

  • 6-Screw (2x Switch, 2x Tamper, 2x Spare)
  • Reed Operation
  • Leaf Tamper
  • Made in UK
  • Environmental Class II

If you are matching this to an existing installation, work from the KP1 part number rather than the description.

£ 4 39
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4.39 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
KP1
Product Series
KP
Product Type
Panic Button
General information
Application/Usage
Panic Alarm
Technical information
Button Size
57.0mm
Connectivity Technology
Wired
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
SBSC Certified
No
TIA Listed
No
VdS Certified
No
Physical characteristics
Colour
White
Depth
29.00mm
Height
91.00mm
Material
Plastic
Width
63.50mm
Power description
Input Voltage
125V AC
Product information
Mount Type
Surface Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Indoor or outdoor use
Indoor
Package Contents
KP1 Mortise Key Switch Anti-Tamper Screws Bi-Color LED Indicator 2 x Keys Backbox
Attributes
Input Voltage
125V AC
Package Contents
KP1 Mortise Key Switch Anti-Tamper Screws Bi-Color LED Indicator 2 x Keys Backbox

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number KP1
Product Series KP
Product Type Panic Button

General information

Application/Usage Panic Alarm

Technical information

Button Size 57.0mm
Connectivity Technology Wired

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
SBSC Certified No
TIA Listed No
VdS Certified No

Physical characteristics

Colour White
Depth 29.00mm
Height 91.00mm
Material Plastic
Width 63.50mm

Power description

Input Voltage 125V AC

Product information

Mount Type Surface Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)
Indoor or outdoor use Indoor
Package Contents KP1 Mortise Key Switch Anti-Tamper Screws Bi-Color LED Indicator 2 x Keys Backbox

Attributes

Input Voltage 125V AC
Package Contents KP1 Mortise Key Switch Anti-Tamper Screws Bi-Color LED Indicator 2 x Keys Backbox

Knight Fire & Security KP1 push panic button

Knight Fire & Security KP1 push panic button, White

Who this is for

For the installer — this is the push panic button supplied under Knight Fire & Security part number KP1. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a push panic button made by Knight Fire & Security. The part number KP1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this push panic button is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact push panic button I have been quoted? Check the manufacturer part number KP1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Documentation is attached to this listing, but the check did not confirm that it names this exact part number. It is attached as the supplier's document for this row, and no claim on this page rests on it.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against KP1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
