The Complete UK CCTV Installation Guide: Kit, Costs & Laws (2026)

Here's the short answer, because nobody enjoys scrolling for it: yes, you can install your own CCTV. A proper wired 4K system for a typical UK home costs £500–£900 in kit, takes a weekend, and the only law you really need to think about kicks in the moment your cameras can see past your own boundary.

Now the longer answer — because the difference between CCTV that gets a conviction and CCTV that records a blurry hood disappearing over your fence comes down to about five decisions. Most people get at least two of them wrong.

We've been supplying security installers from our Birmingham trade counter since 1975, which means we've heard every one of those mistakes described at close range — usually with some colourful language. This guide walks you through all five decisions: the kit we'd actually put on the counter, where to point it, what the professionals charge, and how to stay on the right side of the ICO.

1. Wired or Wireless? The Argument, Settled in 60 Seconds

Wireless cameras are brilliant at one thing: being easy to fit. And that's roughly where it ends.

Batteries need charging in January, on a ladder, in the rain. Wi-Fi drops exactly when you need footage most. And a determined intruder can defeat some wireless systems with a £20 gadget bought online.

A wired IP system has none of these problems — and thanks to PoE (Power over Ethernet), it's far easier to install than most people think. One cable per camera carries both power and footage back to your recorder. No electrician. No power sockets in the loft. One cable, one hole, done.

Our position after fifty years of this: if you're getting the drill out anyway, drill for wired. Your footage will still be recording — in 4K, every second of every night — ten years from now.

The next question is what to actually buy. This is where the money gets wasted.

2. The Kit List: Three Things, Not Thirty

The camera

The Hikvision DS-2CD2H86G2-IZS 8MP AcuSense Turret gives you 4K resolution and a motorised 2.8–12mm lens — which means you can zoom and reframe the shot after it's on the wall, from your phone, instead of going back up the ladder. AcuSense is Hikvision's on-camera AI: it tells a person from a cat, so your phone stops buzzing every time a fox crosses the drive.

Why a turret and not a dome? Domes suffer infrared glare at night, and turrets are easier to wipe clear of British spiders, who treat CCTV housings as premium real estate. If the budget's tight, the fixed-lens turrets in our IP CCTV cameras range start considerably cheaper.

The recorder

The Hikvision DS-7604NXI-K1/4P(D) 4-Channel AcuSense 4K NVR has four PoE ports built in — each camera plugs straight into the back, powers up, and starts recording. Add a surveillance-grade hard drive and you'll hold weeks of footage, with live view and playback from anywhere in the Hik-Connect app. And if four channels won't be enough, our full range of network video recorders goes up from there.

The cable

The unglamorous item everyone gets wrong. Indoor cable has a PVC sheath that cracks after a few British winters; the Mercury Cat6a Outdoor Network Cable (305m) has an LDPE outdoor sheath built for exactly that.

Trade tip: always run more cable than you think you need. The second-most-common return visit to our counter is for "another box of cable".

The most common return visit? Good kit pointed at the wrong things. Which brings us to placement.

3. Camera Placement: Cover Where Burglars Actually Go

Walk your boundary the way an intruder would. For most UK homes the priority list is: front door, driveway, side gate or passage, rear garden access. Three to four cameras covers the lot.

• Height: 2.4–3m at entrances. High enough to stop tampering, low enough to capture a face rather than the top of a cap. Save 4m mounting for wide driveway overviews.
• Angle across approaches, not straight down at doors. You want the face as they walk up — not the crown of a head as they arrive.
• Mind the sun. A camera staring into low winter sun gives you a silhouette. Angle away from the glare, or the footage from your most important hours will be useless.
• Trade tip: outside, leave a small downward loop in the cable before it enters the wall — a drip loop. Rain follows the cable down and drips off the loop, instead of tracking into your brickwork.

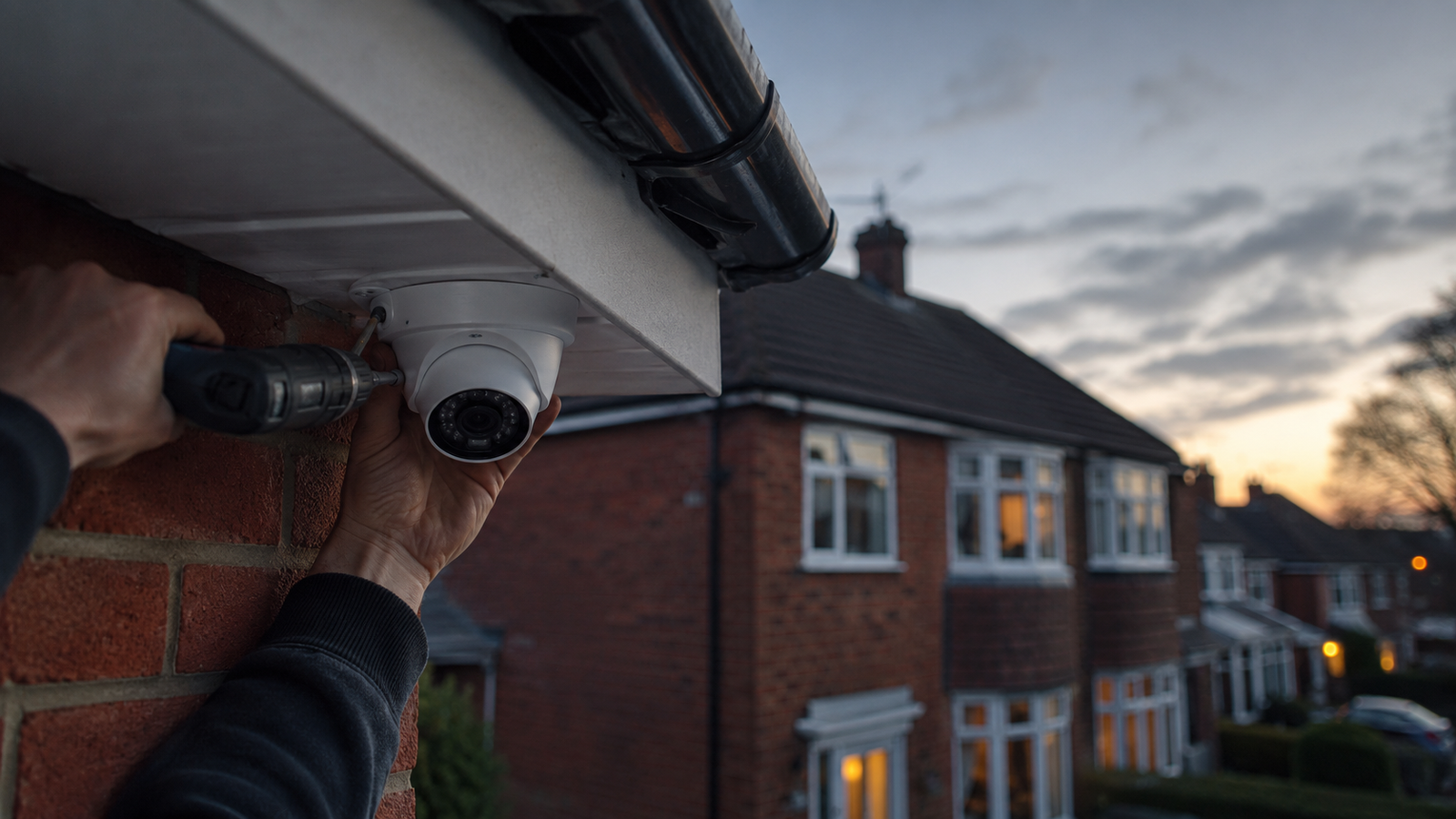

4. The Install, Step by Step

1. Hold the bracket up using the supplied drilling template — and check the view on your phone before you drill.
2. Drill, plug, mount. Angle the cable entry hole slightly upward from outside, so water can't run in.
3. Run the Cat6a back to wherever the NVR will live — loft, cupboard, under the stairs.
4. Terminate with RJ45 connectors. A crimping tool costs a few pounds and takes ten minutes to learn — there are worse skills to have.
5. Plug each camera into the NVR's PoE ports. They power up and appear on screen automatically.
6. Set up the Hik-Connect app, set your recording schedule — and test playback at night. Night footage is the footage that matters.

5. What Does CCTV Installation Cost in the UK?

The honest maths: the hardware is identical whether you fit it or a professional does. A quality four-camera 4K PoE system typically runs £500–£900 in kit. Professional supply-and-fit for the same spec commonly lands between £1,000 and £1,800, with installers typically charging £80–£150 per camera point.

What you're really paying for is the cable runs. If you're comfortable running a cable through a wall, the saving is yours. If you're not, come and see us — we supply many of Birmingham's installers and can point you towards someone trustworthy.

6. CCTV Laws UK: The Five-Minute Compliance Check

If your cameras only see your own property, data protection law doesn't apply to you at all.

The moment they capture anything beyond your boundary — the pavement, the road, a neighbour's garden — UK GDPR and the Data Protection Act 2018 apply, even at home. The rules are manageable:

• Have a genuine security purpose for the cameras.
• Put up a visible sign saying CCTV is in operation.
• Don't aim cameras at a neighbour's windows or garden.
• Delete footage you no longer need, and respond if someone asks what you've recorded of them.

Businesses have one extra step: registering with the ICO and paying the annual data protection fee. And one final piece of advice for everyone: think twice before switching on audio. Recording conversations is far harder to justify legally than recording video — it's why most professionals leave it off.

Your CCTV Installation, Summarised

Expert Help in the West Midlands

If you're local, skip the guesswork: our trade counter on Villa Road, Birmingham has cameras running live, so you can judge the image quality with your own eyes — and staff who've supplied the region's security installers since 1975. Bring your questions, or a photo of the wall you're planning to drill.

Frequently Asked Questions

Can I install CCTV myself in the UK?
Yes. No licence is required for domestic CCTV, and because PoE systems involve no mains wiring, you don't need an electrician either. The only two jobs that need a little care are drilling clean cable-entry holes and crimping RJ45 connectors — both learnable in an afternoon.

Do I need permission to install CCTV at home?
Usually not — standard domestic cameras don't need planning permission, though listed buildings, conservation areas and leasehold flats are worth checking first. What always applies is data protection law if your cameras capture beyond your own boundary: signage, a genuine purpose, and sensible footage retention.

How many CCTV cameras do I need?
Three to four covers most UK homes: front door, driveway, side passage and rear access. A 4-channel NVR matches that neatly — go 8-channel if you think you'll ever extend, because nobody has ever regretted the spare ports.
