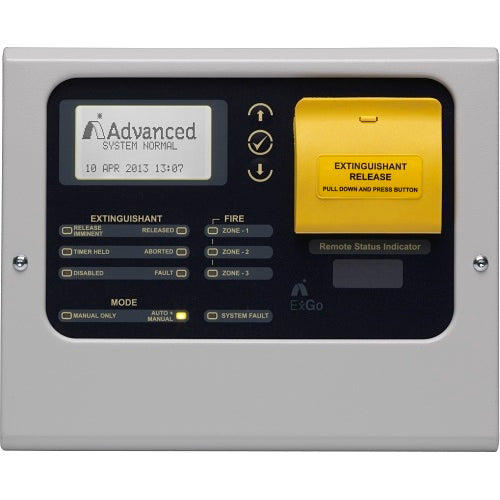

Advanced EX-3030 fire extinguishers & accessory, Flush Mount, Surface Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Advanced EX-3030 is a fire extinguishers & accessory from the ExGo range.
The ExGo Remote Status Indicators are available in two formats, a basic display only with optional key switches or a manual release version with optional key switch for automatic/manual mode. The ExGo extinguishing system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent. The extinguishing agent can take many forms from CO² through to specialist gases developed solely for extinguishing purposes.
The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire. The ExGo extinguishing system is used primarily in areas of significant value/strategic importance to businesses e.g. computer suites and telecom switch-rooms; thus providing a cost effective solution to protect your work place.
Key features
- Small and compact
- RS485 network port
- Optional manual release or display only
- Surface mount or semi-flush option
- Up to 7 remote status indicators per one ExGo 1 loop panel
- Key switch option for mode select or enable controls
- Multiple languages
- Programmable inputs and outputs
If you are matching this to an existing installation, work from the EX-3030 part number rather than the description.
Specifications
Certifications
Physical characteristics
Product information
Specifications
| Brand Name | Advanced |
|---|---|
| Manufacturer Part Number | EX-3030 |
| Product Series | ExGo |
Certifications
| WEEE compliance | Compliant |
|---|
Physical characteristics
| Depth | 45.00mm |
|---|---|
| Height | 190.00mm |
| Width | 235.00mm |
Product information
| Mount Type | Flush Mount, Surface Mount |
|---|
