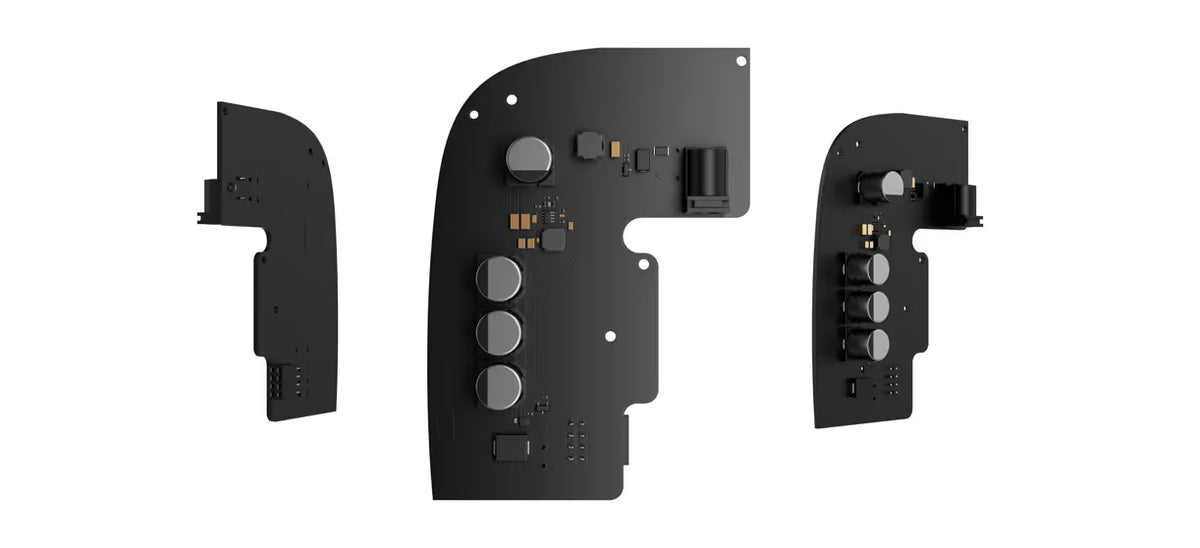

Ajax 59359.94.NC 12-24V Power Supply Unit (type A), 8–32 V Input, Up to 1.5 A Output
About this product
The Ajax 12-24V PSU (type A) is a power supply unit that lets an Ajax hub or range extender operate on low-voltage power. It installs into the hub or range extender enclosure by replacing the bundled power supply board, accepts an 8–32 V input and outputs 4.8 V ± 5% at up to 1.5 A.
Key features
- Input voltage 8–32 V, input current up to 1 A
- Output voltage 4.8 V ± 5%
- Output current up to 1.5 A
- Turn-on voltage 8 V ± 2.5%
- Turn-off voltage 7–7.5 V, depending on the load
- Fits into the hub or range extender enclosure in place of the bundled power supply board
- 6.5 × 2 mm power jack (female) connector slot
- Terminal adapter included in the complete set
Frequently asked questions
What input voltage does the Ajax 12-24V PSU (type A) accept?
It accepts an input voltage of 8–32 V, with an input current of up to 1 A.
What does the PSU output?
The output is 4.8 V ± 5% at up to 1.5 A.
How is the 12-24V PSU (type A) installed?
It goes into the hub or range extender enclosure by replacing the bundled power supply board.
At what voltage does the unit switch on and off?
The turn-on voltage is 8 V ± 2.5%, and the turn-off voltage is 7–7.5 V, depending on the load.
What connectors does it use?
It has a 6.5 × 2 mm connector slot (power jack, female), and the connector is a 5.5 × 2.1 mm power jack (male).
What is in the box?
The complete set is the 12–24V PSU (type A), a terminal adapter and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 59359.94.NC |
| Manufacturer Part Number (MPN) | 59359.94.NC |
| Input voltage | 8–32 V⎓ |
| Input current | up to 1 A |
| Turn-on voltage | 8 V⎓ ± 2.5% |
| Turn-off voltage | 7–7.5 V⎓ (depends on the load) |
| Output voltage | 4.8 V⎓ ± 5% |
| Output current | up to 1.5 A |
| Installation method | into the hub or range extender enclosure by replacing the bundled power supply board |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Connector slot | 6.5 × 2 mm, power jack (female) |
| Connector | 5.5 × 2.1 mm, power jack (male) |
| Board dimensions | 98 × 70 × 17 mm |
| Board weight | 26 g |
| Complete set | 12–24V PSU (type A), terminal adapter, quick start guide |
