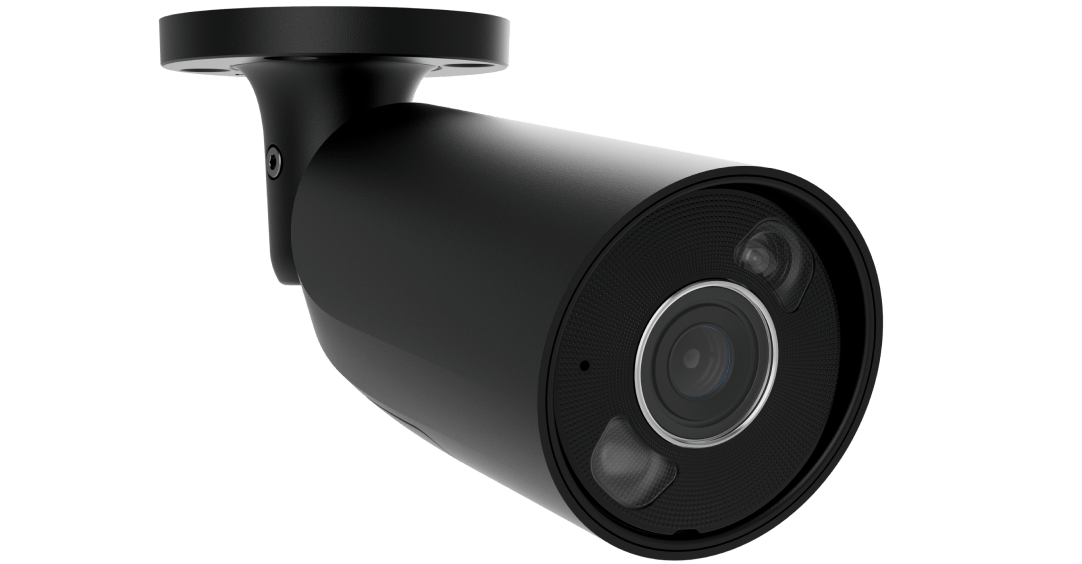

Ajax 126258.217.BL1 BulletCam HL AI-Powered IP Camera, 8MP, 4mm
About this product
The Ajax BulletCam HL (8 Mp/4 mm), article code 126258.217.BL1, is a wired AI-powered security IP camera in black with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records up to 8 MP (3840 × 2160), detects people, pets and vehicles, and lights the scene with white LED and IR LED illumination up to 50 m.
Key features
- 8 MP CMOS, 1/2.7" type image sensor; 8 MP (3840 × 2160) resolution
- 4 mm fixed lens, f/1.6, horizontal field of view 75–85°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af) or 12 V⎓ ± 20%, 1 А power
- IP66 and IK08 protection class
Frequently asked questions
How far can the BulletCam HL (8 Mp/4 mm) see at night?
Its maximum illumination distance is up to 50 m with white LED and up to 50 m with IR LED. Minimum illumination is 0.005 lx in color and 0 lx in B/W.
How is it powered?
Over PoE (802.3at/af), with PoE power consumption of maximum up to 8.2 W, or from a 12 V⎓ ± 20%, 1 А power supply unit, with maximum up to 7.2 W.
Where are recordings stored?
On a microSD card up to 256 GB (Class V30 or faster), or on an Ajax NVR. The memory card is not included in the complete set.
Can it be used outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can its AI detect?
AI object detection recognises people, pets and vehicles; motion detection uses software image frame analysis.
Does it work with ONVIF recorders?
It is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126258.217.BL1 |
| Manufacturer Part Number (MPN) | 126258.217.BL1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8.2 W; average: up to 7.0 W |
| Power supply unit | 12 V⎓ ± 20%, 1 А |
| 12 V DC power consumption | maximum: up to 7.2 W; average: up to 6.0 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam HL (8 Mp/4 mm); Installation template; Installation kit; Quick start guide |
| Secure Boot | Protection against firmware spoofing. |
| Colour | Black |
