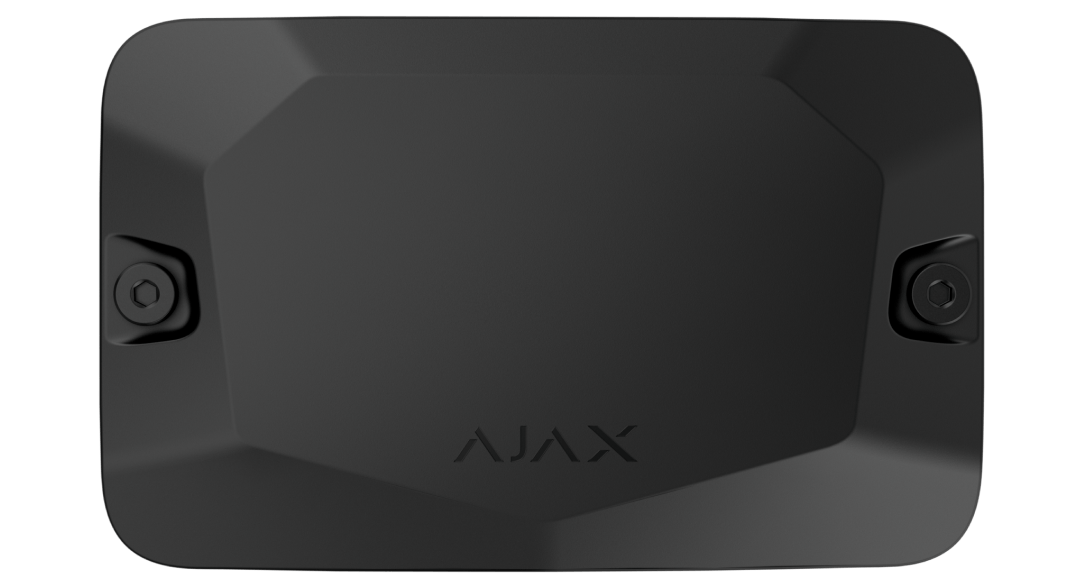

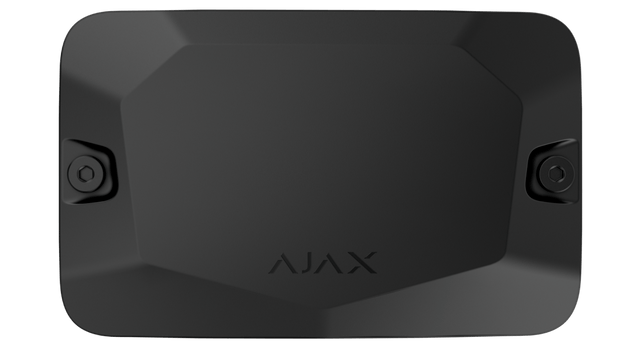

Ajax 63139.186.BL Case A (106) Module Casing, 1 Device, 106 × 168 × 56 mm
About this product
The Ajax Case A (106) in black is a casing for an Ajax module, holding 1 device: the Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra or Superior MultiTransmitter IO (4X4) Fibra. It is designed for indoor use only, and its included tamper board connects to the device connector to protect the installed device from sabotage.
Key features
- Holds 1 device; compatible with Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra and Superior MultiTransmitter IO (4X4) Fibra
- Tamper board included in the complete set
- Plastic latches secure the device; slide the latches to remove it
- Device can be rotated by 180°, giving two options for fixation
- Lid can be rotated by 180° during installation, with latches holding it until it is secured with screws
- Bubble level to check the inclination angle during installation
- Recesses for drilling, Ø16 mm or Ø20 mm
- Cable fasteners to hold the cables together with ties
Frequently asked questions
Which Ajax devices fit in Case A (106)?
It is compatible with the Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra and Superior MultiTransmitter IO (4X4) Fibra.
How many devices does Case A (106) hold?
It holds 1 device. To install more devices, choose Case B (175), Case C (260), Case D (430) or Case E (395).
Can Case A (106) be installed outdoors?
No. The device is designed for indoor use only, with an operating temperature range from −10 °C to +40 °C.
Is a tamper board included?
Yes. The tamper board is included in the Case complete set; it connects to the appropriate device connector and protects the installed device from sabotage.
What size are the recesses for drilling?
The recesses for drilling take Ø16 mm or Ø20 mm, and a hole saw for plastic is recommended.
What is in the box?
The complete set contains Case A (106), a tamper board, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 63139.186.BL |
| Manufacturer Part Number (MPN) | 63139.186.BL |
| Compatibility | Superior LineSplit Fibra; Superior LineProtect Fibra; Superior MultiRelay Fibra; Superior MultiTransmitter IO (4X4) Fibra |
| Number of devices | 1 |
| Recesses for drilling | Ø16 mm or Ø20 mm |
| Device rotation | by 180° |
| Tamper board | Included in the Case complete set |
| Dimensions | 106 × 168 × 56 mm |
| Weight of the black device | 200 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Installation | Indoor use only |
| Colour | Black |
