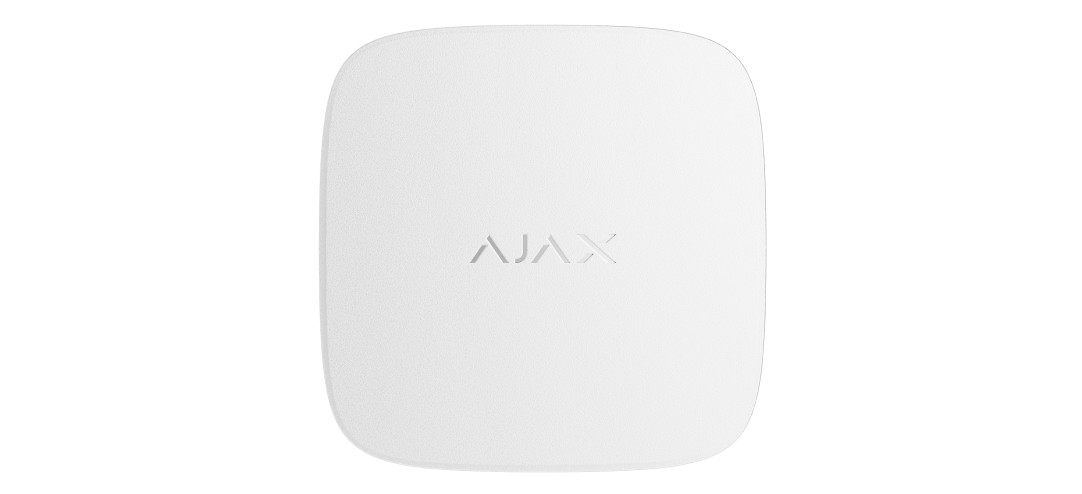

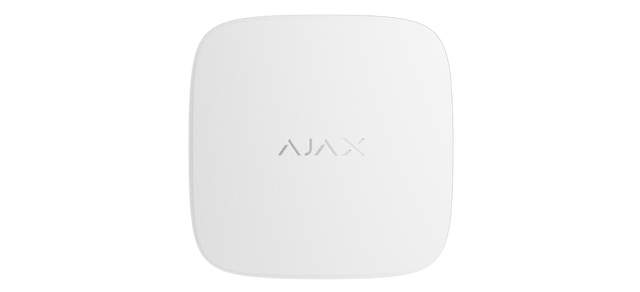

Ajax 63214.136.WH1 FireProtect 2 SB (Heat) Wireless Heat Detector, Class A1R, 10-Year Sealed Batteries
About this product
The Ajax FireProtect 2 SB (Heat) Jeweller (63214.136.WH1) is a wireless heat detector with sealed batteries for Ajax security systems, in white. It raises a fire alarm at temperatures above 64°C or when the temperature rises more than 10°C in 1 minute or less, sounds its in-built siren (85 dB at a distance of 3 meters) and reports to the hub over Jeweller radio.
Key features
- Sensing element to the requirements for Class A1R heat detectors (EN 54-5 and BS 5446-2)
- High temperature alarm at temperatures above 64°C
- Temperature spike alarm when the temperature rises more than 10°C in 1 minute or less
- In-built siren: volume 85 dB at a distance of 3 meters
- 2 non-replaceable lithium batteries with 10 years of battery life
- Jeweller radio range up to 1,700 m to a hub or range extender in an open space
- Interconnected fire alarms: within 20 seconds the hub initiates an interconnected alarm
- Tampering alarm if the detector is detached from the surface or the mounting panel is removed
Frequently asked questions
Can the batteries be replaced?
No. It uses 2 non-replaceable lithium batteries, with 10 years of battery life.
At what temperature does it alarm?
It raises a high temperature alarm at temperatures above 64°C, and a temperature spike alarm when the temperature rises more than 10°C in 1 minute or less.
Which standard does the heat sensor meet?
The sensing element follows the requirements for Class A1R heat detectors, to the requirements of EN 54-5 and BS 5446-2 standards.
How far can it be from the hub?
Radio communication range is up to 1,700 m between the detector and a hub (or radio signal range extender) in an open space.
Can it be installed outdoors?
No. The device is designed only for indoor installation, and its protection class is IP20.
What is in the box?
The FireProtect 2 SB (Heat) Jeweller, SmartBracket mounting panel, installation kit and quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 63214.136.WH1 |
| Manufacturer Part Number (MPN) | 63214.136.WH1 |
| Communication | Jeweller communication technology |
| Radio frequency bands | 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m (between the detector and a hub or radio signal range extender, in an open space) |
| Sensitive element | to the requirements for Class A1R heat detectors (EN 54-5 and BS 5446-2) |
| High temperature alarm | at temperatures above 64°C |
| Temperature spike alarm | when the temperature rises more than 10°C in 1 minute or less |
| In-built siren | volume 85 dB at a distance of 3 meters |
| Tampering alarm | Alerts of attempts to detach the detector from the surface or remove the mounting panel |
| Protection against spoofing | device authentication |
| Power supply | 2 non-replaceable lithium batteries, 10 years of battery life |
| Dimensions | 44 × 86 × 86 mm |
| Weight | 142 g |
| Operating temperature range | from 0°C to +50°C |
| Operating humidity | up to 80% |
| Protection class | IP20 |
| Complete set | FireProtect 2 SB (Heat) Jeweller; SmartBracket mounting panel; Installation kit; Quick start guide |
| Colour | White |
