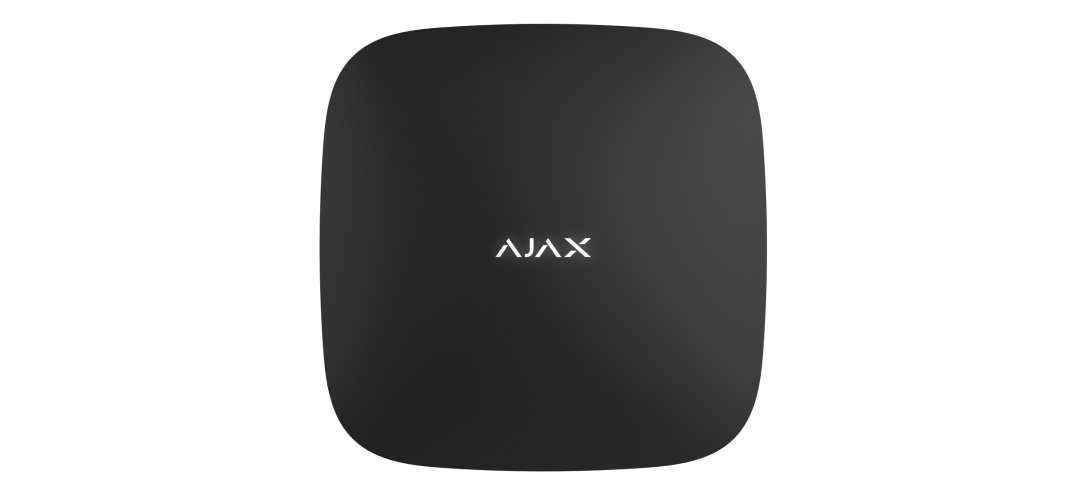

Ajax 37672.108.BL1 Hub 2 (4G) Wireless Control Panel, Ethernet + 2 Micro-SIM, Up to 100 Devices
About this product
The Ajax Hub 2 (4G) Jeweller, article code 37672.108.BL1, is a wireless control panel with support for photo verification, in black, connectable via Ethernet and two SIM cards (2G/3G/LTE). It manages up to 100 wireless Ajax devices and up to 25 IP cameras or DVRs, and sends push, SMS and call notifications to its users.
Key features
- Up to 100 wireless Ajax devices, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders
- Up to 25 IP cameras or DVRs, with RTSP support
- Jeweller radio signal range up to 2,000 m in an open space
- Ethernet (1 8P8C socket, up to 100 Mbps) and 2 micro-SIM slots with 2G, 3G and 4G (LTE)
- Built-in Li-ion 3 Аh backup battery: up to 15 hours of offline operation when Ethernet is disconnected
- Up to 50 users, up to 32 automation scenarios, up to 9 security groups
- Monitoring via SIA (DC-09), SurGard (Contact ID) and ADEMCO 685
Frequently asked questions
How many devices can the Hub 2 (4G) Jeweller manage?
Up to 100 wireless Ajax devices, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders, plus up to 25 IP cameras or DVRs.
What communication channels does the hub use?
Through Ethernet (1 8P8C socket, up to 100 Mbps) and two SIM cards (2G/3G/LTE) in 2 micro-SIM slots. Communication channels work in parallel to increase the system’s reliability.
How long does it run on battery?
The built-in rechargeable Li-ion 3 Аh battery gives up to 15 hours of offline operation when Ethernet is disconnected.
Which cameras can it work with?
Up to 25 IP cameras or DVRs, with integration for Dahua, Hikvision, Safire, EZVIZ and Uniview IP cameras and DVRs, and RTSP support.
Can it send events to a monitoring station?
Yes. It supports SIA (DC-09), SurGard (Contact ID), ADEMCO 685 and other proprietary protocols.
Can it be installed outdoors?
No. The hub is designed for indoor installation only; it is rated IP20.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 37672.108.BL1 |
| Manufacturer Part Number (MPN) | 37672.108.BL1 |
| Wireless Ajax devices | up to 100 (up to 10 sirens or keypads with a built-in siren and up to 5 range extenders) |
| IP cameras or DVRs | up to 25 |
| Users | up to 50 |
| Automation scenarios | up to 32 |
| Security groups | up to 9 |
| Rooms | up to 50 |
| Jeweller radio signal range | up to 2,000 m (in an open space) |
| Polling interval | from 12 to 300 s |
| Ethernet | 1 8P8C socket, up to 100 Mbps |
| Cellular | 2 micro-SIM slots |
| Cellular bands | 2G GSM900/DCS1800 (B3/B8); 3G WCDMA 850/900/2100 (B1/B5/B8); 4G (LTE) FDD B1/B3/B5/B7/B8/B20 |
| Supported notification types | Push, SMS, Calls |
| Photo transmission time | up to 9 s by default |
| Photo resolution | up to 640 × 480 pixels (depends on the detector) |
| Number of photos in a series | from 1 to 5 pictures |
| Monitoring protocols | SIA (DC-09), SurGard (Contact ID), ADEMCO 685, other proprietary protocols |
| Main power supply | 110–240 V~, 50/60 Hz (up to 10 W of mains power consumption) |
| Backup power | built-in rechargeable battery Li-ion 3 Аh (up to 15 hours of offline operation when Ethernet is disconnected) |
| Alternative power | 6 V⎓ (6V PSU (type A), sold separately); 12–24 V⎓ (12–24V PSU (type A), sold separately) |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | Hub 2 (4G) Jeweller; SmartBracket mounting panel; Power cable; Ethernet cable; Installation kit; SIM card (depends on the sales region); User Manual |
| Colour | Black |
