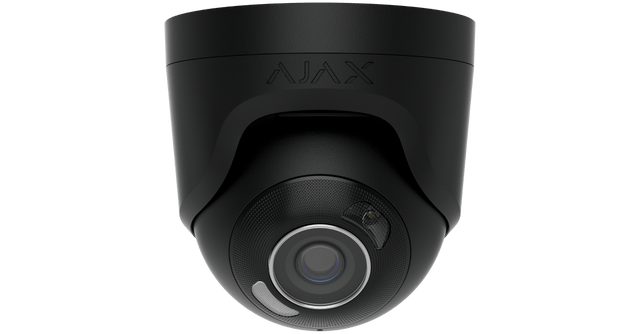

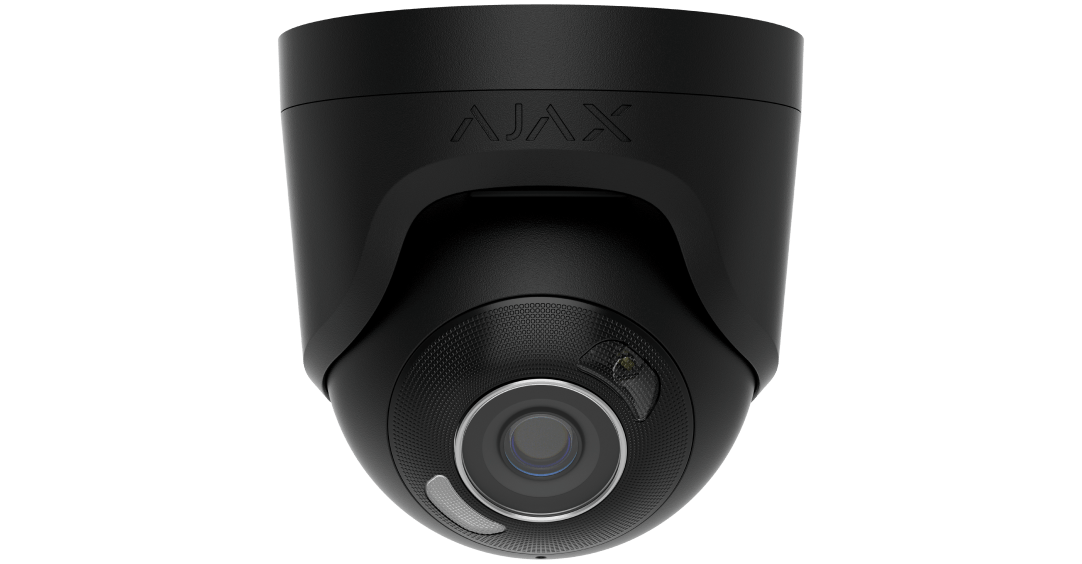

Ajax 126264.197.BL1 TurretCam HL Wired AI-powered IP Camera, 8MP, 2.8mm
About this product
The Ajax TurretCam HL (8 Mp/2.8 mm), article code 126264.197.BL1 in Black, is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records at up to 8 MP (3840 × 2160) and detects people, pets and vehicles with AI object detection.
Key features
- 8 MP CMOS sensor, 1/2.7" type, recording at up to 8 MP (3840 × 2160)
- 2.8 mm fixed lens with f/1.6 maximum aperture and a horizontal field of view of 100–110°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone that can record audio at the scene with the corresponding settings
- PoE (802.3at/af) or 12 V⎓ power
- IP66, IK08 protection class
Frequently asked questions
How far can the TurretCam HL (8 Mp/2.8 mm) see at night?
Its maximum illumination distance is up to 50 m with the white LED and up to 50 m with the IR LED.
Can it be powered by PoE?
Yes. It supports PoE to 802.3at/af, with PoE power consumption of maximum: up to 8.3 W and average: up to 7.7 W. It can also use a 12 V⎓ ± 20%, 1 A power supply unit.
Where does it store recordings?
On microSD up to 256 GB (Class V30 or faster; the card is not included in the complete set) or on an Ajax NVR.
Does it record audio?
Yes. It has a built-in microphone, and with the corresponding settings the camera can record audio at the scene.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What is in the box?
The complete set is the TurretCam HL (8 Mp/2.8 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126264.197.BL1 |
| Manufacturer Part Number (MPN) | 126264.197.BL1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 90 m; Observation: 36 m; Recognition: 18 m; Identification: 9 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8.3 W; average: up to 7.7 W |
| Power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 7.1 W; average: up to 6.6 W |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | TurretCam HL (8 Mp/2.8 mm); Installation template; Installation kit; Quick start guide |
| Colour | Black |
