Ajax 126266.197.BL1 TurretCam HL Wired AI-powered IP Camera, 8MP, 4mm
About this product

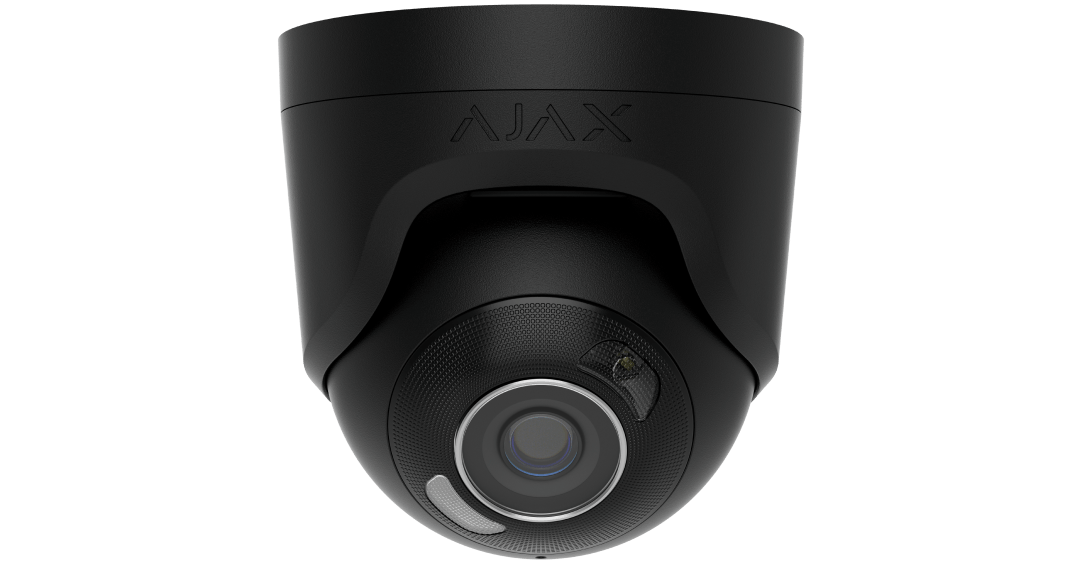

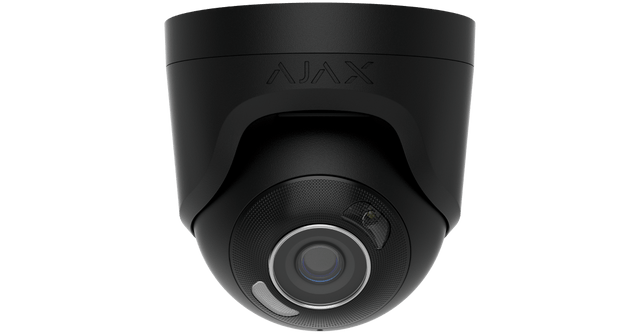

The Ajax 126266.197.BL1 is the TurretCam HL (8 Mp/4 mm) in Black: a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It records 8 MP (3840 × 2160) video, detects people, pets and vehicles with AI object detection, and sees up to 50 m in the dark with its IR LED.
Key features
- 8 MP CMOS, 1/2.7" type sensor with 4 mm fixed lens and f/1.6 maximum aperture
- Field of view horizontal: 75–85°, vertical: 40–50°
- Hybrid illumination: IR LED up to 50 m and white LED up to 50 m
- AI object detection for people, pets and vehicles
- 120 dB True WDR
- Built-in microphone records audio at the scene with the corresponding settings
- PoE 802.3at/af or 12 V power supply
- IP66, IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How far can the TurretCam HL (8 Mp/4 mm) see at night?
Its maximum illumination distance is up to 50 m with the IR LED and up to 50 m with the white LED, and intelligent lighting control adjusts both in real time to prevent overexposure.
How is it powered?
Over PoE (802.3at/af), with PoE power consumption of maximum: up to 8 W, or from a 12 V⎓ ± 20%, 1 А power supply unit.
Where are recordings stored?
On a microSD card up to 256 GB, Class V30 or faster, or on an Ajax NVR. The memory card is not included in the complete set.
What can the AI object detection recognise?
People, pets and vehicles.
Can it be installed outdoors?
Yes. It is made for outdoor and indoor use, rated IP66, IK08, and operates from −30 °C to +60 °C.
Does it work with ONVIF recorders?
The camera is conformant with ONVIF® Profile S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126266.197.BL1 |
| Manufacturer Part Number (MPN) | 126266.197.BL1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| Motion detection | Software image frame analysis |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8 W; average: up to 7.6 W |
| Power supply unit | 12 V⎓ ± 20%, 1 А |
| 12 V DC power consumption | maximum: up to 7.3 W; average: up to 6.8 W |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
