AMG Systems AMG155-1GBT-P60 PoE injector, DIN Rail, Wall Mount

Free Delivery
£ 221 78
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

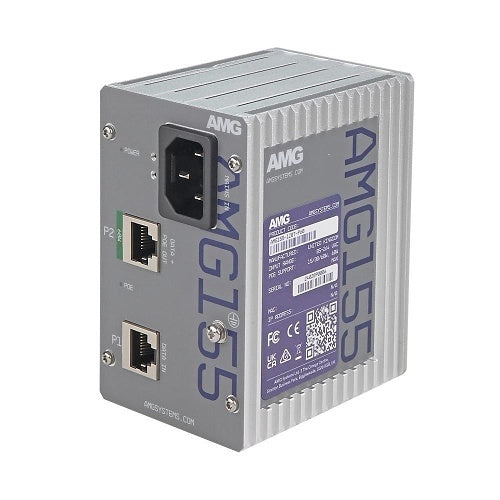

AMG Systems AMG155-1GBT-P60 is a PoE injector from the AMG155 range.

Designed in a compact DIN rail or wall mount housing, the AMG155 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices. Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.Fitted with an integrated fully industrial mains power supply supporting either 30W, 60W or 90W PoE power.Designed as standard single-Channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.Robust surge protection ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements.

Key features

  • Compact size; ideal for confined spaces, including camera poles and roadside cabinets
  • 40°C to 75°C Temperature maintains performance in extreme conditions
  • Plug and Play; no need for any user configuration
  • DIN Rail mountable; quick to install and remove for maintenance
  • RJ45 Ports support all standard 10/100/1000Mb speeds
  • Integrated mains power supply with 52VDC at 60W output
  • Supports 15W, 30W and 60W PoE
  • Integrated surge protection with up to 20kA discharge capability for maximum protection in harsh environments
  • Designed in the USA and UK. Manufactured in the United Kingdom
£ 221 78
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£221.78 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG155-1GBT-P60
Product Series
AMG155
Product Type
PoE Injector
Environmental conditions
Operating Relative Humidity (H-H)
5-95%
Operating Temperature (T-T)
-40-75°C
Storage Temperature (T-T)
-40-85°C
Network & communication
Networking Standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Physical characteristics
Depth
88.00mm
Form Factor
DIN Rail, Wall Mount
Height
107.00mm
Width
65.00mm
Power description
Input Voltage
120-370V DC, 85-264V AC
Maximum Input Current
2.00A
Maximum Output Power
60.00W
Maximum Output Voltage
52V
Power over Ethernet (PoE)
Yes
Product information
Mount Type
DIN Rail Mount, Wall Mount
Protection Type
Overload Protection, Surge Protection
Miscellaneous
Cables Included
Yes
Package Contents
Angled Locking Bracket and Screws To Secure The Included Left Angle IEC Line Cord Region Specific UK/EU/US Left Angled IEC Line Cord , Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG155 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG155 Series Products
Attributes
Input Voltage
120-370V DC, 85-264V AC
Maximum Output Power
60.00W
Package Contents
Angled Locking Bracket and Screws To Secure The Included Left Angle IEC Line Cord Region Specific UK/EU/US Left Angled IEC Line Cord , Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG155 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG155 Series Products

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG155-1GBT-P60
Product Series AMG155
Product Type PoE Injector

Environmental conditions

Operating Relative Humidity (H-H) 5-95%
Operating Temperature (T-T) -40-75°C
Storage Temperature (T-T) -40-85°C

Network & communication

Networking Standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u

Physical characteristics

Depth 88.00mm
Form Factor DIN Rail, Wall Mount
Height 107.00mm
Width 65.00mm

Power description

Input Voltage 120-370V DC, 85-264V AC
Maximum Input Current 2.00A
Maximum Output Power 60.00W
Maximum Output Voltage 52V
Power over Ethernet (PoE) Yes

Product information

Mount Type DIN Rail Mount, Wall Mount
Protection Type Overload Protection, Surge Protection

Miscellaneous

Cables Included Yes
Package Contents Angled Locking Bracket and Screws To Secure The Included Left Angle IEC Line Cord Region Specific UK/EU/US Left Angled IEC Line Cord , Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG155 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG155 Series Products

Attributes

Input Voltage 120-370V DC, 85-264V AC
Maximum Output Power 60.00W
Package Contents Angled Locking Bracket and Screws To Secure The Included Left Angle IEC Line Cord Region Specific UK/EU/US Left Angled IEC Line Cord , Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG155 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG155 Series Products

AMG Systems AMG155-1GBT-P60 PoE injector

AMG Systems AMG155-1GBT-P60 PoE injector, DIN Rail, Wall Mount

Who this is for

For the installer — this is the PoE injector supplied under AMG Systems part number AMG155-1GBT-P60. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a PoE injector made by AMG Systems. The part number AMG155-1GBT-P60 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE injector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE injector I have been quoted? Check the manufacturer part number AMG155-1GBT-P60 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AMG155-1GBT-P60 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

AMG Systems AMG155-1GBT-P60 PoE injector
AMG Systems

AMG Systems AMG155-1GBT-P60 PoE injector, DIN Rail, Wall Mount

£221.78

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG155-1GBT-P60 is a PoE injector from the AMG155 range.

Designed in a compact DIN rail or wall mount housing, the AMG155 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices. Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.Fitted with an integrated fully industrial mains power supply supporting either 30W, 60W or 90W PoE power.Designed as standard single-Channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.Robust surge protection ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements.
