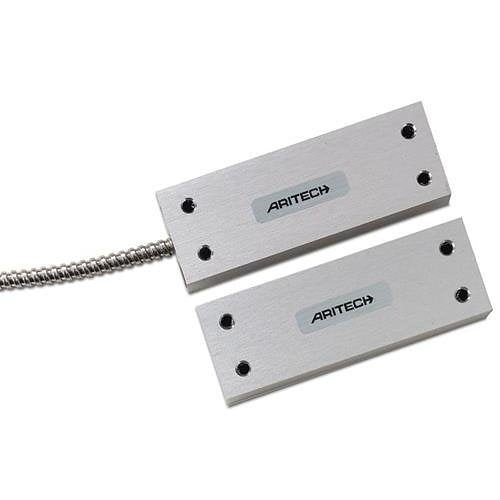

Aritech DC111 biased reed, Silver
About this product
Aritech DC111 is a biased reed from the DC range.
This page covers Aritech part DC111. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover packaged quantity, connectivity technology, standard gap among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Packaged Quantity: 2. This is the figure the record carries for this exact part number.
- Connectivity Technology: Wired. Parts in the same family can differ here, so check the code rather than the family.
- Standard Gap: 15.00mm. It is listed for this part number, not for the range as a whole.
- RoHS compliance: Recorded as out of scope for the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Where your specification names a figure, compare it against this one before ordering.
- Security Grade: Grade 3. Parts in the same family can differ here, so check the code rather than the family.
- WEEE compliance: Recorded as out of scope for the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
- Colour: Silver. Where your specification names a figure, compare it against this one before ordering.
- Contact Material: Aluminium. It is listed for this part number, not for the range as a whole.
- Depth: 19.00mm. This is the figure the record carries for this exact part number.
- Height: 108.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Width: 38.00mm. It is listed for this part number, not for the range as a whole.
- Length: 2000.00mm. Where your specification names a figure, compare it against this one before ordering.
- Mount Type: Surface Mount. Parts in the same family can differ here, so check the code rather than the family.
- Package Contents: DC111 Contact Tamper Loop. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the biased reed role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Mounting: Recorded as surface mount.
If you are matching this to an existing installation, work from the DC111 part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | DC111 |
| Product Series | DC |
| Product Type | Biased Reed |
General information
| Packaged Quantity | 2 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 15.00mm |
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| Security Grade | Grade 3 |
| WEEE compliance | Out of Scope |
Physical characteristics
| Colour | Silver |
|---|---|
| Contact Material | Aluminium |
| Depth | 19.00mm |
| Height | 108.00mm |
| Width | 38.00mm |
Product information
| Length | 2000.00mm |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Package Contents | DC111 Contact Tamper Loop |
|---|
Attributes
| Package Contents | DC111 Contact Tamper Loop |
|---|
