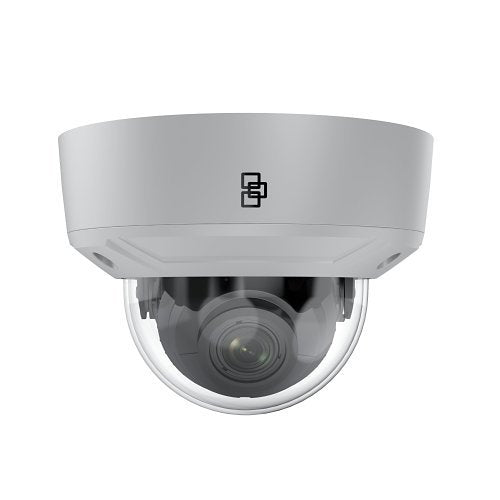

Aritech TVGP-M01-0402-DOM-G IP dome camera, 4MP

Free Delivery
£ 308 60
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Aritech TVGP-M01-0402-DOM-G is an IP dome camera from the M range.

The TruVision M-series IP dome cameras leverages the latest H.265+ video compression technology to bring state of-the-art, high-definition pictures to the mass video surveillance market. With video resolutions from 2 Megapixel to 4K, these IP cameras represent a flexible video surveillance device to meet any need.

Key features

  • Maximum resolution: 4MP (2688 x 1520)
  • Motorized zoom lens 2.8 to 12 mm
  • Person/vehicle classification
  • Video intelligence: intrusion detection, cross line detection, face detection
  • Up to 40 m IR illumination
  • H.265+ compression
  • ONVIF Profile G, S, T open standards
  • Edge recording up to 256 GB SDHC card

If you are matching this to an existing installation, work from the TVGP-M01-0402-DOM-G part number rather than the description.

£ 308 60
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£308.60 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Aritech
Manufacturer Part Number
TVGP-M01-0402-DOM-G
Product Series
M
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.265 / HEVC, H.265+, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
40.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Grey
Durability
Vandalproof
Form Factor
Dome
Height
111.60mm
Weight
880.00g
Power description
Input Voltage
12V DC
Product information
Diameter
153.30mm
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
3D Digital Noise Reduction, Built-in IR LED, Cross Line Detection, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
880.00g

Specifications

Brand Name Aritech
Manufacturer Part Number TVGP-M01-0402-DOM-G
Product Series M
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Optical Zoom 4.0x
Video Formats H.264 / AVC, H.265 / HEVC, H.265+, MJPEG
Video Resolution 1280 x 720
Video Signal Format NTSC, PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 40.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/3 Second
Minimum Illumination 0.0050lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 2.8-12mm
Lens Included Yes
Maximum Focal Length 12.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour Grey
Durability Vandalproof
Form Factor Dome
Height 111.60mm
Weight 880.00g

Power description

Input Voltage 12V DC

Product information

Diameter 153.30mm

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Miscellaneous

Environmental status Yes
Features 3D Digital Noise Reduction, Built-in IR LED, Cross Line Detection, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Input Voltage 12V DC
Weight 880.00g

Aritech TVGP-M01-0402-DOM-G IP dome camera

Aritech TVGP-M01-0402-DOM-G IP dome camera, 4MP

Who this is for

For the installer — this is the IP dome camera supplied under Aritech part number TVGP-M01-0402-DOM-G. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP dome camera made by Aritech. The part number TVGP-M01-0402-DOM-G is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP dome camera I have been quoted? Check the manufacturer part number TVGP-M01-0402-DOM-G against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TVGP-M01-0402-DOM-G answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
