Aritech TVGP-M01-0401-WED-W wedge dome camera, 4MP

Free Delivery
£ 178 94
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

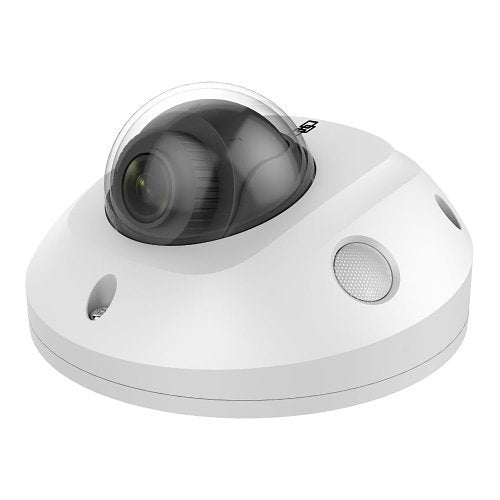

Aritech TVGP-M01-0401-WED-W is a wedge dome camera from the M range.

The TruVision M-series IP wedge cameras leverages the latest H.265+ video compression technology to bring state of-the-art, high-definition pictures to the mass video surveillance market. With video resolutions from 2 and 4MP, these IP cameras represent a flexible video surveillance device to meet any need. Equipped with advanced technology and signal processing capability, they effectively capture video under challenging conditions.

The cameras go above and beyond standard motion detection with enhanced alarm capabilities, including cross line detection, intrusion detection and face detection features. With its smart person/vehicle feature the camera can ignore irrelevant motion or VCA events which will automatically lead to less storage consumption and faster retrieval of relevant video events. TruVision cameras utilize H.265+ and/or H.264 compression technology with triple-streaming capability, making it easy to manage the camera's bandwidth usage.

Recording to a local MicroSD card (not included) protects data in the event of network disruptions.

Key features

  • Maximum resolution 4MP (2688 x 1520)
  • Person/vehicle classification
  • Video intelligence; intrusion detection, cross line detection, face detection
  • Up to 30m IR illumination
  • Audio and alarm I/O
  • H.265+ Compression
  • ONVIF Profile G, S, T open standards
  • Edge recording up to 256 GB SDHC card

If you are matching this to an existing installation, work from the TVGP-M01-0401-WED-W part number rather than the description.

£ 178 94
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£178.94 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Aritech
Manufacturer Part Number
TVGP-M01-0401-WED-W
Product Series
M
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, H.265+, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
CE marking
Yes
Ingress protection
IP67
Display & graphics
Maximum Illumination
0.005lux
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandalproof
Form Factor
Wedge
Height
57.40mm
Weight
380.00g
Width
57.40mm
Power description
Input Voltage
12V DC
Product information
Diameter
110.00mm
Storage
Recording Formats
H.264
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
Alarm Triggering, Cross Line Detection, Face Detection, Human Detection, Mirror, Motion Detection, Multi-view Stream, Region of Interest, Vehicle Detection, Wide Dynamic Range
Impact protection
IK08
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
380.00g

Specifications

Brand Name Aritech
Manufacturer Part Number TVGP-M01-0401-WED-W
Product Series M
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, H.265 / HEVC, H.265+, MJPEG
Video Resolution 1280 x 720
Video Signal Format NTSC, PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 30.00m

Certifications

CE marking Yes
Ingress protection IP67

Display & graphics

Maximum Illumination 0.005lux
Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/3 Second
Minimum Illumination 0.0050lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.80mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Vandalproof
Form Factor Wedge
Height 57.40mm
Weight 380.00g
Width 57.40mm

Power description

Input Voltage 12V DC

Product information

Diameter 110.00mm

Storage

Recording Formats H.264
Storage Type SD Card

Miscellaneous

Environmental status Yes
Features Alarm Triggering, Cross Line Detection, Face Detection, Human Detection, Mirror, Motion Detection, Multi-view Stream, Region of Interest, Vehicle Detection, Wide Dynamic Range
Impact protection IK08
Indoor or outdoor use Outdoor

Attributes

Input Voltage 12V DC
Weight 380.00g

Aritech TVGP-M01-0401-WED-W wedge dome camera

Aritech TVGP-M01-0401-WED-W wedge dome camera, 4MP

Who this is for

For the installer — this is the wedge dome camera supplied under Aritech part number TVGP-M01-0401-WED-W. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a wedge dome camera made by Aritech. The part number TVGP-M01-0401-WED-W is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this wedge dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact wedge dome camera I have been quoted? Check the manufacturer part number TVGP-M01-0401-WED-W against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TVGP-M01-0401-WED-W answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Aritech TVGP-M01-0401-WED-W wedge dome camera
Aritech

Aritech TVGP-M01-0401-WED-W wedge dome camera, 4MP

£178.94

Please note: this is a non-returnable item (excluding faulty goods)

Aritech TVGP-M01-0401-WED-W is a wedge dome camera from the M range.

The TruVision M-series IP wedge cameras leverages the latest H.265+ video compression technology to bring state of-the-art, high-definition pictures to the mass video surveillance market. With video resolutions from 2 and 4MP, these IP cameras represent a flexible video surveillance device to meet any need. Equipped with advanced technology and signal processing capability, they effectively capture video under challenging conditions.

The cameras go above and beyond standard motion detection with enhanced alarm capabilities, including cross line detection, intrusion detection and face detection features. With its smart person/vehicle feature the camera can ignore irrelevant motion or VCA events which will automatically lead to less storage consumption and faster retrieval of relevant video events. TruVision cameras utilize H.265+ and/or H.264 compression technology with triple-streaming capability, making it easy to manage the camera's bandwidth usage.

Recording to a local MicroSD card (not included) protects data in the event of network disruptions.

Key features

If you are matching this to an existing installation, work from the TVGP-M01-0401-WED-W part number rather than the description.
