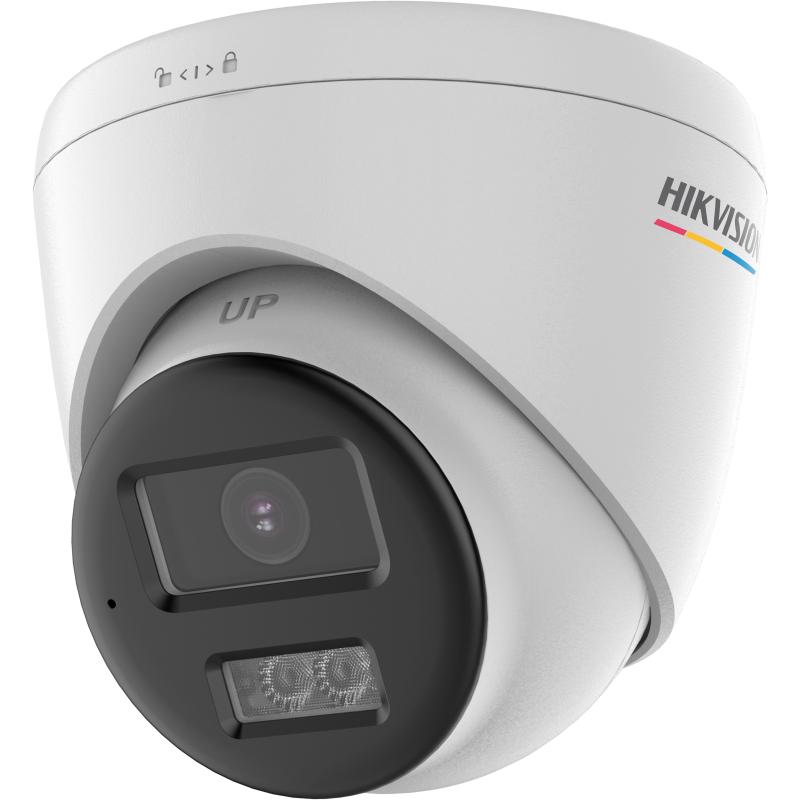

Hikvision DS-2CE72KF0T-LTS(3.6mm) 3K Two Way Audio Fixed Turret Camera, 3.6 mm Lens, Up to 40 m IR and White Light
About this product
The Hikvision DS-2CE72KF0T-LTS(3.6mm) is a 3K Two Way Audio Fixed Turret Camera for HD analogue CCTV systems, with 2960 × 1664 resolution, a 3.6 mm fixed lens and 1 HD analog output. It has a built-in mic and built-in speaker for real-time communication via built-in two-way audio, with audio over coaxial cable.
Key features
- 3K CMOS image sensor, max. resolution 2960 (H) × 1664 (V)
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid Light: supplement light type Smart, IR, White Light, with up to 40 m IR and up to 40 m white light
- 3.6 mm fixed lens: horizontal FOV 90.0°, vertical FOV 50.2°, diagonal FOV 109°
- Built-in mic and built-in speaker with audio over coaxial cable; pickup distance and speaker range in a radius of up to 5 m
- Echo cancellation, AI noise reduction and automatic gain control
- Digital WDR and 3D DNR
- Water and dust resistant (IP67)
Frequently asked questions
How far can the DS-2CE72KF0T-LTS(3.6mm) see at night?
The supplement light type is Smart, IR and White Light, with a range of IR: Up to 40 m and White Light: Up to 40 m.
What field of view does the 3.6 mm lens give?
Horizontal FOV 90.0°, vertical FOV 50.2° and diagonal FOV 109°.
Does it carry audio over the coaxial cable?
Yes. It has a built-in mic and built-in speaker with audio over coaxial cable, and provides real-time communication via built-in two-way audio. Pickup distance and speaker range are both in a radius of up to 5 m.
What power supply does it need?
12 VDC ± 25%, max. 5.3 W. Hikvision recommends using one power adapter to supply the power for one camera.
Is it weatherproof?
It is water and dust resistant (IP67), with an operating condition of -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing).
What frame rates does it record at?
Over TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps and 1080P @25 fps/30 fps.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE72KF0T-LTS(3.6mm) |
| Manufacturer Part Number (MPN) | DS-2CE72KF0T-LTS(3.6mm) |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1664 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/30 s to 1/50,000 s, NTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 3.6 mm fixed lens |
| Focal Length & FOV (3.6 mm) | Horizontal FOV: 90.0°, vertical FOV: 50.2°, diagonal FOV: 109° |
| Lens Mount | M12 |
| Microphone Pickup Distance | In a radius of up to 5 m |
| Microphone Amount | 1 |
| Speaker Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
| Frame Rate | TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps |
| Day/Night Mode | Auto/Color |
| WDR | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| Video Output | 1 HD analog output |
| Power | 12 VDC ± 25%, max. 5.3 W |
| Material | Main body: Metal; Enclosure: Plastic |
| Dimension | Ø110 mm × 102.7 mm (Ø4.3" × 4.0") |
| Weight | Approx. 375 g (0.8 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Protection | IP67 |
| Colour | White |
