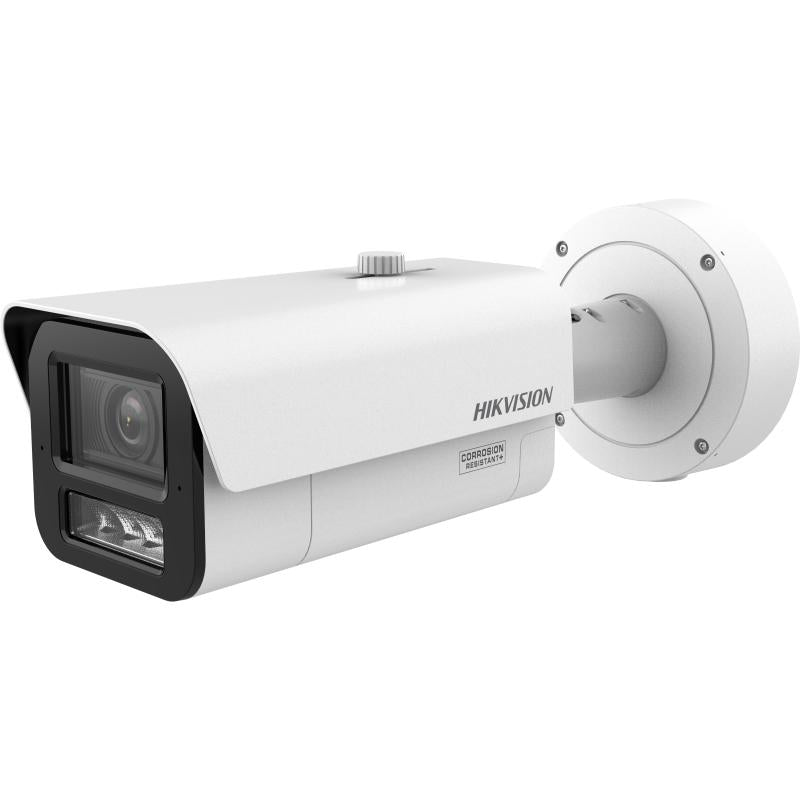

Hikvision iDS-2CD7A46G2/V-XZHSY(8-32mm) DeepinViewX Moto Varifocal Bullet Camera, 4MP, 8-32mm
About this product
The Hikvision iDS-2CD7A46G2/V-XZHSY(8-32mm) is a 4MP DeepinViewX Moto varifocal bullet camera for perimeter protection on IP CCTV systems. It pairs an 8 to 32 mm varifocal lens with IR and white supplement light (monitoring range 100 m), and uses a dedicated large scale AI model for perimeter protection that Hikvision says reduces false alarms by 90% compared to conventional AI cameras.
Key features
- 4 MP resolution (2688 × 1520) from a 1/1.8" Progressive Scan CMOS sensor
- 8 to 32 mm varifocal lens, horizontal FOV 42.5° to 15.2°, aperture F1.6
- IR and white supplement light, monitoring range 100 m (8 to 32 mm), 850 nm IR wavelength
- DarkFighter technology for low-light imaging and 140 dB WDR against strong back light
- Dedicated large scale AI model for perimeter protection, reducing false alarms by 90% compared to conventional AI cameras
- Water and dust resistant (IP67), vandal proof (IK10), with a built-in heater for rain and snow
- H.265+ compression and 5 video streams
- On-board microSD/microSDHC/microSDXC slot, up to 1 TB
Frequently asked questions
What lens does the iDS-2CD7A46G2/V-XZHSY(8-32mm) have?
An 8 to 32 mm varifocal lens with a P-iris and F1.6 aperture, giving a horizontal FOV of 42.5° to 15.2°.
How far does its supplement light reach?
The supplement light is IR and white light, with a monitoring range of 100 m on the 8 to 32 mm model. The IR wavelength is 850 nm.
At what distance can it identify a person?
Hikvision's DORI figures for the 8 to 32 mm lens give Identify at 15 m at the wide end and 40 m at the tele end.
Is the camera suitable for outdoor use?
Yes. It is water and dust resistant (IP67), vandal proof (IK10) and has a built-in heater to keep the image clear in rainy or snowy weather.
Can it record without an NVR?
It has a built-in memory card slot for microSD/microSDHC/microSDXC cards up to 1 TB, and supports NAS (NFS, SMB/CIFS) network storage.
Which apps and software work with it?
iVMS-4200, Hik-Connect and Hik-Central, plus ONVIF (Profile S, Profile G, Profile T, Profile M).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD7A46G2/V-XZHSY(8-32mm) |
| Manufacturer Part Number (MPN) | iDS-2CD7A46G2/V-XZHSY(8-32mm) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Shutter Time | 1 s to 1/100,000 s |
| Focal Length & FOV (8 to 32 mm) | 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture (8 to 32 mm) | F1.6 |
| DORI, wide (8 to 32 mm) | Detect: 150.3 m, Observe: 59.7 m, Recognize: 30.1 m, Identify: 15 m |
| DORI, tele (8 to 32 mm) | Detect: 400 m, Observe: 158.7 m, Recognize: 80 m, Identify: 40 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range (8 to 32 mm) | Monitoring: 100 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 140 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Privacy Mask | 8 programmable polygon privacy masks |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Audio | 1 input (line in), 3.5 mm connector; 1 output (line out), 3.5 mm connector |
| Built-In Microphone | 2 built-in microphones |
| Built-In Speaker | 1 built-in speaker, Max. power consumption: 1.5 W |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | 12 VDC, max. 100 mA |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Protection | IP67, IK10; NEMA 4X (optional) |
