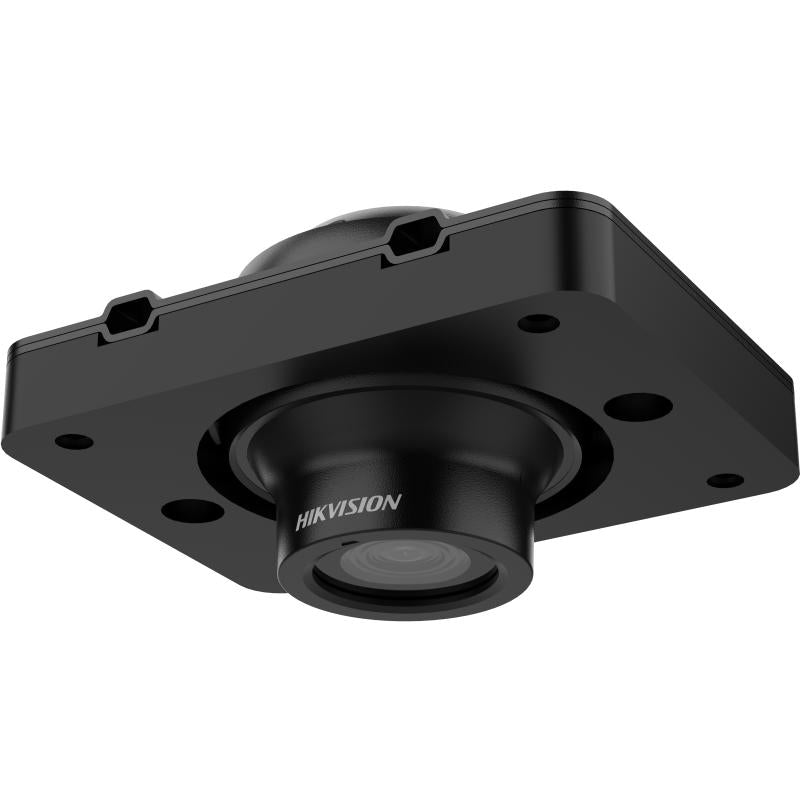

Hikvision DS-2XV6445G0-Y(2.8MM) Gantry Crane Fixed Anti-Corrosion Network Camera, 4MP, 2.8mm
About this product
The Hikvision DS-2XV6445G0-Y(2.8MM) is a 4 MP gantry crane fixed anti-corrosion network camera with a 2.8 mm fixed focal lens. It is water and dust resistant to IP68, has NEMA 4X (NEMA 250-2018) and C5 anti-corrosion protection, and supports 12 VDC power input and Power over Ethernet (PoE).
Key features
- 4 MP resolution, max. 2560 × 1440, 1/2.8" Progressive Scan CMOS
- 2.8 mm fixed focal lens: horizontal FOV 104.9°, vertical FOV 58.2°, diagonal FOV 123.0°
- IP68 water and dust resistant
- Anti-corrosion protection: NEMA 4X (NEMA 250-2018), C5
- Startup and operating conditions -40 °C to 60 °C; has a heater
- Power: 12 VDC ± 20%, max. 5 W, or PoE: IEEE 802.3af, Class 3, max. 5 W
- Perimeter protection with alarm triggering by human and vehicle target types
- 120 dB WDR with BLC, HLC, 3D DNR and Defog
Frequently asked questions
What field of view does the 2.8 mm DS-2XV6445G0-Y give?
The 2.8 mm lens gives a horizontal FOV of 104.9°, vertical FOV of 58.2° and diagonal FOV of 123.0°.
How is the DS-2XV6445G0-Y(2.8MM) powered?
By 12 VDC ± 20%, 0.4 A, max. 5 W, or PoE: IEEE 802.3af, Class 3, max. 5 W.
What corrosion and weather protection does it have?
It is water and dust resistant to IP68 and has anti-corrosion protection to NEMA 4X (NEMA 250-2018) and C5.
What temperatures can it work in?
Startup and operating conditions are -40 °C to 60 °C, humidity 95% or less (non-condensing). It has a heater.
What depth of field does the 2.8 mm DS-2XV6445G0-Y have?
The 2.8 mm version has a depth of field of 0.53 to 9.97 m.
Which software and platforms does it work with?
It works with the iVMS-4200, Hik-Connect and Hik-Central clients, and supports Open Network Video Interface (Profile S, Profile G), ISAPI, SDK and ISUP.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2XV6445G0-Y(2.8MM) |
| Manufacturer Part Number (MPN) | DS-2XV6445G0-Y(2.8MM) |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON) |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV 104.9°, vertical FOV 58.2°, diagonal FOV 123.0° |
| Depth Of Field (2.8 mm) | 0.53 to 9.97 m |
| Iris Type | Fixed |
| Angle Adjustment | Pan: -20° to 20°, tilt: -20° to 20°, rotate: 0° to 360° |
| Video Compression (main stream) | H.265/H.264/H.265+/H.264+ |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 120 dB |
| SNR | ≥ 50 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Power | 12 VDC ± 20%, 0.4 A, max. 5 W; PoE: IEEE 802.3af, Class 3, max. 5 W |
| Material | Metal |
| Dimension | 130 mm × 100 mm × 74.8 mm (5.12" × 3.94" × 2.94") |
| Weight | Approx. 0.755 kg (1.66 lb.) |
| Startup And Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Heater | Yes |
| Protection | IP68: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018), C5 |
