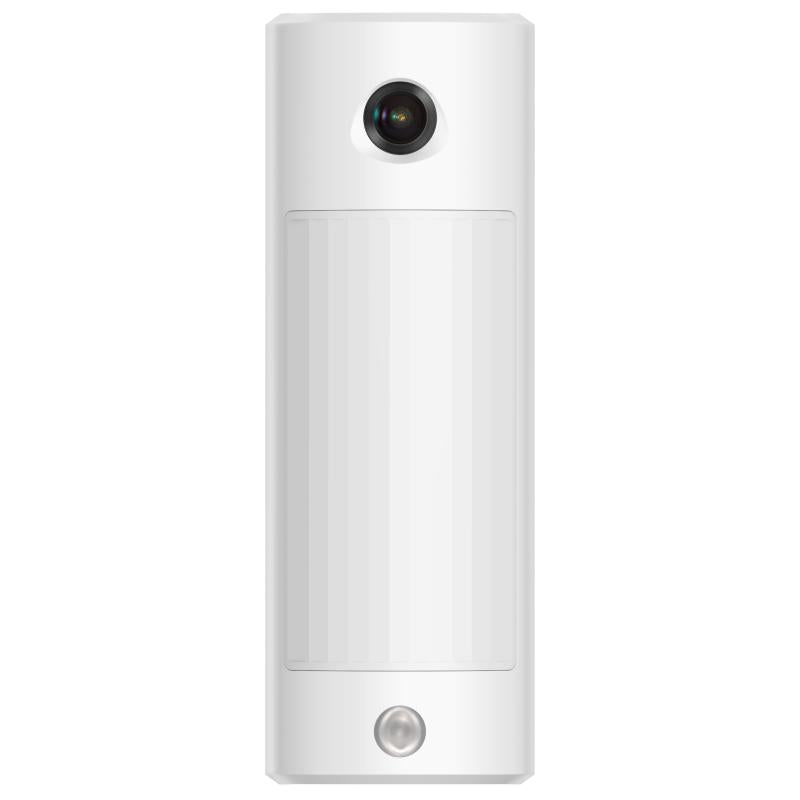

Hikvision DS-PDPC18-HM-WE Outdoor Double PIR-Camera, 18m/90° Detection, IP65
About this product
The Hikvision DS-PDPC18-HM-WE is a battery-powered outdoor double PIR-camera that combines passive infrared detection with a built-in camera for video verification, covering 18m/90°. It is built for outdoor use, with IP65 weather resistance, up to 24 kg pet immunity and CAM-X Wireless two-way RF transmission at 868MHz.
Key features
- Detection range 18m with a 90° detection angle and 118 detection zones
- Passive infrared detection with video verification
- IP65 weather resistance for outdoor application
- Up to 24 kg pet immunity
- JPEG images at 160*120, 320*240 or 640*480 with a 113°(H), 60°(V) field angle
- Infrared fill light with a 12m fill range and polarizing IR lens design
- CAM-X Wireless two-way RF at 868MHz with AES-128 encryption, 800m transmission range in free space
- Battery life up to 3 years at normal temperature on 4 × CR123A batteries
Frequently asked questions
What is the detection range of the DS-PDPC18-HM-WE?
The detection range is 18m with a 90° detection angle, across 118 detection zones.
How is it powered and how long do the batteries last?
It is battery powered by 4 × CR123A batteries. Standard battery life is up to 3 years at normal temperature, and the battery working time can be significantly reduced at low temperatures.
Can it take pictures at night?
Yes. It has an infrared fill light with a 12m fill range and switches between colour and black & white.
Does it have pet immunity?
It has up to 24 kg pet immunity.
How high should it be mounted?
It is wall-mounted at 2.5 to 3 m for a high mount or 0.8 to 1.2 m for a low mount. An adjustment bracket is included.
What is the wireless range?
Transmission range is 800m in free space, using CAM-X Wireless two-way RF at 868MHz.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PDPC18-HM-WE |
| Manufacturer Part Number (MPN) | DS-PDPC18-HM-WE |
| Detection Method | Passive Infrared; Video Verification |
| Detection Range | 18m |
| Detection Angle | 90° |
| Detection Zones | 118 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | High; Auto; Low |
| Pet Immunity | Up to 24 kg |
| White Light Filter | 20000lux |
| Tamper Protection | Front; Rear |
| Field Angle | 113°(H), 60°(V) |
| Image Type | JPEG |
| Image size | 160*120; 320*240; 640*480 |
| Fill Light | Infrared Light |
| Fill Range | 12m |
| Day/Night Switch | Color/Black & White |
| LED Indicator | Blue (Alarm) |
| Transmission Technology | CAM-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range (Free Space) | 800m |
| Enrolling Method | Power up; Remote ID; QR Code |
| Standard Battery Life | Up to 3 years at normal temperature (the battery working time can be significantly reduced at low temperatures) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 4 |
| Typical Voltage | 3V |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rating | IP65 |
| Dimension (W × H × D) | 67.6mm × 193.4mm × 65mm |
| Weight | 500g |
| Mounting Height | 2.5 to 3 m high mount; 0.8 to 1.2 m low mount |
| Mounting Method | Wall |
| Bracket | Adjustment bracket included |
