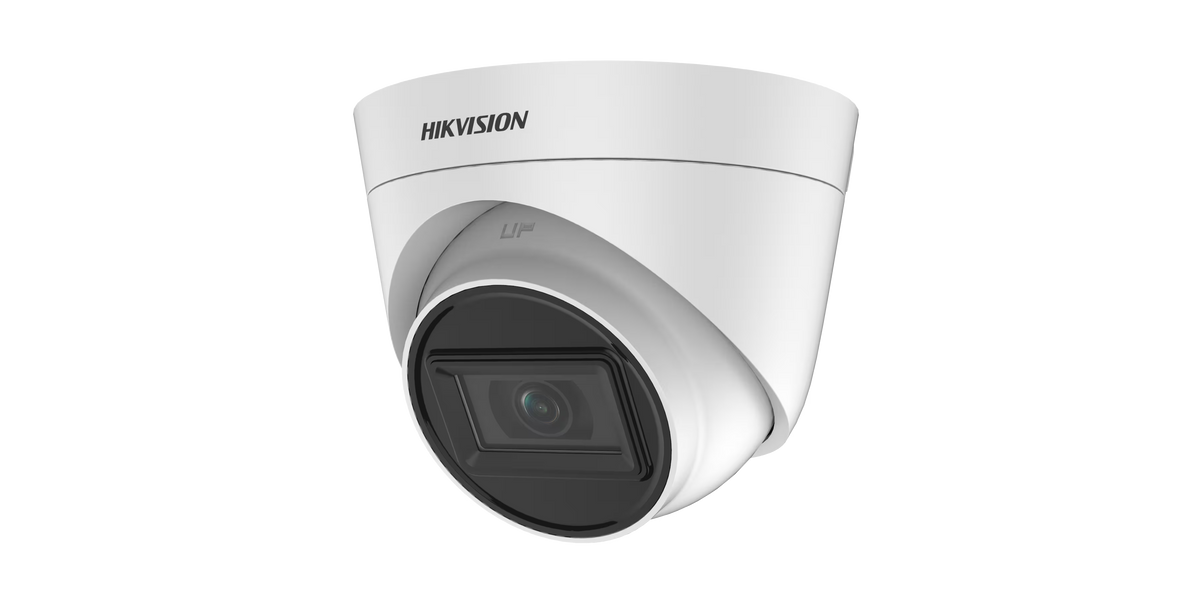

Hikvision DS-2CE78H0T-IT3E(2.8MM)(C) PoC Fixed Turret Camera, 5 MP, 2.8 mm
About this product
The Hikvision DS-2CE78H0T-IT3E(2.8MM)(C) is a 5 MP PoC fixed turret camera with a 2.8 mm fixed focal lens and up to 40 m IR distance, for HD analog CCTV systems. It delivers 2560 (H) × 1944 (V) resolution, takes 12 VDC ±25%/PoC.af power and is water and dust resistant (IP67).
Key features
- 5 MP CMOS image sensor with a maximum resolution of 2560 (H) × 1944 (V)
- 2.8 mm fixed focal lens: horizontal FOV 93°, vertical FOV 75°, diagonal FOV 124°
- Up to 40 m IR distance with Smart IR
- Minimum illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Digital WDR plus DWDR, BLC and HLC image enhancement
- Water and dust resistant (IP67)
- 12 VDC ±25%/PoC.af power, max. 3 W consumption
- 1 HD analog output, PAL/NTSC
Frequently asked questions
What power does the DS-2CE78H0T-IT3E(2.8MM)(C) need?
It takes 12 VDC ±25%/PoC.af, with consumption of max. 3 W. Hikvision recommends one power adapter to supply the power for one camera.
How far does the night vision reach?
IR range is up to 40 m, and minimum illumination is 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR.
What field of view does the 2.8 mm lens give?
Horizontal FOV 93°, vertical FOV 75° and diagonal FOV 124°.
What protection rating does it have?
It is water and dust resistant (IP67), with an operating condition of -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation).
Which mounts are offered for this camera?
Optional accessories are the DS-1272ZJ-110-TRS wall mount, DS-1275ZJ-SUS vertical pole mount, DS-1276ZJ-SUS corner mount and DS-1280ZJ-TR13 junction box.
What video output does it use?
It has 1 HD analog output, a PAL/NTSC signal system and HIKVISION-C communication.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE78H0T-IT3E(2.8MM)(C) |
| Manufacturer Part Number (MPN) | DS-2CE78H0T-IT3E(2.8MM)(C) |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° |
| Lens Mount | M12 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Video Output | 1 HD analog output |
| Material | Front Cover: Plastic, Main Body: Metal |
| Dimension | 91.0 mm × Ø109.8 mm (3.58" × Ø4.32") |
| Weight | Approx. 326 g (0.72 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ±25%/PoC.af |
| Consumption | Max. 3 W |
| IR Range | Up to 40 m |
| Protection | IP67 |
| Mounting | Wall & Ceiling |
| Colour | White |
