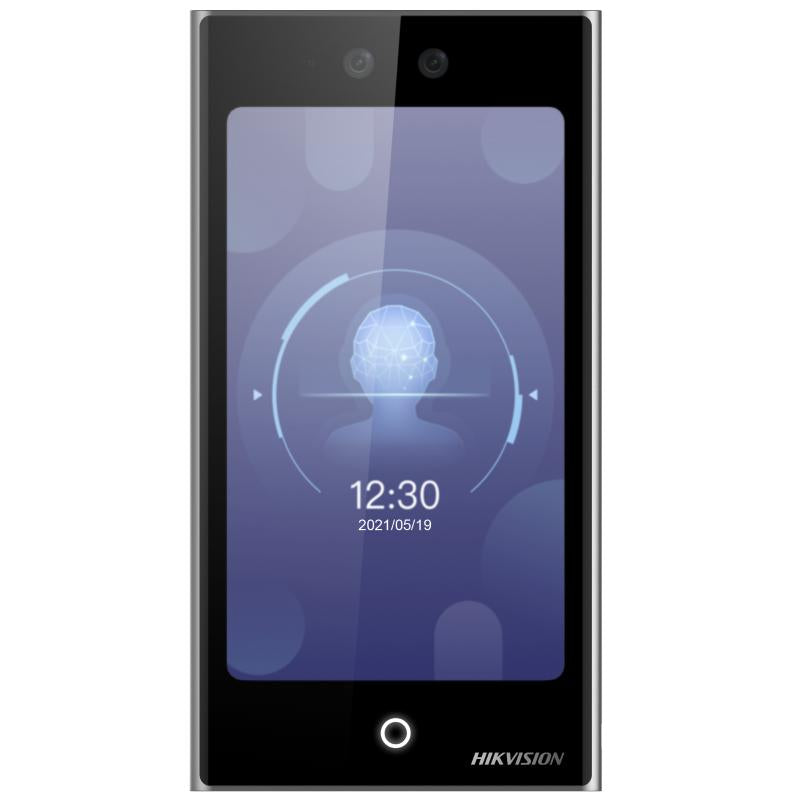

Hikvision DS-K1T673DGX-E1 Pro Face Access Terminal, 7-inch Touch Screen, IP65
About this product
The Hikvision DS-K1T673DGX-E1 is a Pro Face Access Terminal for access control, with a 7-inch LCD touch screen, a 2 Mega pixel wide-angle lens and face recognition at 0.3 to 3 m. It recognises faces in less than 0.2 s per person with a face recognition accuracy rate of ≥ 99%, reads M1, Felica and DESfire cards, and connects over TCP/IP or 3G/4G.
Key features
- 7-inch LCD touch screen with a 2 Mega pixel wide-angle lens
- Face recognition distance 0.3 to 3 m; face recognition duration less than 0.2 s per person
- Face recognition accuracy rate ≥ 99%, with face anti-spoofing and face mask detection
- Single person and multiple people (up to 5 people) recognition
- Built-in M1 card, Felica card and DESfire card reading module
- 10,000 face capacity, 50,000 card capacity and 150,000 event capacity; 10,000 fingerprint capacity with fingerprint module
- PoE (IEEE802.3at) or 12 VDC to 24 VDC/2 A power supply
- IP65 protective level, working temperature -30 °C to 60 °C
Frequently asked questions
How many users can the DS-K1T673DGX-E1 store?
10,000 faces, 50,000 cards and 150,000 events. Fingerprint capacity is 10,000 with the fingerprint module.
Which cards does it read?
M1 card, DESfire card and Felica card, at a card reading distance of 0 to 3 cm.
How is it powered?
By PoE (IEEE802.3at) or a 12 VDC to 24 VDC/2 A power supply.
What environment is it rated for?
The protective level is IP65 and the working temperature is -30 °C to 60 °C (-22 °F to 140 °F), with working humidity of 0 to 90% (no condensing).
Can it recognise people wearing masks or several people at once?
It supports face mask detection, and single person and multiple people (up to 5 people) recognition.
What access control interfaces does it have?
It has 1 Wiegand interface (customed Wiegand parameters are supported), 1 lock output, 1 exit button and 1 door contact input, and its RS-485 supports OSDP protocol version V2.1.7, Baud 19200.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K1T673DGX-E1 |
| Manufacturer Part Number (MPN) | DS-K1T673DGX-E1 |
| Operation System | Linux |
| Display Size | 7-inch |
| Display Type | Touch screen |
| Display Resolution | 600 × 1024 |
| Pixel | 2 MP |
| Lens | Dual-lens |
| Face Recognition Distance | 0.3 to 3 m |
| Face Recognition Duration | ＜ 0.2 s per person |
| Face Recognition Accuracy Rate | ≥ 99% |
| Face Capacity | 10,000 |
| Fingerprint Capacity | 10,000 (With fingerprint module) |
| Card Capacity | 50,000 |
| Event Capacity | 150,000 |
| Card Type | M1 card; DESfire card; Felica card |
| Card Reading Distance | 0 to 3 cm |
| Card Reading Duration | ＜ 1 s |
| 4G | Support |
| Frequency Band | LTE-FDD: B1/B3/B5/B7/B8/B20/B28; LTE-TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM/EDGE: B3/B8 |
| Network Interface | 1 |
| PoE | Support, IEEE802.3at |
| Alarm Input | 2 |
| Alarm Output | 1 |
| USB | 1 (For Module) |
| Audio Output Interface | 1 (3.5 mm) |
| RS-485 | 1 RS-485. Supports OSDP protocol version V2.1.7, Baud 19200 |
| Wiegand | 1 |
| Lock Output | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| Power Supply | 12 VDC to 24 VDC/2 A |
| Power Output | DC 12 V, 0.5 A |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 0 to 90% (no condensing) |
| Protective Level | IP65 |
| Dimensions | 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94") |
| Net Weight | 0.57 kg (1.26 lb) |
