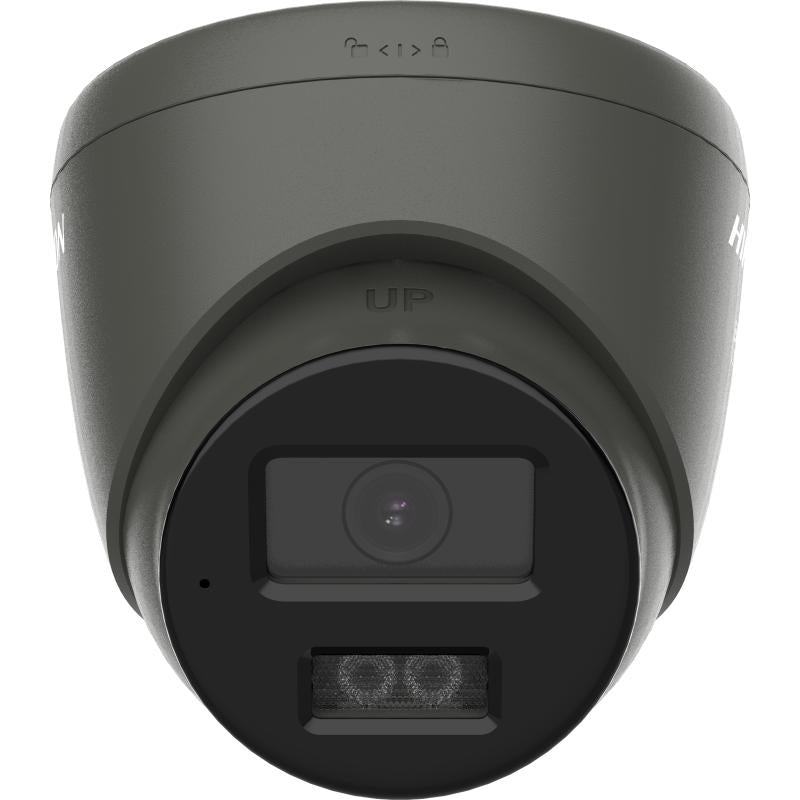

Hikvision DS-2CE72KF3T-LSYE(2.8mm)/Grey Smart Hybrid Light ColorVu Turret Camera, 3K, 2.8mm
About this product
The Hikvision DS-2CE72KF3T-LSYE(2.8mm)/Grey is a 3K Smart Hybrid Light ColorVu fixed turret camera for HD analogue CCTV, with a 2.8 mm fixed focal lens, 2960 × 1665 resolution and 1 HD analog output. It gives 24/7 color imaging with an F1.0 aperture, up to 40 m white light and 40 m IR distance, a built-in mic with audio over coaxial cable, and IP67 water and dust resistance.
Key features
- 3K, 2960 × 1665 resolution from a 3 K CMOS image sensor
- 2.8 mm fixed focal lens: horizontal FOV 112°, vertical FOV 60°, diagonal FOV 140°
- Smart hybrid light with IR and white light: IR up to 40 m, white light up to 40 m
- 24/7 color imaging with F1.0 aperture; min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- 130 dB true WDR for clear imaging against strong back light, plus 3D DNR
- Built-in mic with audio over coaxial cable
- Water and dust resistant (IP67) with NEMA 4X anti-corrosion protection
- Power: 12 VDC ± 25%/PoC.at, max. 7.7 W
Frequently asked questions
What is the night vision range of the DS-2CE72KF3T-LSYE?
The supplement light range is IR: up to 40 m and white light: up to 40 m, and smart supplement light is supported.
How is the camera powered?
Power is 12 VDC ± 25%/PoC.at, max. 7.7 W. Hikvision recommends one power adapter to supply the power for one camera.
What field of view does the 2.8 mm lens give?
Horizontal FOV 112°, vertical FOV 60° and diagonal FOV 140°.
Does it have a microphone?
Yes. It has a built-in mic, with audio over coaxial cable.
What protection ratings does it have?
It is water and dust resistant (IP67) with NEMA 4X (NEMA 250-2018) anti-corrosion protection, and its operating condition is -40 °C to 60 °C, humidity 90% or less (non-condensing).
Which mounts are offered for it?
Optional accessories are the DS-1272ZJ-110-TRS wall mount, DS-1275ZJ-SUS vertical pole mount, DS-1276ZJ-SUS corner mount, DS-1281ZJ-S inclined ceiling mount, and the DS-1280ZJ-S and DS-1280ZJ-TR13 junction boxes.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE72KF3T-LSYE(2.8mm)/Grey |
| Manufacturer Part Number (MPN) | DS-2CE72KF3T-LSYE(2.8mm)/Grey |
| Image Sensor | 3 K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Max. 16 times |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed focal lens |
| Field of view (2.8 mm) | Horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 140° |
| Lens Mount | M12 |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
| Smart Supplement Light | Yes |
| Frame Rate | TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | ≥130 dB |
| Image Enhancement | BLC, HLC, Global, HLS, WDR, Face AE |
| Privacy Mask | 4 programmable polygon privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| Video Output | 1 HD analog output |
| Built-In Microphone | Yes |
| Power | 12 VDC ± 25%/PoC.at, Max.7.7 W |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Weight | Approx. 395 g (0.87 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Protection | IP67 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Colour | Grey |
