HOCHIKI k85000 standalone gateway module, Grey

Visit Hochiki Products
Free Delivery
£ 1,608 58
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

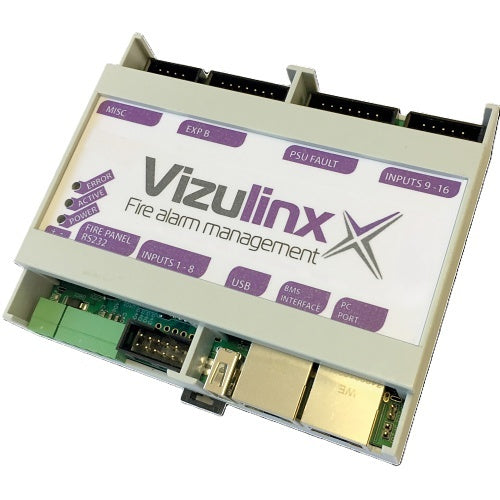

HOCHIKI k85000 is a standalone gateway module.

Vizulinx enables Kentec fire alarm systems to send status messages to other equipment which are part of Building Management (BMS) or Building Automation and Control systems using the above protocols. Modbus, up to 9999 Modbus addresses can be configured on Vizulinx relating to Panel, Zone and Loop device status. For addressable systems 500 Panel addresses, 500 zone addresses and 1000 pre-configured loop device addresses are provided free with the Vizulinx module.

Additional Modbus addresses can be unlocked on the Vizulinx module by purchase of a Modbus license update code, each license will unlock an additional 1000 Modbus addresses. Vizulinx provides 2000 zone object IDs, 128 panel object IDs and 500 object IDs for loop devices (Separate Object IDs are allocated to addresses and sub-addresses). Additional object IDs for loop addresses and sub-addresses can be unlocked by purchase of a BACnet upgrade license code, each license code will provide an additional 500 object IDs (BACnet currently available for Taktis systems only) Vizulinx can be used with Kentec's full range of Addressable and Conventional fire alarm systems.

Key features

  • Multi-functional gateway for use with Kentec fire alarm systems
  • Configuration through embedded web server, no additional software required
  • EZ Configuration feature enables quick and easy starting setup
  • Remote notification of fire alarm system status and events via e-mail or SMS
  • SMS and E-mail messages are user customisable to suit requirements
  • Easy register/unregister for SMS notifications
  • System integration capabilities via Modbus TCP/IP or BACnet IP protocols (BACnet support currently only available for Taktis systems)
  • Downloadable diagnostic information
  • Field upgradeable firmware
  • Compatible with the current range of Kentec addressable and conventional panels using IP, Serial or GPIO connectivity

If you are matching this to an existing installation, work from the k85000 part number rather than the description.

£ 1,608 58
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,608.58 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
HOCHIKI
Manufacturer Part Number
k85000
Miscellaneous
Compatibility
Conventional Panels Using Ip, Current Range Of Addressable, Latitude fire alarm systems, Serial Or Gpio Connectivity
Physical characteristics
Colour
Grey
Depth
32.00mm
Height
90.00mm
Width
106.00mm
Power description
Input Voltage
9-30V DC
Technical information
Device Supported
Building Automation, Building Management Systems, Control Systems, Fire alarm panels, Mobile devices
Attributes
Compatibility
Conventional Panels Using Ip, Current Range Of Addressable, Latitude fire alarm systems, Serial Or Gpio Connectivity
Device Supported
Building Automation, Building Management Systems, Control Systems, Fire alarm panels, Mobile devices
Input Voltage
9-30V DC
Specifications
Miscellaneous
Physical characteristics
Power description
Technical information
Attributes

Specifications

Brand Name HOCHIKI
Manufacturer Part Number k85000

Miscellaneous

Compatibility Conventional Panels Using Ip, Current Range Of Addressable, Latitude fire alarm systems, Serial Or Gpio Connectivity

Physical characteristics

Colour Grey
Depth 32.00mm
Height 90.00mm
Width 106.00mm

Power description

Input Voltage 9-30V DC

Technical information

Device Supported Building Automation, Building Management Systems, Control Systems, Fire alarm panels, Mobile devices

Attributes

Compatibility Conventional Panels Using Ip, Current Range Of Addressable, Latitude fire alarm systems, Serial Or Gpio Connectivity
Device Supported Building Automation, Building Management Systems, Control Systems, Fire alarm panels, Mobile devices
Input Voltage 9-30V DC

HOCHIKI k85000 standalone gateway module

HOCHIKI k85000 standalone gateway module, Grey

Who this is for

For the installer — this is the standalone gateway module supplied under HOCHIKI part number k85000. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a standalone gateway module made by HOCHIKI. The part number k85000 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this standalone gateway module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact standalone gateway module I have been quoted? Check the manufacturer part number k85000 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against k85000 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
