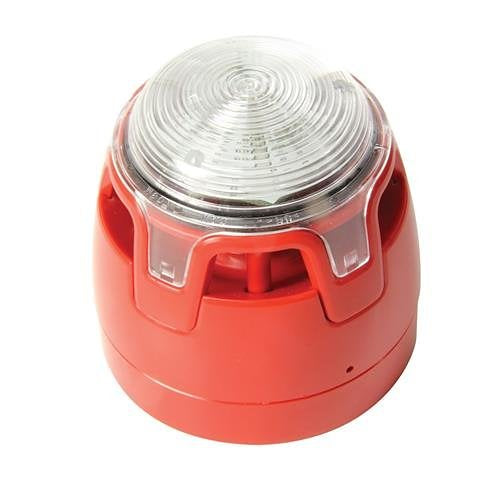

KAC by Honeywell CWSS-RR-S5 horn/strobe, Red
About this product
KAC by Honeywell CWSS-RR-S5 is a horn/strobe.
Red electronic sounder with flashing light with red LED. Complete with standard base. Ideal for applications where a dual alarm signalling is asked.
The new electronic sounders have been designed with a new design that it includes: a folded horn, a high performance LED, an advanced optics and an innovative lens. These characteristics allow to the device an excellent sound quality, an exceptional omnidirectional light cover and the lowest impact on the current consumption, guaranteeing quality, reliability and a long duration. CPR certified in accordance with EN 54-23.
Operating voltage: 12 to 29VDC. Middle absorption: 49mA @ 29VDC W Class tone 7. Sound power up to 107dB @ 1m (tone 23).
Number of tones: 32. Volume setting: medium or high. Cable ending: 0.5 - 2.5mm2.
Body material: PC/ABS. Lens material: PC.
Key features
- Signal range up to 8.9m room diameter for ceiling mounting
- Signal range up to 6.0m room width for wall mounting
- Volume adjustable to 2 levels at the device
If you are matching this to an existing installation, work from the CWSS-RR-S5 part number rather than the description.
Specifications
General information
Technical information
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | KAC by Honeywell |
|---|---|
| Manufacturer Part Number | CWSS-RR-S5 |
| Product Type | Horn/Strobe |
General information
| Application/Usage | Alarm, Fire, Signaling |
|---|
Technical information
| Light Colour | Red |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Sound Emission | 107dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Lens Colour | Clear |
Power description
| Input Voltage | 29V DC |
|---|
Product information
| Bulb/Tube Type | LED Bulb |
|---|
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Input Voltage | 29V DC |
|---|
