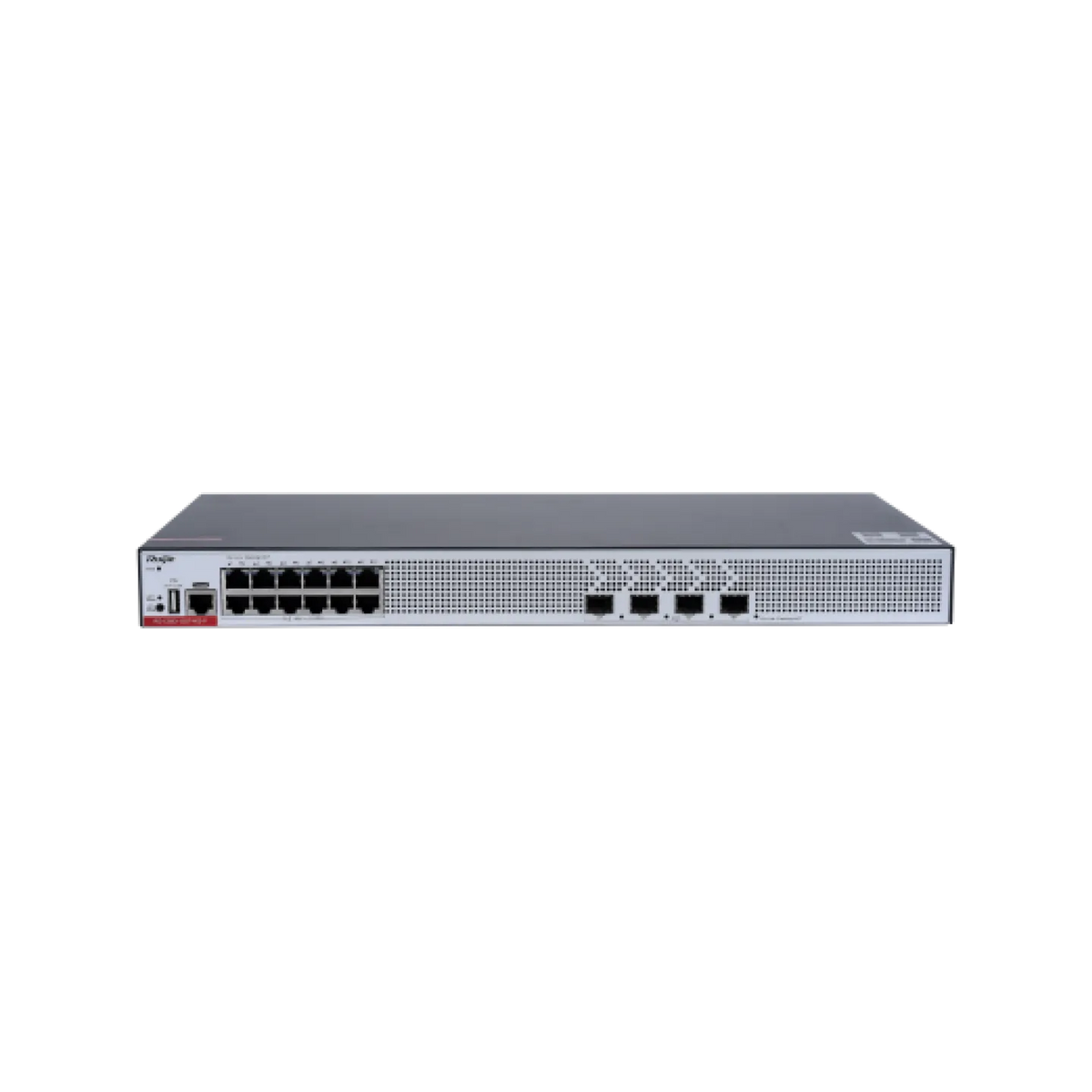

Ruijie RG-CS83-12GT4XS-P Layer 3 Managed Access Switch, 12-Port PoE+, 4-Port 10GE Uplink
About this product
The Ruijie RG-CS83-12GT4XS-P is a 12-port 1GE RJ45 Layer 3 managed access switch with PoE+ and a 4-port 10GE uplink, with a built-in power module delivering a maximum of 370 W PoE output. It is for gigabit access in business systems such as medical care, libraries and exhibition centres, powering PoE devices from all 12 RJ45 ports.
Key features
- 12 x 10/100/1000BASE-T ports, all supporting PoE/PoE+ (IEEE802.3af/at)
- 4 x 1GE/10GE SFP+ ports that support 1GE SFP and 10GE SFP+ transceivers
- Maximum 370 W PoE output, with up to 30 W per PoE port
- Built-in power module (1 x fixed power supply), 100 V AC to 240 V AC input
- Layer 3 switching with 104 Gbps switching capacity and 78 Mpps packet forwarding rate
- Up to 4 VSU members
- 1 RU rack height, 442 mm x 220 mm x 43.6mm
- 1 x RJ45 console port and 1 x USB 2.0 port
Frequently asked questions
How much PoE power does the RG-CS83-12GT4XS-P provide?
Each PoE port provides up to 30 W of power, and the maximum PoE power is 370 W. The number of powered devices it supports depends on the power the switch can supply and the actual power consumption of each device.
Which ports support PoE?
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at): that is 12 x 10/100/1000BASE-T ports.
What transceivers do the uplink ports take?
The 4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers.
Does it need an external power supply?
No. It has a built-in power module (1 x fixed power supply) with AC input, rated 100 V AC to 240 V AC, 50 Hz to 60 Hz.
Is it rack-mountable?
It has a 1 RU rack height and measures 442 mm x 220 mm x 43.6mm (W x D x H).
Is it a Layer 3 switch?
Yes. It is a Layer 3 managed access switch, with 6,000 IPv4 unicast routes and 2,000 IPv6 unicast routes.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-CS83-12GT4XS-P |
| Manufacturer Part Number (MPN) | RG-CS83-12GT4XS-P |
| Fixed service ports | 12 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested) |
| Packet forwarding rate | 78 Mpps |
| Switching capacity | 104 Gbps |
| CPU | Dual-core CPU, each core with the clock speed of 1.0 GHz |
| Flash memory | 512 MB (storing boot software for 1+1 boot redundancy) |
| Memory | 1 GB |
| Switch buffer | 1.5 MB |
| MAC address table size | 16,000 |
| ARP table size | 4,000 |
| Number of IPv4 unicast routes | 6,000 |
| Number of IPv6 unicast routes | 2,000 |
| Number of VSU members | 4 |
| Unit dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Rack height | 1 RU |
| Unit weight | 3.3 kg (7.28 lbs) |
| Power supply | 1 x fixed power supply |
| Power input | AC input; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input current: 6 A |
| Maximum output power | Built-in power supply: 409 W |
| Maximum power consumption | 35 W (non-PoE); 405 W (PoE full load) |
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
| PoE output power | Each PoE port provides up to 30 W of power; the maximum power is 370 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Operating altitude | 0 m to 5,000 m |
| Cable hot swapping | Cable hot swapping for all ports |
