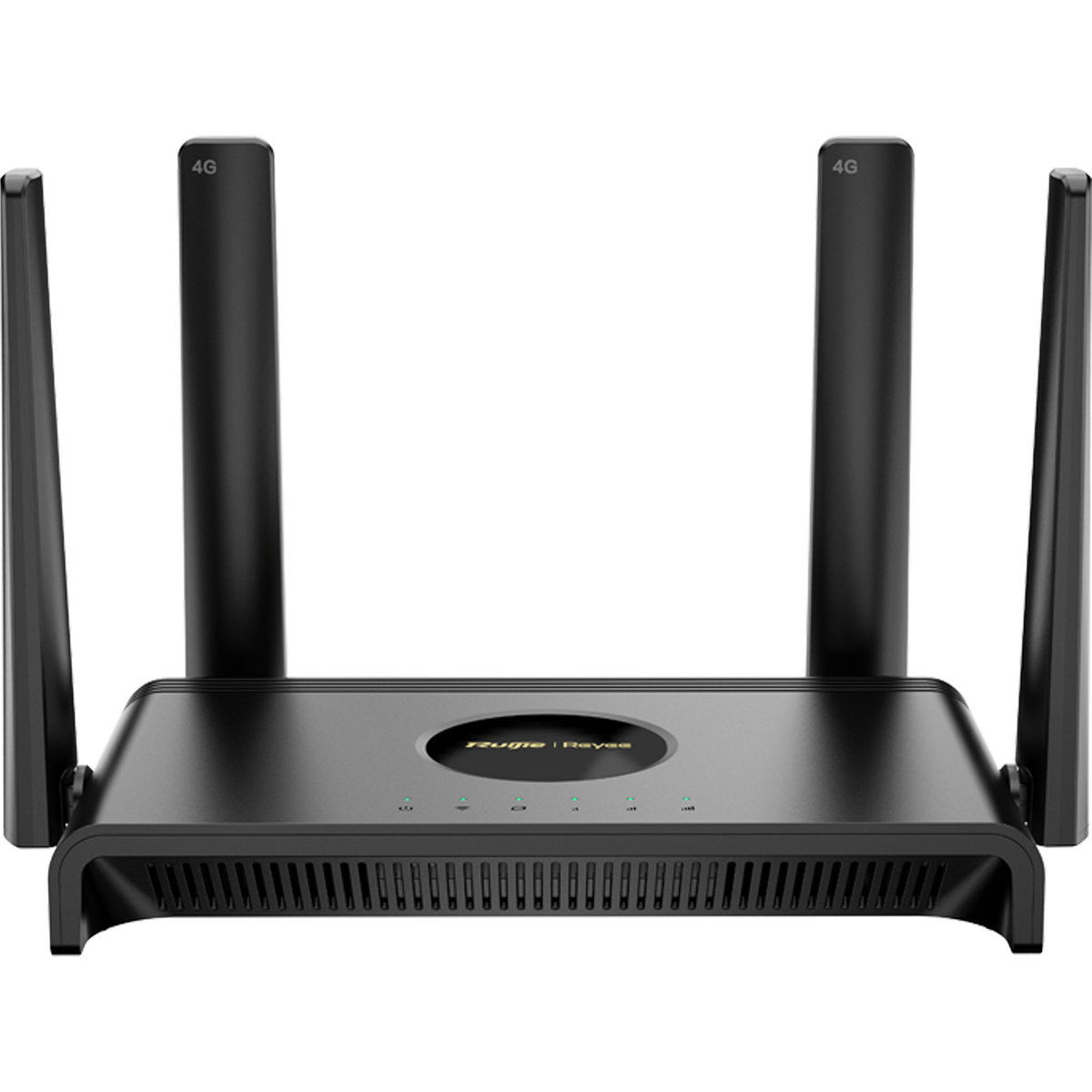

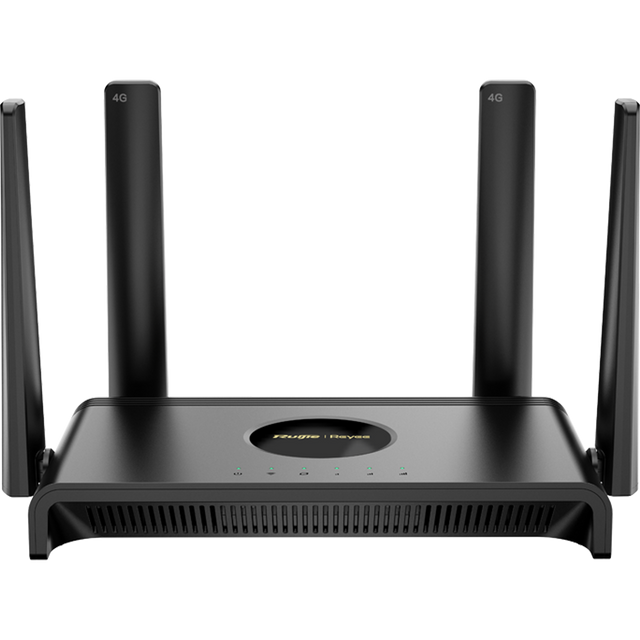

Ruijie RG-EW300T N300 Wireless 4G LTE Router, Wi-Fi 4, 4 External Antennas
About this product
The Ruijie RG-EW300T is an N300 wireless 4G LTE router with Wi-Fi 4 (IEEE 802.11n) and a maximum Wi-Fi speed of 2.4 GHz, 300 Mbps. Its stated scenarios are homes (villas, large-sized apartments, bungalows), SOHO offices and small shops.
Key features
- Wi-Fi 4 (IEEE 802.11n) with a maximum Wi-Fi speed of 2.4 GHz, 300 Mbps
- 4G LTE across WCDMA, LTE-FDD and LTE-TDD bands
- 4 x external omnidirectional antennas with 4 dBi antenna gain (2.4 GHz)
- 3 x 10/100BASE-T LAN ports and 1 x 10/100BASE-T WAN port
- Cloud-managed, with Ruijie Cloud management support
- AP mode, wired repeater mode, wireless repeater mode and WISP mode
- Parental control and guest Wi-Fi
- Power supply DC 12 V 1 A
Frequently asked questions
Which Wi-Fi standard does the RG-EW300T use?
It uses Wi-Fi 4 (IEEE 802.11n), with a maximum Wi-Fi speed of 2.4 GHz, 300 Mbps.
Which 4G bands does it support?
WCDMA: B1/B5/B8; LTE-FDD: B1/B3/B5/B7/B8/B20/B28; LTE-TDD: B38/B40/B41.
How is the RG-EW300T powered?
The power supply is DC 12 V 1 A, and 1 power adapter is in the box.
How many devices can connect at once?
The recommended number of concurrent clients is 8 (2.4 GHz), and the maximum number of concurrent clients is 16(2.4 GHz).
What wired ports does it have?
It has 3 x 10/100BASE-T LAN ports and 1 x 10/100BASE-T WAN port.
Does it support Ruijie Cloud management?
Yes. Ruijie Cloud management is supported and the router is cloud-managed.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-EW300T |
| Manufacturer Part Number (MPN) | RG-EW300T |
| Wi-Fi standard | Wi-Fi 4 (IEEE 802.11n) |
| Max. Wi-Fi speed | 2.4 GHz, 300 Mbps |
| Max. speed (LTE-FDD) | TX 150Mbps RX50Mbps |
| Max. speed (LTE-TDD) | TX130Mbps RX 30Mbps |
| WCDMA bands | B1/B5/B8 |
| LTE-FDD bands | B1/B3/B5/B7/B8/B20/B28 |
| LTE-TDD bands | B38/B40/B41 |
| MIMO | 2.4 GHz, 2 x 2 |
| Antenna | 4 x external omnidirectional antennas |
| Antenna gain (2.4 GHz) | 4 dBi |
| LAN ports | 3 x 10/100BASE-T ports |
| WAN ports | 1 x 10/100BASE-T port |
| Internet access mode | PPPoE, DHCP, Static IP, WISP |
| Recommended number of concurrent clients | 8 (2.4 GHz) |
| Maximum number of concurrent clients | 16(2.4 GHz) |
| RAM | 64 MB |
| Ruijie Cloud management | Yes |
| Power supply | DC 12 V 1 A |
| Product dimensions (W x D x H) | 175mm*100mm*25mm (6.89in. x 4.72 in. x 1.06 in.) |
| Weight | 0.25 kg (0.55 lbs) (without packaging materials) |
| Operating temperature | 0 ° C to +40 ° C (32 ° F to 104 ° F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Certification | CE, CB |
