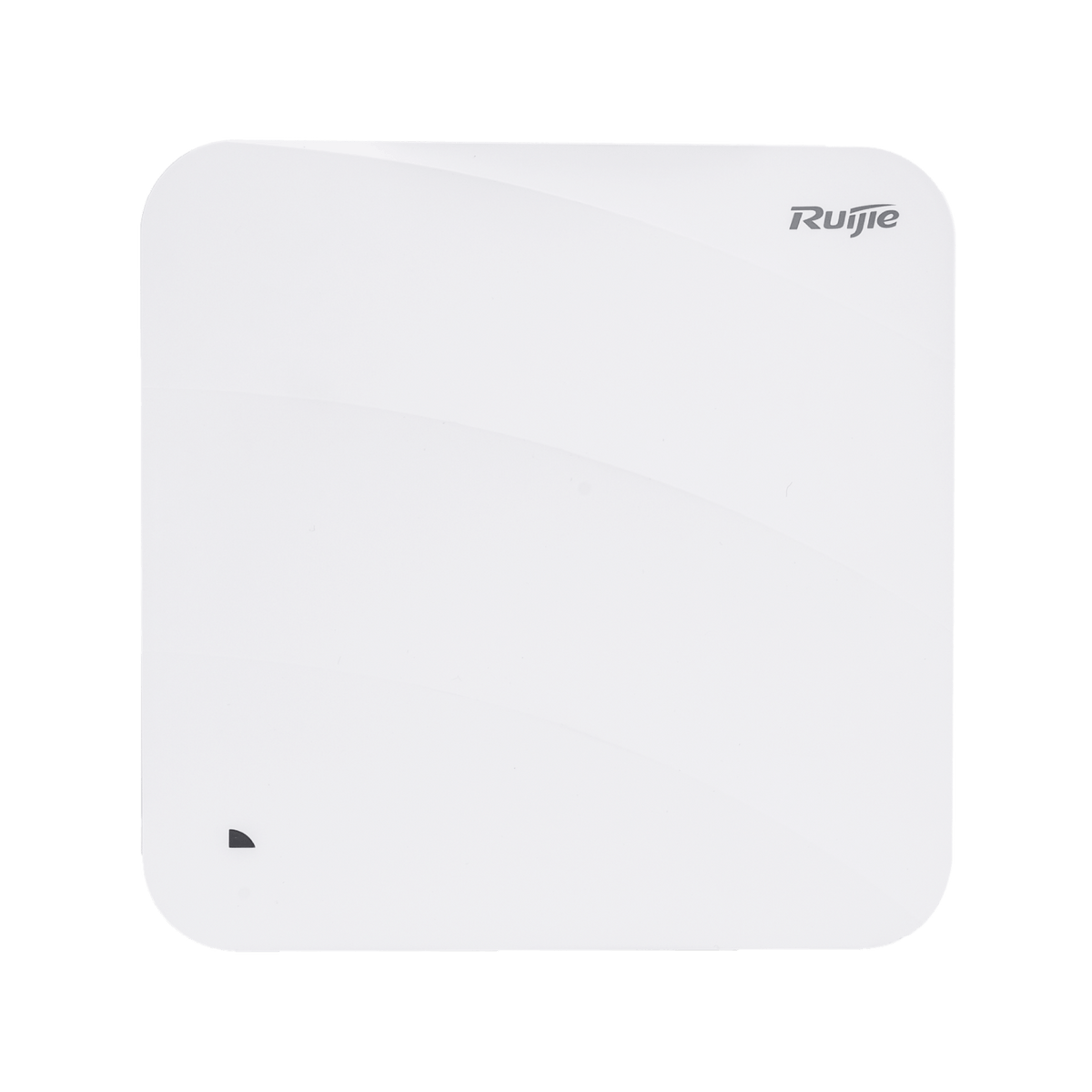

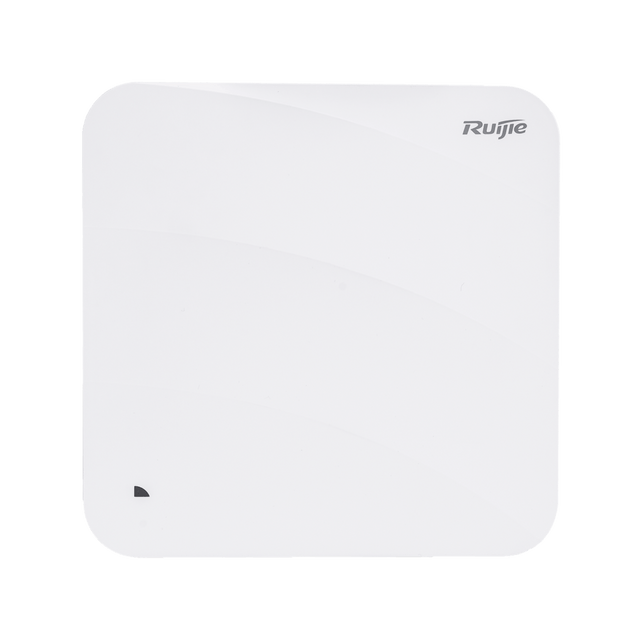

Ruijie RG-AP820-L(V3) Wi-Fi 6 AX3000 Indoor Access Point, Up to 2.976 Gbps, 2.5GE SFP Port
About this product
The Ruijie RG-AP820-L(V3) is a Wi-Fi 6 AX3000 dual-radio indoor access point with a combined peak data rate of 2.976 Gbps, a 2.5GE SFP port and a choice of PoE (IEEE 802.3af) or 48 V DC power. Ruijie designs it for indoor scenarios in the higher education, government, general education, finance and business sectors.
Key features
- Wi-Fi 6 (802.11ax) dual-radio design with up to four spatial streams: Radio 1 at 2.4 GHz and Radio 2 at 5 GHz, each 2x2 MIMO
- Combined peak data rate of 2.976 Gbps, with 160 MHz support
- 1 x 10/100/1000BASE-T port with PoE input (IEEE 802.3af)
- 1 x 2.5GE SFP port, compatible with 1GE modules
- Built-in omnidirectional antennas (two 2.4 GHz and two 5 GHz), 5 dBi gain on each band
- Bluetooth 5.1 radio
- Fat/Fit/Cloud mode switchover; in Cloud mode it can be managed through Ruijie Cloud
- Wall or ceiling mounting, with a mounting bracket supplied with the main unit
Frequently asked questions
How is the Ruijie RG-AP820-L(V3) powered?
By PoE over LAN 1 from power source equipment that complies with IEEE 802.3af, or by a 48 V DC/0.6 A input over a DC connector (the DC power adapter needs to be purchased separately). If both are present, DC power is preferred.
What wired ports does the RG-AP820-L(V3) have?
1 x 10/100/1000BASE-T port with PoE input, 1 x 2.5GE SFP port compatible with 1GE modules, and 1 x RJ45 console port (serial console port).
Can it be mounted on a ceiling?
Yes. It is a Wall/Ceiling-mount AP, and a mounting bracket comes with the main unit.
Is the RG-AP820-L(V3) suitable for outdoor use?
It is an indoor AP, rated IP41, with an operating temperature of –10°C to +50°C.
How many clients can connect to it?
The maximum number of associated clients is 256, which varies with the environment; Ruijie recommends a maximum of 120 active devices per AP.
Can it be managed from the cloud?
Yes. It supports Fat/Fit/Cloud mode switchover, and in Cloud mode it can be managed through Ruijie Cloud.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-AP820-L(V3) |
| Manufacturer Part Number (MPN) | RG-AP820-L(V3) |
| Wi-Fi standards | IEEE 802.11a/b/g/n/ac and 802.11ax |
| Radio design | Dual-radio and up to four spatial streams; Radio 1: 2.4 GHz, two spatial streams, 2x2 MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MIMO |
| Combined peak data rate | 2.976 Gbps |
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz: 5 dBi; 5 GHz: 5 dBi |
| Bluetooth | Bluetooth 5.1 |
| Fixed service port | 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af standard (PoE) |
| PoE-PD | 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) |
| SFP port | 1 x 2.5GE SFP port, compatibility with 1GE module |
| Fixed management port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| DC power input | 48 V DC/0.6 A over DC connector (2.1 mm/5.5 mm center-positive circular plug); DC power adapter purchased separately |
| Maximum power consumption | 12.95 W |
| Idle mode power consumption | 6 W |
| Operating temperature | –10°C to +50°C |
| Operating humidity | 0% RH to 95% RH (non-condensing) |
| IP rating | IP41 |
| Unit dimensions (W x D x H) | 220 mm x 220 mm x 49 mm |
| Unit weight | Main unit: 0.6 kg; Mounting bracket: 0.2 kg |
| Mounting | Wall/Ceiling-mount (mounting bracket supplied with the main unit) |
| Lock option | Kensington lock and securing latch |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C |
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 256 (varies with the environment) |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Management modes | Fat/Fit/Cloud mode switchover |
