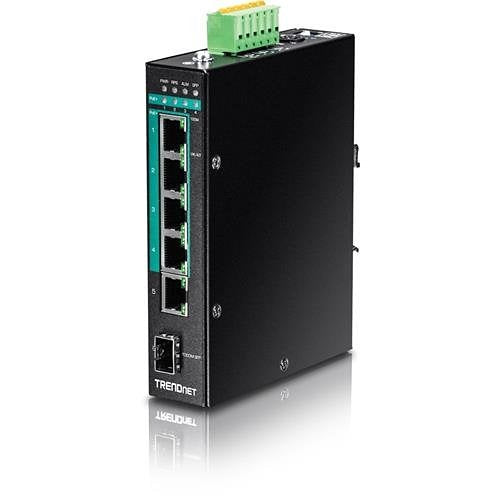

TRENDnet TI-PG541 PoE+ din-rail switch, DIN Rail Mount

Visit Data & Networking
Free Delivery
£ 287 88
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

TRENDnet TI-PG541 is a PoE+ din-rail switch.

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements.

An alarm output can be triggered by a primary and/or redundant power failure. Full PoE+ Power Budget

Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget

Network Ports

5 x Gigabit Ethernet ports (port 1-4 PoE/PoE+) and 1 x SFP slot

Integrated DIN-Rail Mount

IP30 rated metal enclosure with integrated DIN-rail mounting hardware

Key features

  • FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The unmanaged PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget and allows for a 12 Gbps switching capacity.
  • REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: models: 48VDC3000 / TI-S24048 / TI-S12048)

If you are matching this to an existing installation, work from the TI-PG541 part number rather than the description.

£ 287 88
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£287.88 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
TRENDnet
Manufacturer Part Number
TI-PG541
Product Type
Ethernet Switch
General information
Packaged Quantity
1
Technical information
Media Type Supported
Twisted Pair
Network Switch Type
Unmanaged
Power Consumption
130.0000W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
1
Number of Total Expansion Slots
1
Interfaces/ports
Modular
No
Network (RJ-45)
Yes
Total Number of Network Ports
5
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet), 100 Mbps (Fast Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical characteristics
Depth
99.00mm
Height
135.00mm
Material
Metal
Width
30.00mm
Power description
Frequency
60Hz
Input Voltage
240V AC
Plug/Connector Type
Terminal Block
PoE (RJ-45) Port
No
PoE Budget
120W
Power over Ethernet (PoE)
Yes
Power Source
AC Power
Redundant Power Supply
Yes
Product information
Length
134.62mm
Mount Type
DIN Rail Mount
Miscellaneous
Environmental status
Yes
Features
1 x Gigabit port, 1 x Gigabit SFP slot_x000D_ _x000D_ , 12 Gbps switching capacity_x000D_ _x000D_ , 120 W full PoE+ power budget_x000D_ _x000D_ , 4 x Gigabit PoE+ (802.3at) ports, -40 to 70 oC (-40 to 158 oF) operating temperature range_x000D_ _x000D_ , Alarm output triggered by power failure_x000D_ _x000D_ , Dual redundant power inputs with overload current protection_x000D_ _x000D_ , Hardened IP30 rated metal switch with integrated DIN-Rail mount_x000D_ _x000D_ , Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)_x000D_ _x000D_
Package Contents
5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Multi-Language Quick Installation Guide DIN-Rail kit
Attributes
Features
1 x Gigabit port, 1 x Gigabit SFP slot_x000D_ _x000D_ , 12 Gbps switching capacity_x000D_ _x000D_ , 120 W full PoE+ power budget_x000D_ _x000D_ , 4 x Gigabit PoE+ (802.3at) ports, -40 to 70 oC (-40 to 158 oF) operating temperature range_x000D_ _x000D_ , Alarm output triggered by power failure_x000D_ _x000D_ , Dual redundant power inputs with overload current protection_x000D_ _x000D_ , Hardened IP30 rated metal switch with integrated DIN-Rail mount_x000D_ _x000D_ , Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)_x000D_ _x000D_
Input Voltage
240V AC
Package Contents
5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Multi-Language Quick Installation Guide DIN-Rail kit
Power Source
AC Power
Number of SFP Slots
1
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name TRENDnet
Manufacturer Part Number TI-PG541
Product Type Ethernet Switch

General information

Packaged Quantity 1

Technical information

Media Type Supported Twisted Pair
Network Switch Type Unmanaged
Power Consumption 130.0000W

I/o expansions

Expansion Slot Type SFP
Number of SFP Slots 1
Number of Total Expansion Slots 1

Interfaces/ports

Modular No
Network (RJ-45) Yes
Total Number of Network Ports 5

Management & protocols

Manageable No

Media & performance

Network Technology 1000Base-T, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet), 100 Mbps (Fast Ethernet)
Layer Supported 2
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical characteristics

Depth 99.00mm
Height 135.00mm
Material Metal
Width 30.00mm

Power description

Frequency 60Hz
Input Voltage 240V AC
Plug/Connector Type Terminal Block
PoE (RJ-45) Port No
PoE Budget 120W
Power over Ethernet (PoE) Yes
Power Source AC Power
Redundant Power Supply Yes

Product information

Length 134.62mm
Mount Type DIN Rail Mount

Miscellaneous

Environmental status Yes
Features 1 x Gigabit port, 1 x Gigabit SFP slot_x000D_ _x000D_ , 12 Gbps switching capacity_x000D_ _x000D_ , 120 W full PoE+ power budget_x000D_ _x000D_ , 4 x Gigabit PoE+ (802.3at) ports, -40 to 70 oC (-40 to 158 oF) operating temperature range_x000D_ _x000D_ , Alarm output triggered by power failure_x000D_ _x000D_ , Dual redundant power inputs with overload current protection_x000D_ _x000D_ , Hardened IP30 rated metal switch with integrated DIN-Rail mount_x000D_ _x000D_ , Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)_x000D_ _x000D_
Package Contents 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Multi-Language Quick Installation Guide DIN-Rail kit

Attributes

Features 1 x Gigabit port, 1 x Gigabit SFP slot_x000D_ _x000D_ , 12 Gbps switching capacity_x000D_ _x000D_ , 120 W full PoE+ power budget_x000D_ _x000D_ , 4 x Gigabit PoE+ (802.3at) ports, -40 to 70 oC (-40 to 158 oF) operating temperature range_x000D_ _x000D_ , Alarm output triggered by power failure_x000D_ _x000D_ , Dual redundant power inputs with overload current protection_x000D_ _x000D_ , Hardened IP30 rated metal switch with integrated DIN-Rail mount_x000D_ _x000D_ , Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)_x000D_ _x000D_
Input Voltage 240V AC
Package Contents 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Multi-Language Quick Installation Guide DIN-Rail kit
Power Source AC Power
Number of SFP Slots 1

TRENDnet TI-PG541 PoE+ din-rail switch

TRENDnet TI-PG541 PoE+ din-rail switch, DIN Rail Mount

Who this is for

For the installer — this is the PoE+ din-rail switch supplied under TRENDnet part number TI-PG541. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PoE+ din-rail switch made by TRENDnet. The part number TI-PG541 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE+ din-rail switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE+ din-rail switch I have been quoted? Check the manufacturer part number TI-PG541 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TI-PG541 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
