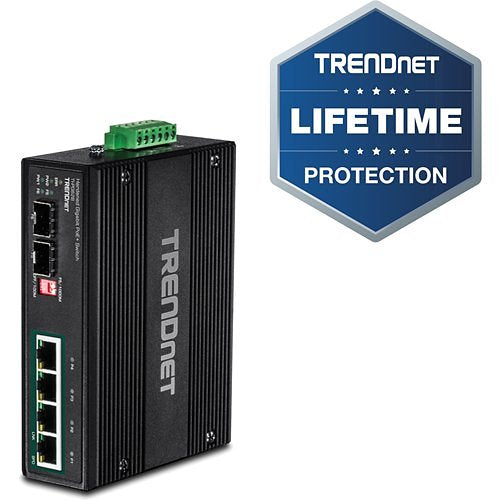

TRENDnet TI-PG62B PoE+ din-rail switch, DIN Rail, Wall Mount
About this product
TRENDnet TI-PG62B is a PoE+ din-rail switch from the TI range.
TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.
PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices. Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay. Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F). Network Ports
4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Key features
- 60 - 120W power budget
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
If you are matching this to an existing installation, work from the TI-PG62B part number rather than the description.
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | TRENDnet |
|---|---|
| Manufacturer Part Number | TI-PG62B |
| Product Series | TI |
| Product Type | Ethernet Switch |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 5.7600W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Shared SFP Slot | No |
Interfaces/ports
| Modular | Yes |
|---|---|
| Total Number of Network Ports | 6 |
| Uplink Port | No |
Management & protocols
| Manageable | No |
|---|
Media & performance
| Network Technology | 1000Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 228.60mm |
|---|---|
| Height | 76.20mm |
| Material | Metal |
| Width | 177.80mm |
Power description
| Input Voltage | 48V DC |
|---|---|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120W |
| Power over Ethernet (PoE) | Yes |
| Power Source | DC Power |
| Redundant Power Supply | Yes |
Product information
| Length | 142.20mm |
|---|---|
| Mount Type | DIN Rail Mount, Wall Mount |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto store and forward architecture, Automatic address learning and address aging, Auto-Negotiation, Dual redundant power inputs, ESD 6KV support, Hardened components rated for extreme temperatures, Supports 12/24/48 power inputs, Voltage booster boost up to 55V DC |
Attributes
| Input Voltage | 48V DC |
|---|---|
| Package Contents | 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V; Quick Installation Guide; Removable Terminal Block; DIN-rail and Wall Mount Kit |
| Power Source | DC Power |
| Number of SFP Slots | 2 |
