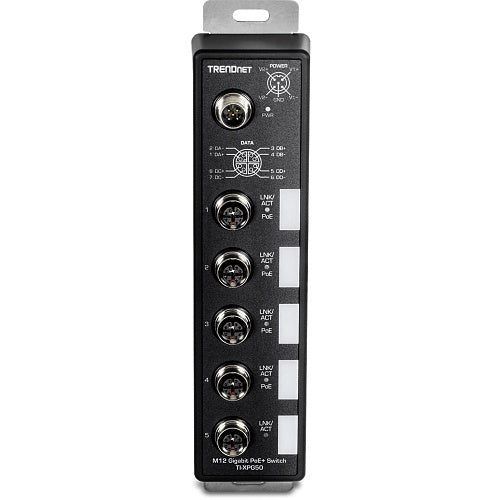

TRENDnet TI-XPG50 PoE+ railway switch, Black

Free Delivery
£ 366 78
(Incl. VAT)

About this product

TRENDnet TI-XPG50 is a PoE+ railway switch.

TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° to 75° C (-40° to 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.

Key features

  • 4x M12 (X-code) Gigabit PoE+ ports
  • 1x M12 (X-code) Gigabit port
  • 1x M12 (A-code) Power port
  • PoE Power budget; 120W at 56V DC
  • EN50155 Compliant for rolling stock and railway applications
  • Hardened IP67 outdoor rated metal housing
  • 10Gbps Switching capacity
  • Operating temperature range of -40° to 75°C (-40° to 167°F)
  • Includes DIN-Rail and wall mount kits

If you are matching this to an existing installation, work from the TI-XPG50 part number rather than the description.

£ 366 78
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£366.78 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
TRENDnet
Manufacturer Part Number
TI-XPG50
Product Type
Switch
Technical information
Media Type Supported
Twisted Pair
Power Consumption
5.0000W
Interfaces/ports
Network (RJ-45)
Yes
Number of Ports
5
Receptacles
4 x M12 (X-code) Gigabit PoE+ Ports, M12 (A-code) Power Port, M12 (X-code) Gigabit Port
Total Number of Network Ports
5
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
10 Gbps
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Physical characteristics
Colour
Black
Height
28.00mm
Width
50.00mm
Power description
Input Voltage
48-56V DC
PoE (RJ-45) Port
Yes
PoE Budget
120W
Power over Ethernet (PoE)
Yes
Power Source
DC Power, PoE (Power over Ethernet)
Product information
Length
220.00mm
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental certification
CE, FCC, IEC EN 60950-1
Environmental status
Yes
Package Contents
5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch Quick Installation Guide Wall mount and DIN-Rail kit
Attributes
Input Voltage
48-56V DC
Package Contents
5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch Quick Installation Guide Wall mount and DIN-Rail kit
Power Source
DC Power, PoE (Power over Ethernet)

Specifications

Brand Name TRENDnet
Manufacturer Part Number TI-XPG50
Product Type Switch

Technical information

Media Type Supported Twisted Pair
Power Consumption 5.0000W

Interfaces/ports

Network (RJ-45) Yes
Number of Ports 5
Receptacles 4 x M12 (X-code) Gigabit PoE+ Ports, M12 (A-code) Power Port, M12 (X-code) Gigabit Port
Total Number of Network Ports 5

Management & protocols

Manageable No

Media & performance

Network Technology 1000Base-T, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 10 Gbps
Layer Supported 2
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Physical characteristics

Colour Black
Height 28.00mm
Width 50.00mm

Power description

Input Voltage 48-56V DC
PoE (RJ-45) Port Yes
PoE Budget 120W
Power over Ethernet (PoE) Yes
Power Source DC Power, PoE (Power over Ethernet)

Product information

Length 220.00mm
Mount Type DIN Rail Mount, Wall Mount

Miscellaneous

Environmental certification CE, FCC, IEC EN 60950-1
Environmental status Yes
Package Contents 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch Quick Installation Guide Wall mount and DIN-Rail kit

Attributes

Input Voltage 48-56V DC
Package Contents 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch Quick Installation Guide Wall mount and DIN-Rail kit
Power Source DC Power, PoE (Power over Ethernet)

TRENDnet TI-XPG50 PoE+ railway switch

TRENDnet TI-XPG50 PoE+ railway switch, Black

Who this is for

For the installer — this is the PoE+ railway switch supplied under TRENDnet part number TI-XPG50. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PoE+ railway switch made by TRENDnet. The part number TI-XPG50 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE+ railway switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE+ railway switch I have been quoted? Check the manufacturer part number TI-XPG50 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TI-XPG50 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
