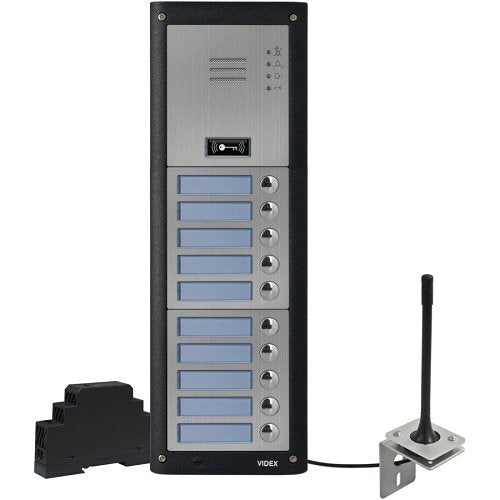

Videx GSM4K-10S/4G intercom system, Blue
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Videx GSM4K-10S/4G is an intercom system from the 4000 range.
Introducing the new 4G GSM PRO audiokits, further expanding the flexibilty that has made Videx's GSM series so popular. Designed to work on a 4G mobile network, but are also backwards compatible with both 2G and 3G networks. They are available as 1 or 2 button kits, and can be expanded up to 50 call buttons using our modular design.
They are manufactured in the familiar modular 4000 series range in a 316 grade stainless steel matt finish (suffix /M), also available in a gun metal grey finish (suffix /BL). The GSM audiokits include the 4903 keypad with blue back-lit buttons, that when connected via the RS485 bus, can be programmed remotely. With RS485 bus connectivity the GSM kits can be expanded to a networkable access control system (up to a total of 8 devices) which can include both proximity using additional 4850R proximity readers and coded access with additional 4903 keypads.
Key features
- 10 BUTTON SURFACE & PROXIMITY GSM KIT (PRO) - 4G
If you are matching this to an existing installation, work from the GSM4K-10S/4G part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | GSM4K-10S/4G |
| Product Series | 4000 |
| Product Type | Intercom System |
General information
| Application/Usage | Door Entry |
|---|
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Number of Buttons | 10 |
| Number of Sub Stations Supported | 8 |
| Wiring Type | 4-Wire |
Physical characteristics
| Colour | Blue |
|---|---|
| Material | Stainless Steel |
Power description
| Input Voltage | 12V DC |
|---|---|
| Power Source | AC Power |
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | 4000 x Surface Flush Back Box Range |
|---|
Attributes
| Compatibility | 4000 x Surface Flush Back Box Range |
|---|---|
| Input Voltage | 12V DC |
| Package Contents | GSM PRO 4000 GSM4K-10S/4G Intercom System; Slim Line 12VDC, 1.25A Power Supply; GSM Antenna (Including L Bracket and Appropriate Fixings); Keypad Module |
| Power Source | AC Power |
