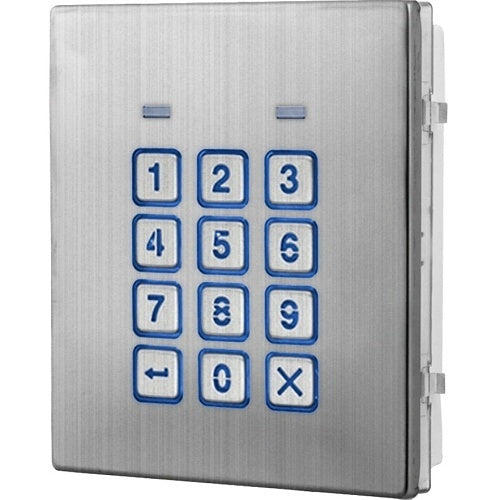

Videx 4901/M keypad module, Blue

Free Delivery
£ 195 59
(Incl. VAT)

About this product

Videx 4901/M is a keypad module from the 4000 range.

A selection of 4000 series codelock modules with blue backlit buttons which are able to operate as a standalone keypad or can be incorporated as part of an audio or video door entry system. There are three optional codelocks available: the 4901 codelock module which is completely standalone, the 4902 and 4903 that can both operate as a standalone codelock or be networked via an RS485 bus. In the case of the 4902 it can be networked with other 4902 codelocks only, whereas the 4903 can be networked with the GSMPRO (4810) audio module (as well as other 4903 keypads and 4850R proximity readers).

The 4901 codelock has 3 relays and allows for 3 codes (1 code per relay) while the 4902 codelock has 2 relays and allows for up to 1000 codes that can be assigned to one or both of the relays. The 4903 has 2 relays and allows for 2 codes (1 code per relay) when in standalone mode, however when connected via the RS485 bus to the GSMPRO audio module access codes can be expanded up to 400 permanent codes or 32 temporary codes that can be assigned to one or both of the relays. The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds (for the 4901 and 4903), 1-255 seconds (for the 4902) or set to 00 for latching.

They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons. Each codelock is available in a mirror stainless steel finish, a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL).

Key features

  • Blue backlit button codelock modules
  • Available in mirror stainless steel finish, a matt 316 grade stainless steel finish or gun metal grey finish
  • Modules are compatible with both surface and flush 4000 series back boxes
  • Can operate as standalone keypads
  • 4902 and 4903 keypads are also networkable via RS485
  • User friendly programming menu with audible reassurance tones
  • 4-8 Digit programmable access codes
  • 2-Programmable relays (4902 and 4903), 3-programmable relays (4901)

If you are matching this to an existing installation, work from the 4901/M part number rather than the description.

£ 195 59
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£195.59 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
4901/M
Product Series
4000
Product Type
Security Keypad
General information
Application/Usage
Door Entry
Technical information
Device Supported
Door Entry Panel, Intercom System
Physical characteristics
Colour
Blue
Depth
30.00mm
Width
103.00mm
Product information
Length
120.00mm
Miscellaneous
Additional Information
Operational modes: As standalone keypad Number of codes: 3 (1 code per relay) Number of relays: 3x CO, NO & NC dry contacts (24Vac/dc @ 3A max) PTE Inputs: 2x switched 0V inputs for relay 1 & 2 only
Attributes
Compatibility
Incorporated as part of an audio or video door entry system.
Device Supported
Door Entry Panel, Intercom System
Additional Information
Operational modes: As standalone keypad Number of codes: 3 (1 code per relay) Number of relays: 3x CO, NO & NC dry contacts (24Vac/dc @ 3A max) PTE Inputs: 2x switched 0V inputs for relay 1 & 2 only
Specifications
General information
Technical information
Physical characteristics
Product information
Miscellaneous
Attributes

Specifications

Brand Name Videx
Manufacturer Part Number 4901/M
Product Series 4000
Product Type Security Keypad

General information

Application/Usage Door Entry

Technical information

Device Supported Door Entry Panel, Intercom System

Physical characteristics

Colour Blue
Depth 30.00mm
Width 103.00mm

Product information

Length 120.00mm

Miscellaneous

Additional Information Operational modes: As standalone keypad Number of codes: 3 (1 code per relay) Number of relays: 3x CO, NO & NC dry contacts (24Vac/dc @ 3A max) PTE Inputs: 2x switched 0V inputs for relay 1 & 2 only

Attributes

Compatibility Incorporated as part of an audio or video door entry system.
Device Supported Door Entry Panel, Intercom System
Additional Information Operational modes: As standalone keypad Number of codes: 3 (1 code per relay) Number of relays: 3x CO, NO & NC dry contacts (24Vac/dc @ 3A max) PTE Inputs: 2x switched 0V inputs for relay 1 & 2 only

Videx 4901/M keypad module, blue

Videx 4901/M keypad module, Blue

Who this is for

For the installer — this is the keypad module supplied under Videx part number 4901/M. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a keypad module made by Videx. The part number 4901/M is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this keypad module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact keypad module I have been quoted? Check the manufacturer part number 4901/M against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 4901/M answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Videx 4901/M keypad module, blue
Videx

Videx 4901/M keypad module, Blue

£195.59

Videx 4901/M is a keypad module from the 4000 range.

A selection of 4000 series codelock modules with blue backlit buttons which are able to operate as a standalone keypad or can be incorporated as part of an audio or video door entry system. There are three optional codelocks available: the 4901 codelock module which is completely standalone, the 4902 and 4903 that can both operate as a standalone codelock or be networked via an RS485 bus. In the case of the 4902 it can be networked with other 4902 codelocks only, whereas the 4903 can be networked with the GSMPRO (4810) audio module (as well as other 4903 keypads and 4850R proximity readers).

The 4901 codelock has 3 relays and allows for 3 codes (1 code per relay) while the 4902 codelock has 2 relays and allows for up to 1000 codes that can be assigned to one or both of the relays. The 4903 has 2 relays and allows for 2 codes (1 code per relay) when in standalone mode, however when connected via the RS485 bus to the GSMPRO audio module access codes can be expanded up to 400 permanent codes or 32 temporary codes that can be assigned to one or both of the relays. The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds (for the 4901 and 4903), 1-255 seconds (for the 4902) or set to 00 for latching.

They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons. Each codelock is available in a mirror stainless steel finish, a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL).
