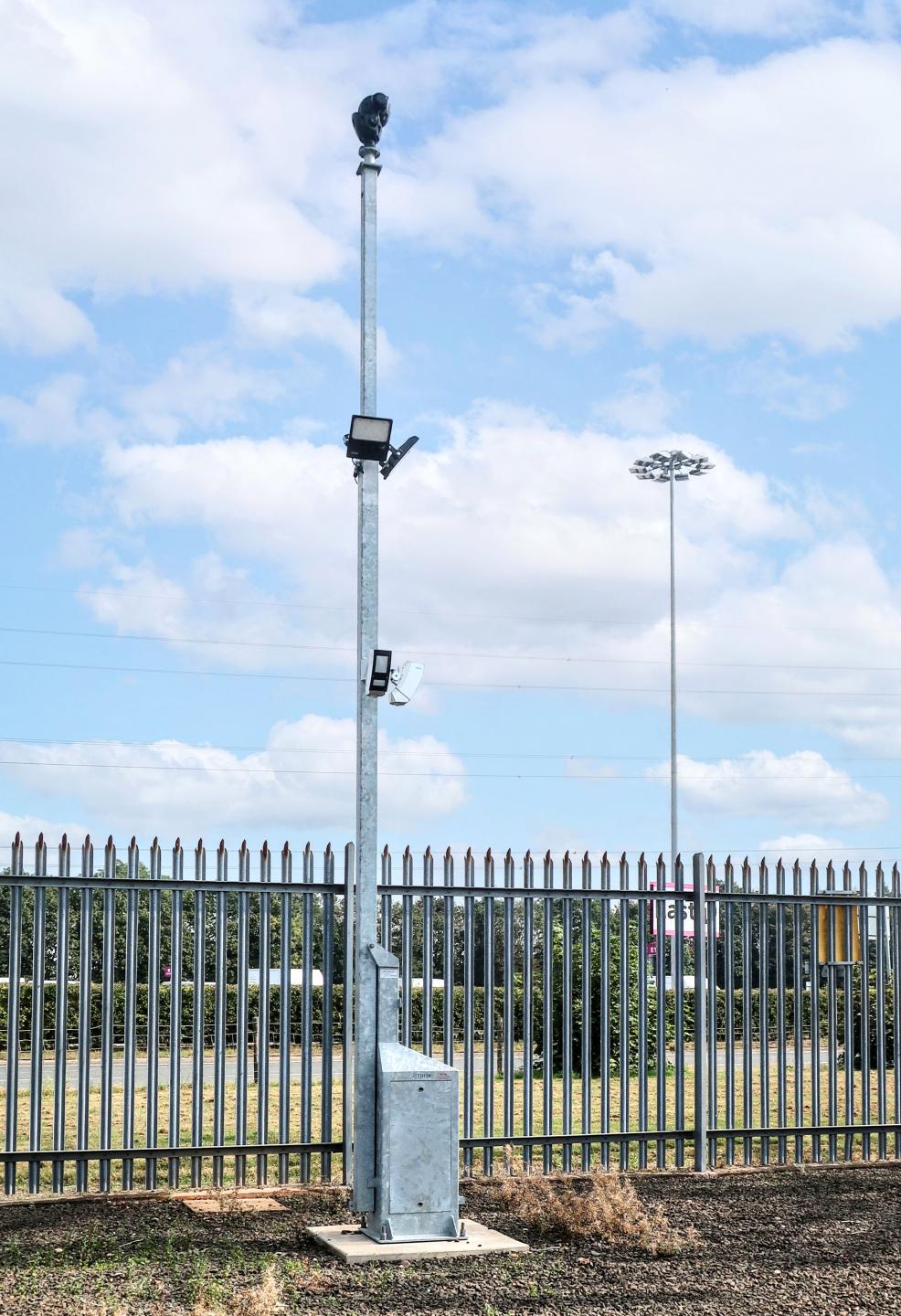

Altron AW1697/6 Cabinet Based Square Section Column, 6m, Tilt-down
About this product
The Altron AW1697/6 is a 6 m tilt-down, cabinet based square section CCTV column whose base post has a built in cabinet for mounting equipment, so cameras can be maintained at ground level. It carries up to 25 kg of equipment at the top and is for installations where the public has access, with an internal padlock facility.
Key features
- Height: 6 m
- Max equipment weight at top: 25 kg
- Built in cabinet in the base post, door aperture 600x350 (HxW)
- Tilt-down design for camera maintenance at ground level
- Internal padlock facility and internal cabling
- Modular construction for ease of assembly and installation on site
- High tensile steel, hot dip galvanised after fabrication
- Winch part number DW1000/97
Frequently asked questions
How tall is the AW1697/6 column?
It is 6 m high.
How much camera equipment can it carry?
Up to 25 kg at the top, with a maximum equipment surface area of 0.2 m2. Where payloads are greater, Altron asks to be contacted.
How much space is needed behind the column to tilt it down?
The column rear clearance when tilting is 1700 mm.
What size is the cabinet door opening?
The door aperture size is 600x350 mm (HxW).
Which winch does the column use?
The winch part number is DW1000/97.
How is the column stopped from being tilted by someone else?
It is fixed in the vertical position with an M20/M24 nut on the retaining bolt inside the secure access hatch, which is then padlockable to stop unauthorised tilting.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | AW1697/6 |
| Manufacturer Part Number (MPN) | AW1697/6 |
| Height | 6 m |
| Max equip weight at top | 25 kg |
| Max equip surface area | 0.2 m2 |
| Post size (A) | 120 mm |
| Lower section size (B) | 100 mm |
| Upper section size (C) | 80 mm |
| Extension length D1 | 1.5 m |
| Door aperture size (HxW) | 600x350 mm |
| Column rear clearance when tilting (G) | 1700 mm |
| Winch part number | DW1000/97 |
| Product weight | 192 kg |
| Camera mounting plate | Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD |
| Construction | High tensile steel, hot dip galvanised after fabrication |
| Section shape | Square |
| Environment | Outdoor |
