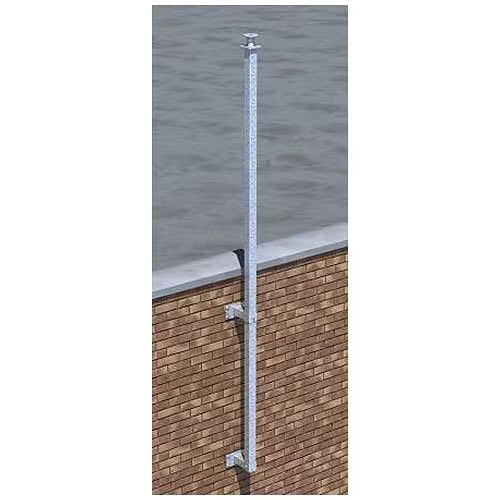

Altron ACP1/300 Wall Mounted Fixed Camera Pole, 3m, 300mm Stand-Off
About this product
The Altron ACP1/300 is a 3m wall mounted fixed camera pole with 300mm stand-off brackets, for gaining an elevated view point from existing structures. It is produced in high tensile steel, hot dip galvanised, with standard 101.6 PCD camera mount fixing holes.
Key features
- 3m wall pole with 300mm stand-off brackets
- High tensile steel, hot dip galvanised
- Rigid construction provides a stable platform for cameras
- Mounting plate with 8 No. ø8.5 holes equi-spaced on a ø101.6 PCD
- Max headload 25 kgs - 0.25m2
- Fixings in stainless steel grade A2
- Adjustable top bracket and fixed bottom bracket
- M25 conduit exit
Frequently asked questions
How tall is the ACP1/300 and how far does it stand off the wall?
It is a 3m wall pole with 300mm stand-off brackets.
What camera fixing does it have?
Standard 101.6 PCD camera mount fixing holes: a mounting plate with 8 No. ø8.5 holes equi-spaced on a ø101.6 PCD.
What head load can it carry?
Max headload 25 kgs - 0.25m2.
What walls can it be fixed to?
The loading and bolt fixing are designed for good brickwork with no less than the minimum spacing on wall brackets. For breeze block type walls and brick walls in poor condition, bolting through the wall and employing a structural engineer is recommended.
What bracket spacing should be kept?
Dimension 'A' of 0.3m is to be maintained for upper bracket fixing strength, and Dimension 'D' of 1m for camera stability and strength of fixings into the wall.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | ACP1/300 |
| Manufacturer Part Number (MPN) | ACP1/300 |
| Height (H) | 3m |
| Stand-off brackets | 300mm |
| Dimension 'A' (maintain for upper bracket fixing strength) | 0.3m |
| Dimension 'D' (maintain for camera stability and wall fixing strength) | 1m |
| Material | High tensile steel |
| Finish | Hot dip galvanised |
| Fixings | Stainless steel grade A2 |
| Camera mounting plate | 8 No. ø8.5 holes equi-spaced on a ø101.6 PCD |
| Max headload | 25 kgs - 0.25m2 |
| Conduit exit | M25 |
| Top bracket | Adjustable for correct spacing |
| Bottom bracket | Fixed |
| Mounting | Wall |
| Environment | Outdoor |
| Colour | Silver |
