Aritech DC109 magnetic contact, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

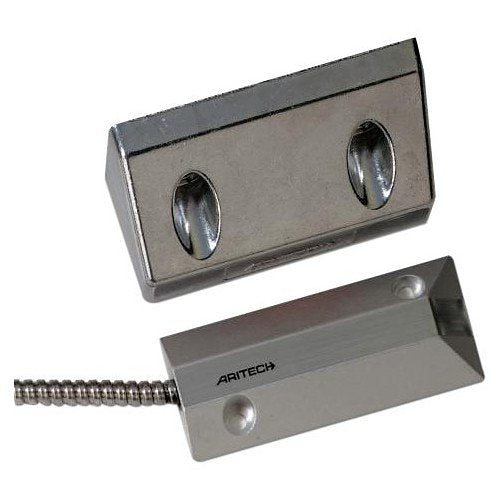

Aritech DC109 is a magnetic contact from the DC range.
This page covers Aritech part DC109. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, packaged quantity, connectivity technology among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Door. This is the figure the record carries for this exact part number.
- Packaged Quantity: 2. Parts in the same family can differ here, so check the code rather than the family.
- Connectivity Technology: Wired. It is listed for this part number, not for the range as a whole.
- Standard Gap: 75.00mm. Where your specification names a figure, compare it against this one before ordering.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
- Colour: Silver. Where your specification names a figure, compare it against this one before ordering.
- Contact Material: Aluminium. It is listed for this part number, not for the range as a whole.
- Depth: 38.00mm. This is the figure the record carries for this exact part number.
- Height: 89.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Material: Aluminium. It is listed for this part number, not for the range as a whole.
- Width: 38.00mm. Where your specification names a figure, compare it against this one before ordering.
- Length: 2000.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Mount Type: Surface Mount. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the magnetic contact role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Mounting: Recorded as surface mount.
- Typical application: Door.
If you are matching this to an existing installation, work from the DC109 part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | DC109 |
| Product Series | DC |
| Product Type | Magnetic Contact |
General information
| Application/Usage | Door |
|---|---|
| Packaged Quantity | 2 |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 75.00mm |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Silver |
|---|---|
| Contact Material | Aluminium |
| Depth | 38.00mm |
| Height | 89.00mm |
| Material | Aluminium |
| Width | 38.00mm |
Power description
| Power Source | AC Power |
|---|
Product information
| Contact Type | Closed Loop, NC (Normally Closed) |
|---|---|
| Length | 2000.00mm |
| Mount Type | Surface Mount |
Miscellaneous
| Features | Tamper Integrity Loop |
|---|
Attributes
| Contact Type | Closed Loop, NC (Normally Closed) |
|---|---|
| Package Contents | DC109 Contact; Tamper Loop |
| Power Source | AC Power |
