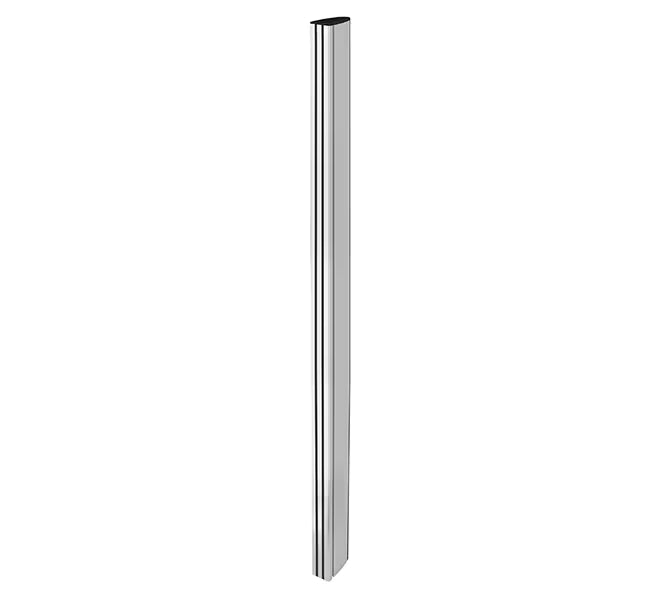

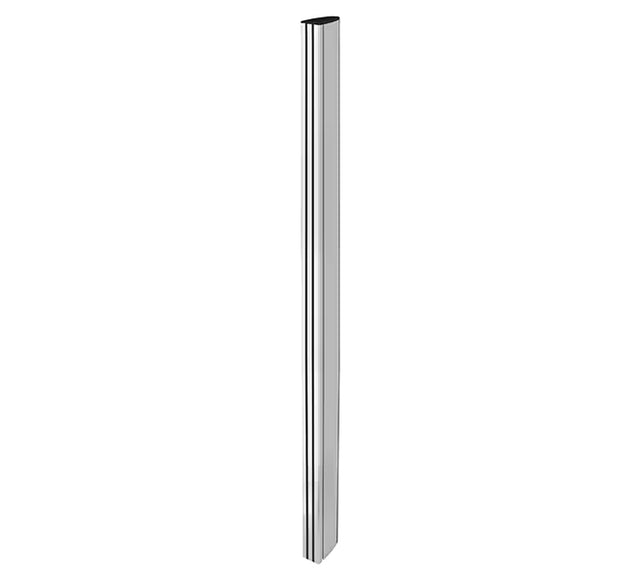

B-Tech BT8380-180/S V3 System X Vertical Support Column, Aluminium, Silver
About this product
The B-Tech BT8380-180/S V3 is a System X vertical support column for trolley and floor stand installations, made from aluminium and designed to support single or multiple horizontal mounting rails. Integrated cable management gives a neat and tidy finish, and columns can be joined for installs up to 4.2m tall.
Key features
- Aluminium column, sturdy yet lightweight
- Supports single or multiple horizontal mounting rails
- Integrated cable management for a neat and tidy finish
- Joins to further columns with BT8380-EXTV for installs up to 4.2m tall
- Compatible bases: BT8380-BASE / FFB / FSB / SHB / AFB
- Spare fixings included to attach a B-Tech ‘collar compatible’ accessory, such as shelves, directly to the column
- Plastic end caps, cable covers and trim strips
- TUV certified
Frequently asked questions
How tall can a System X stand built with this column be?
Columns can be joined together with the BT8380-EXTV extension kit for installs up to 4.2m tall.
Which bases does the BT8380 column work with?
The compatible bases are BT8380-BASE / FFB / FSB / SHB / AFB.
How is a horizontal mounting rail fixed to the column?
Use the BT8380-JPK / BT8380-JPT fixing kit to mount a horizontal rail.
What is the maximum load?
Max load is dependent on the other components used in the install.
Can a shelf be attached directly to the column?
Yes. Spare fixings are included to attach a B-Tech ‘collar compatible’ accessory, such as shelves, directly to the column.
Specifications
Specifications
| Brand | B-Tech |
|---|---|
| Model | BT8380-180/S V3 |
| Manufacturer Part Number (MPN) | BT8380-180/S V3 |
| Material | Aluminium |
| Max load | Dependent on other components used |
| Fixing kit to mount a horizontal rail | BT8380-JPK / BT8380-JPT |
| Extension kit to join columns | BT8380-EXTV |
| Maximum joined height | Up to 4.2m |
| Compatible bases | BT8380-BASE / FFB / FSB / SHB / AFB |
| Cable management | Integrated |
| Colour | Silver |
| EAN | 5019318501029 |
| Certification | TUV certified |
| Environment | Indoor |
