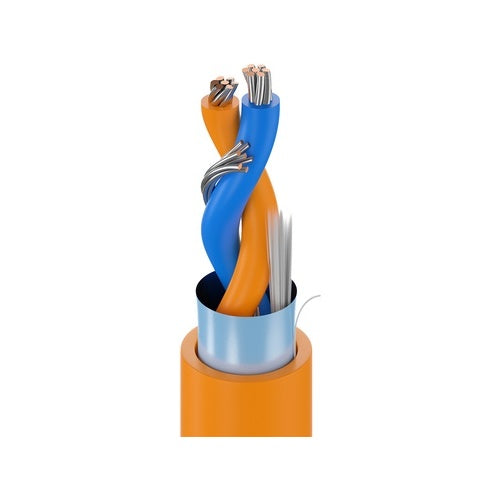

Belden 3076F 0031000 multi-pair cable, 305.00m

Please note: this is a non-returnable item (excluding faulty goods)

Belden 3076F 0031000 is a multi-pair cable from the Data Cables range.

This page covers Belden part 3076F 0031000. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover american wire gauge, cable type, impedance among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• American Wire Gauge: 18AWG. This is the figure the record carries for this exact part number.
• Cable Type: Fieldbus. Parts in the same family can differ here, so check the code rather than the family.
• Impedance: 100Ohm. It is listed for this part number, not for the range as a whole.
• Jacket Type: Standard. Where your specification names a figure, compare it against this one before ordering.
• Number of Pairs: 1. Parts in the same family can differ here, so check the code rather than the family.
• Shielding: Present on this part number. The record states it as a property of this part rather than of the wider range. This is the figure the record carries for this exact part number.
• Solid or Stranded: Stranded. Where your specification names a figure, compare it against this one before ordering.
• RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. It is listed for this part number, not for the range as a whole.
• WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
• Cable Length: 305.00m. Parts in the same family can differ here, so check the code rather than the family.
• Colour: Orange. It is listed for this part number, not for the range as a whole.
• Material: Polyethylene, PVC, Tinned Copper. Where your specification names a figure, compare it against this one before ordering.
• Environmental certification: RoHS 2, WEEE. Parts in the same family can differ here, so check the code rather than the family.
• Indoor or outdoor use: Outdoor. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the multi-pair cable role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for outdoor use.

If you are matching this to an existing installation, work from the 3076F 0031000 part number rather than the description.
