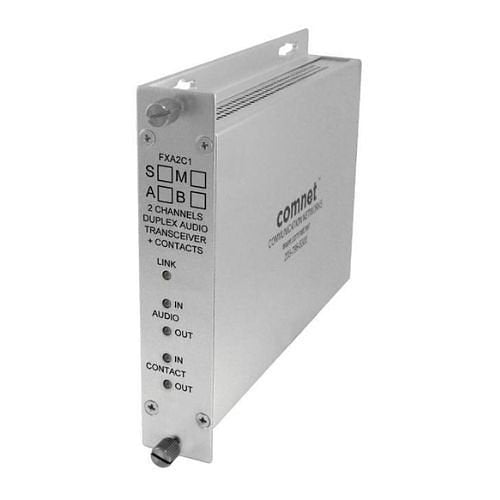

Comnet FRA2C1S1 audio extender receiver, Freestanding, Rack Mount, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FRA2C1S1 is an audio extender receiver from the FTA/FRA2C1(M,S)1 range.
The Comnet FTA/FRA2C1 Series audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio.
Plugand-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators confirm operational status. Packaged in the exclusive Comnet ComFit housing, these units may be either wall or rack mounted.
Key features
- Automatic Electronic Current Limiting
- Failure Relay Loss of Power Indication
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Standard ComFit models are hot-swappable
If you are matching this to an existing installation, work from the FRA2C1S1 part number rather than the description.
-
Download
- FRA2C1S1 — Product Manual
Specifications
Technical information
Certifications
Environmental conditions
Product information
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FRA2C1S1 |
| Product Series | FTA/FRA2C1(M,S)1 |
| Product Type | Audio Extender Receiver |
Technical information
| Media Type Supported | Optical Fiber |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Operating Temperature (T-T) | -40-60°C |
|---|---|
| Storage Temperature (T-T) | -40-80°C |
Product information
| Mount Type | Freestanding, Rack Mount, Wall Mount |
|---|
