Comnet CLRFE1POEC ethernet-over-coax extender, Rack Mount

Free Delivery
£ 459 97
(Incl. VAT) RRP: £551.96
Save £91.99

About this product

Please note: this is a non-returnable item (excluding faulty goods)

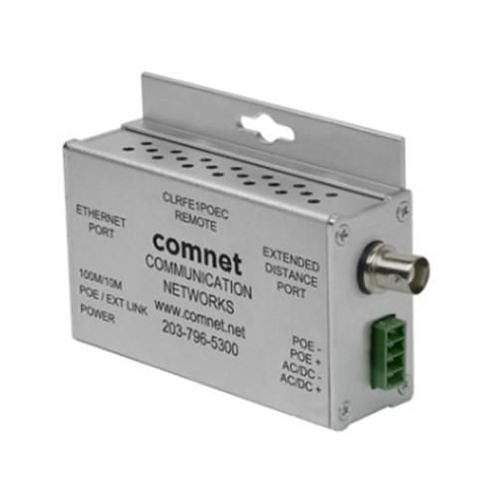

Comnet CLRFE1POEC is an ethernet-over-coax extender from the CL(L,R)FE(X)POE(C,U) range.

The Comnet CopperLine Ethernet over copper CL(L,R)FE(X)POE(C,U) Series supports up to sixteen channels of 10/100Mbps Ethernet with PoE+ Power Injection and Pass-through PoE+ over twisted pair cable (CAT-5, UTP) or over coax. With the ability to connect directly to a PoE+ switch, or the ability to generate PoE+ power with a 48 to 56V input (Power Supply for PoE applications is sold separately) to either the Local or Remote ends, these units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. A complete set includes both a Local and Remote module.

Remote units are available in small package sizes that include one or four channels, and Local modules are available in the same packages as well as a 1RU rack for larger channel counts.

Key features

  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • User-selectable data rate for maximum bandwidth and transmission distance utilization
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over standard UTP or Coaxial cable
  • Status indicating LEDs provide rapid indication of critical operating parameters
  • Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use

If you are matching this to an existing installation, work from the CLRFE1POEC part number rather than the description.

£ 459 97
RRP: £551.96 Save £91.99
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£459.97 Incl. VAT £551.96
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CLRFE1POEC
Product Series
CL(L,R)FE(X)POE(C,U)
Product Type
Network Extender
General information
Maximum Transfer Distance
1524m
Technical information
Maximum Data Transfer Rate
12.5Mbps
Environmental conditions
Operating Relative Humidity (H-H)
90%
Operating Temperature (T-T)
-40-65°C
Storage Temperature (T-T)
-40-80°C
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media & performance
Data Transfer Rate
100Mbps
Network & communication
Networking Standards
IEEE 802.3af, IEEE 802.3at
Physical characteristics
Height
28.00mm
Width
64.00mm
Power description
Input Voltage
56V DC
Power over Ethernet (PoE)
Yes
Product information
Mount Type
Rack Mount
Attributes
Environmental status
Yes
Input Voltage
56V DC
Operating Relative Humidity (H-H)
90%

Specifications

Brand Name Comnet
Manufacturer Part Number CLRFE1POEC
Product Series CL(L,R)FE(X)POE(C,U)
Product Type Network Extender

General information

Maximum Transfer Distance 1524m

Technical information

Maximum Data Transfer Rate 12.5Mbps

Environmental conditions

Operating Relative Humidity (H-H) 90%
Operating Temperature (T-T) -40-65°C
Storage Temperature (T-T) -40-80°C

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Media & performance

Data Transfer Rate 100Mbps

Network & communication

Networking Standards IEEE 802.3af, IEEE 802.3at

Physical characteristics

Height 28.00mm
Width 64.00mm

Power description

Input Voltage 56V DC
Power over Ethernet (PoE) Yes

Product information

Mount Type Rack Mount

Attributes

Environmental status Yes
Input Voltage 56V DC
Operating Relative Humidity (H-H) 90%

Comnet CLRFE1POEC ethernet-over-coax extender

Comnet CLRFE1POEC ethernet-over-coax extender, Rack Mount

Who this is for

For the installer — this is the ethernet-over-coax extender supplied under Comnet part number CLRFE1POEC. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an ethernet-over-coax extender made by Comnet. The part number CLRFE1POEC is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ethernet-over-coax extender is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ethernet-over-coax extender I have been quoted? Check the manufacturer part number CLRFE1POEC against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CLRFE1POEC answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
