Comnet CLFE1EOU network extender, Rail Mount

Free Delivery
£ 298 69
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CLFE1EOU is a network extender from the CLFE range.

The Comnet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power.

These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

Key features

  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • User-selectable data rate for maximum bandwidth and transmission distance utilization.
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Designed and manufactured in the USA
  • Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
  • Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
  • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
  • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Etherne

If you are matching this to an existing installation, work from the CLFE1EOU part number rather than the description.

£ 298 69
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£298.69 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CLFE1EOU
Product Series
CLFE
Product Type
Network Extender
Technical information
Maximum Data Transfer Rate
12.5Mbps
Media Type Supported
Twisted Pair
Certifications
RoHS compliance
Out of Scope
WEEE compliance
Compliant
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media & performance
Network Technology
100Base-TX, 10Base-T
Network & communication
Ethernet Technology
10 Mbps (Ethernet)
Physical characteristics
Form Factor
Rail Mount
Height
28.00mm
Width
64.00mm
Power description
Plug/Connector Type
BNC
Power Source
PoE (Power over Ethernet)
Product information
Length
83.80mm
Mount Type
DIN Rail Mount
Miscellaneous
Environmental status
Yes
Attributes
Package Contents
1 Channel Ethernet over UTP with Pass-through PoE; Power Supply
Power Source
PoE (Power over Ethernet)

Specifications

Brand Name Comnet
Manufacturer Part Number CLFE1EOU
Product Series CLFE
Product Type Network Extender

Technical information

Maximum Data Transfer Rate 12.5Mbps
Media Type Supported Twisted Pair

Certifications

RoHS compliance Out of Scope
WEEE compliance Compliant

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Media & performance

Network Technology 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 10 Mbps (Ethernet)

Physical characteristics

Form Factor Rail Mount
Height 28.00mm
Width 64.00mm

Power description

Plug/Connector Type BNC
Power Source PoE (Power over Ethernet)

Product information

Length 83.80mm
Mount Type DIN Rail Mount

Miscellaneous

Environmental status Yes

Attributes

Package Contents 1 Channel Ethernet over UTP with Pass-through PoE; Power Supply
Power Source PoE (Power over Ethernet)

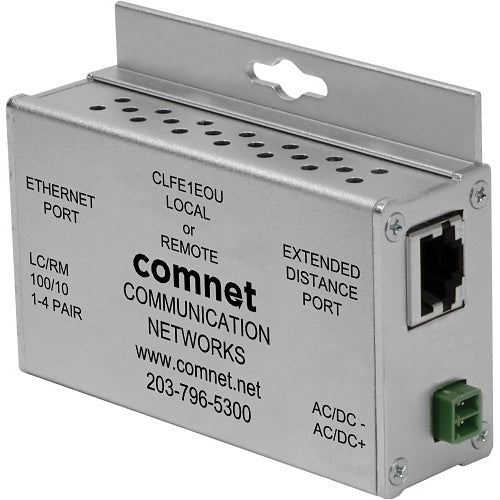

Comnet CLFE1EOU network extender

Comnet CLFE1EOU network extender, Rail Mount

Who this is for

For the installer — this is the network extender supplied under Comnet part number CLFE1EOU. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network extender made by Comnet. The part number CLFE1EOU is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network extender is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network extender I have been quoted? Check the manufacturer part number CLFE1EOU against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CLFE1EOU answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
