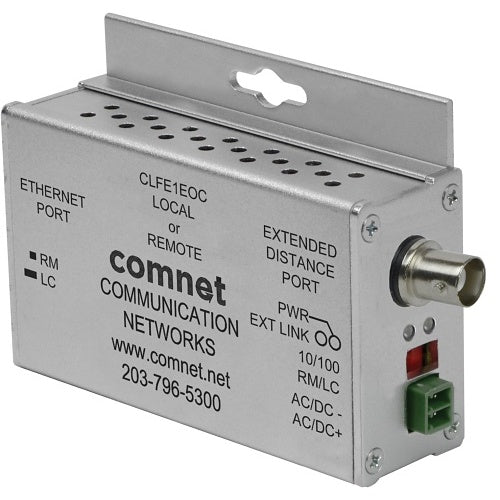

Comnet CLFE1EOC over coax converter
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet CLFE1EOC is an over coax converter from the CLFE range.
The Comnet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP) or coaxial cable. The single-channel units may be powered by a PoE switch. Four, eight, and sixteen-channel units operate from local power.
These units provide the ultimate flexibility for extending a powered device (PD) over long-distance copper. DIP switches are provided for user selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Key features
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
If you are matching this to an existing installation, work from the CLFE1EOC part number rather than the description.
-
Download
- CLFE1EOC — User Manual
Specifications
Technical information
Interfaces/ports
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CLFE1EOC |
| Product Series | CLFE |
| Product Type | Network Extender |
Technical information
| Maximum Data Transfer Rate | 12.5Mbps |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
Physical characteristics
| Height | 28.00mm |
|---|---|
| Width | 64.00mm |
Product information
| Length | 83.80mm |
|---|
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Package Contents | 1 Channel Ethernet over Coaxial Cable with Pass-through PoE; Power Supply |
|---|
