Comnet CLFE4EOU over UTP extender
About this product
Please note: this is a non-returnable item (excluding faulty goods)

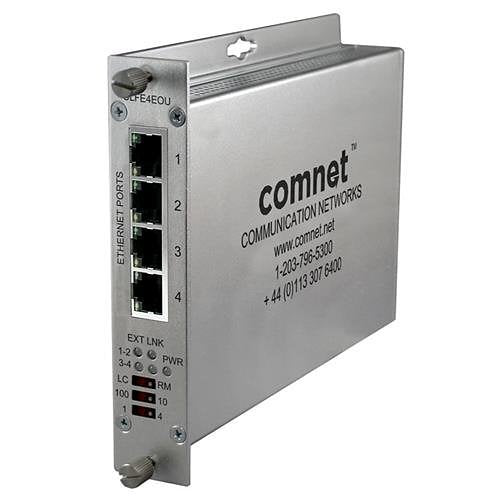

Comnet CLFE4EOU is an over UTP extender from the CLFE range.
The Comnet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power.
These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Key features
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Etherne
If you are matching this to an existing installation, work from the CLFE4EOU part number rather than the description.
Specifications
Interfaces/ports
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CLFE4EOU |
| Product Series | CLFE |
| Product Type | Network Extender |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Network & communication
| Ethernet Technology | 10 Mbps (Ethernet) |
|---|
Physical characteristics
| Width | 343.00mm |
|---|
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Length | 154.90mm |
|---|
Miscellaneous
| Environmental certification | CE, cULus |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12V DC |
