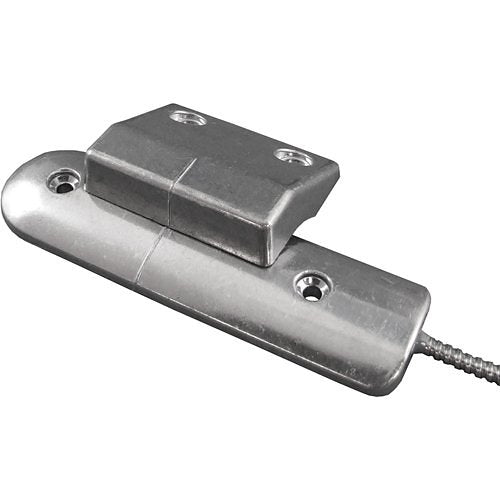

CQR RS002/ALI/1M/G2/A magnetic contact, Silver

Visit Burglar & Intruder Alarms
£ 24 50
(Incl. VAT) RRP: £29.40
Save £4.90

About this product

Please note: this is a non-returnable item (excluding faulty goods)

CQR RS002/ALI/1M/G2/A is a magnetic contact.

This page covers CQR part RS002/ALI/1M/G2/A. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover application/usage, connectivity technology, contact form among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

  • Application/Usage: Door. This is the figure the record carries for this exact part number.
  • Connectivity Technology: Wired. Parts in the same family can differ here, so check the code rather than the family.
  • Contact Form: Form A. It is listed for this part number, not for the range as a whole.
  • Standard Gap: 50.00mm. Where your specification names a figure, compare it against this one before ordering.
  • RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
  • Security Grade: Grade 2. This is the figure the record carries for this exact part number.
  • WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Where your specification names a figure, compare it against this one before ordering.
  • Colour: Silver. It is listed for this part number, not for the range as a whole.
  • Contact Material: Rhodium. This is the figure the record carries for this exact part number.
  • Height: 15.00mm. Parts in the same family can differ here, so check the code rather than the family.
  • Material: Aluminium. It is listed for this part number, not for the range as a whole.
  • Width: 50.00mm. Where your specification names a figure, compare it against this one before ordering.
  • Length: 175.00mm. Parts in the same family can differ here, so check the code rather than the family.
  • Additional Information: Connections: 8 Core x 7/0.2 Copper Cable Reed Switches: 1 Environmental Class III. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the magnetic contact role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

  • Typical application: Door.

If you are matching this to an existing installation, work from the RS002/ALI/1M/G2/A part number rather than the description.

£ 24 50
RRP: £29.40 Save £4.90
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Price
£24.50 Incl. VAT £29.40
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
CQR
Manufacturer Part Number
RS002/ALI/1M/G2/A
Product Type
Magnetic Contact
General information
Application/Usage
Door
Technical information
Connectivity Technology
Wired
Contact Form
Form A
Standard Gap
50.00mm
Certifications
RoHS compliance
Compliant
Security Grade
Grade 2
WEEE compliance
Compliant
Physical characteristics
Colour
Silver
Contact Material
Rhodium
Height
15.00mm
Material
Aluminium
Width
50.00mm
Power description
Input Current
500mA
Input Voltage
12V DC
Power Source
DC Power
Product information
Contact Type
SPST (Single Pole Single Throw)
Length
175.00mm
Miscellaneous
Additional Information
Connections: 8 Core x 7/0.2 Copper Cable Reed Switches: 1 Environmental Class III
Attributes
Contact Type
SPST (Single Pole Single Throw)
Features
Heavy Duty, Pre-resistored, Tamper Integrity Loop
Input Voltage
12V DC
Power Source
DC Power
Additional Information
Connections: 8 Core x 7/0.2 Copper Cable Reed Switches: 1 Environmental Class III
Input Current
500mA
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name CQR
Manufacturer Part Number RS002/ALI/1M/G2/A
Product Type Magnetic Contact

General information

Application/Usage Door

Technical information

Connectivity Technology Wired
Contact Form Form A
Standard Gap 50.00mm

Certifications

RoHS compliance Compliant
Security Grade Grade 2
WEEE compliance Compliant

Physical characteristics

Colour Silver
Contact Material Rhodium
Height 15.00mm
Material Aluminium
Width 50.00mm

Power description

Input Current 500mA
Input Voltage 12V DC
Power Source DC Power

Product information

Contact Type SPST (Single Pole Single Throw)
Length 175.00mm

Miscellaneous

Additional Information Connections: 8 Core x 7/0.2 Copper Cable Reed Switches: 1 Environmental Class III

Attributes

Contact Type SPST (Single Pole Single Throw)
Features Heavy Duty, Pre-resistored, Tamper Integrity Loop
Input Voltage 12V DC
Power Source DC Power
Additional Information Connections: 8 Core x 7/0.2 Copper Cable Reed Switches: 1 Environmental Class III
Input Current 500mA

features

CQR RS002/ALI/1M/G2/A magnetic contact

CQR RS002/ALI/1M/G2/A magnetic contact, Silver

Who this is for

For the installer — this is the magnetic contact supplied under CQR part number RS002/ALI/1M/G2/A. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a magnetic contact made by CQR. The part number RS002/ALI/1M/G2/A is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this magnetic contact is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact magnetic contact I have been quoted? Check the manufacturer part number RS002/ALI/1M/G2/A against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against RS002/ALI/1M/G2/A answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
