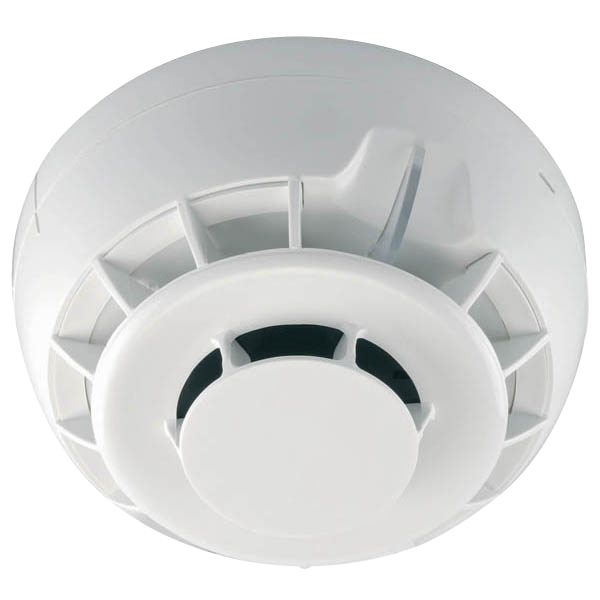

ESP CSD2 Combined Optical Smoke & Fixed Heat Detector
£
17
95
(Incl. VAT)
3 Years Warranty
Combined Optical Smoke & Fixed Heat Detector
About this product
About this product
The ESP CSD2 is a Combined Optical Smoke & Fixed Heat Detector.
Key Features
- Combined optical smoke & rate of rise detector
- Auto compensation
- Digital processing algorithm
- LED indication with 360° visibility
- Genuine ESP fixed heat detector supplied by WME
-
Download
- CSD2 Tech Sheet
£
17
95
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø102 x 48 (Including Base)
Test Facility
Simulated Smoke/ Heat
Class
A1R
Weight (Kg)
0.17 (Including Base)
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.4 - 2.0 (Twin)
Current @ 24V (mA)
49
Standby Current @ 24v (µA)
<60
Wiring Type
4-Wire Conventional
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Dimensions
Dimensions (mm)
ø102 x 48 (Including Base)
Specifications
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|---|
| Test Facility | Simulated Smoke/ Heat |
| Class | A1R |
| Weight (Kg) | 0.17 (Including Base) |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Current @ 24V (mA) | 49 |
| Standby Current @ 24v (µA) | <60 |
| Wiring Type | 4-Wire Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
Dimensions
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|
Combined Optical Smoke & Fixed Heat Detector features
ESP CSD2 Combined Optical Smoke & Fixed Heat Detector
