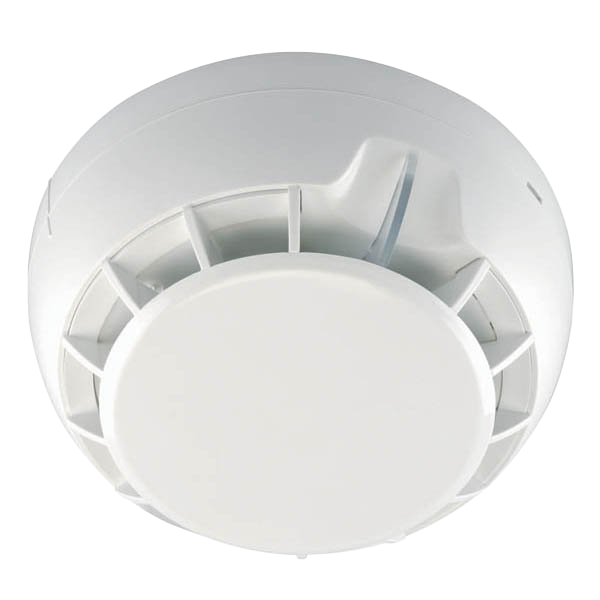

ESP PSD212 Optical Smoke Detector, 12V
About this product
The ESP PSD212 is an Optical Smoke Detector, 12V.
Key Features
- Auto temperature compensation
- Digital processing algorithm
- Low profile design
- LED indication with 360° visibility
- Genuine ESP fire detector supplied by WME
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's fire detector products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The ESP PSD212 is a practical choice wherever a reliable fire detector is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | ESP |
| Product code | PSD212 |
| Dimensions (mm) | ø102 x 48 (Including Base) |
| Colour | White |
| Materials | Housing: ABS |
| Test Facility | Simulated Smoke |
| Weight (Kg) | 0.16 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Current @ 12V (mA) | 29 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Standby Current @ 12V (µA) | <50 |
| Wiring Type | Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| GTIN | 5060224101667 |
| Commodity Code | 8531103000 |
